5-inch FPV freestyle motor

T-Motor Velox V2307 V2

The 2307 of T-Motor's Velox Veloce V2 range, for 5-inch racing, freestyle and cinematic flying, with a one-piece bell, a titanium shaft and N52 arc magnets: 1950KV for 6S, 2550KV for 4S–5S.

5-inch racing, freestyle and cinematic flying
6S (1950KV) or 4S–5S (2550KV)
T-Motor 5-inch tri-blade props

Drawing the 3D model…

Throttle60%

The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2307 motor drawn from T-Motor’s published sizes, not its exact design. No-load speed is KV × 22.2 V, a nominal pack for this version. T-Motor publishes no bench data for it.

Version

1950KV6S2550KV4S–5S

T-Motor pitches the Velox Veloce for 5-inch racing, freestyle and cinematic flying.

Weight: 35.1 g; with leads, 31.3 g without; 2550KV 35.5 g and 31.7 g

from $17.50a motor at T-Motor

A set of four: $70.00

Price seen Oct 19, 2026. Plain links: we earn nothing from them.

What you get for $17.50

One-piece bell
T-Motor's Unibell: the bell is a single part, which T-Motor says makes the motor more durable.
Source: T-Motor product page
Titanium shaft
T-Motor says the titanium shaft is lighter and more durable.
Source: T-Motor product page
N52 arc magnets
Curved N52 magnets, which T-Motor calls more powerful. It lists them, with the titanium shaft and a total weight 2–3 g lower, as the V2's main upgrades.
Source: T-Motor product page
Part of a four-size range
The Velox Veloce V2 comes in 2306.5, 2307, 2207.5 and 2208 and in three colours; the 2307 is the rose-gold one.
Source: T-Motor product page

What to pair it with

Our reading of T-Motor’s numbers, so your build matches what the motor was tested with.

ESC: Peak current over 60 s is 40.4 A for the 1950KV and 36 A for the 2550KV, by T-Motor's spec tables. Ligpower pairs it with T-Motor's F55A PRO II 6S 4-in-1. (T-Motor spec tables, Ligpower product page)
Props: Ligpower names T-Motor's P49436 or T5143S. (Ligpower product page)
Battery: 6S for the 1950KV, 4S–5S for the 2550KV. (T-Motor spec tables)
Frame: 5-inch quads, per T-Motor. Four M3 holes on a 16 mm circle. (Ligpower product page, T-Motor drawing)

Where to buy

T-Motorthe maker's store (Tmotorhobby); same price for both KVs
$17.50seen Oct 19, 2026
Visit
LigpowerT-Motor's Ligpower store; 1950KV or 2550KV, sold as a 15–20-day pre-order
$17.50seen Oct 19, 2026
Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

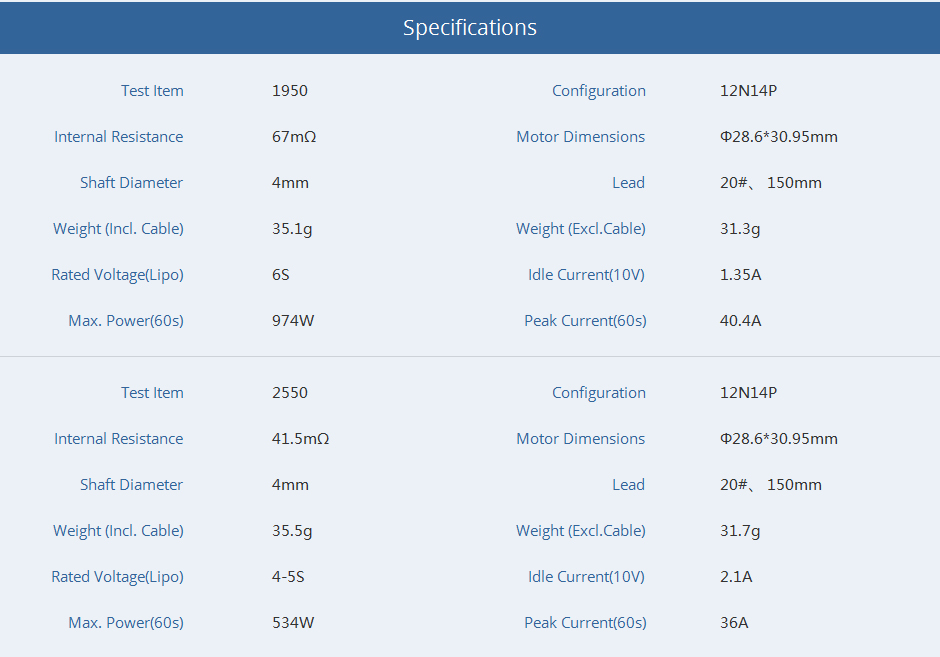

Full specs

Spec	Value	Source
KV	1,950 rpm/V (also 2550KV)	T-Motor spec tables
Stator	23 × 7 mm (2307)	T-Motor product page
Configuration	12N14P (12 stator slots, 14 magnet poles)	T-Motor spec tables
Battery	6S LiPo (2550KV: 4S–5S)	T-Motor spec tables
Weight	35.1 g (with leads, 31.3 g without; 2550KV 35.5 g and 31.7 g)	T-Motor spec tables
Dimensions	Φ28.6 × 30.95 mm (30.95 mm is the full length, shaft included)	T-Motor spec tables, T-Motor drawing
Shaft	4 mm, titanium; stands 12 mm above the bell, the last 7 mm threaded (titanium per T-Motor's product text (S1); the length and thread from its drawing (S2). T-Motor gives one diameter without saying which part of the shaft it is)	T-Motor spec tables, T-Motor drawing, T-Motor product page
Mounting	4 × M3 holes on a 16 mm circle (16 × 16)	T-Motor drawing
Bell	one piece (Unibell)	T-Motor product page
Magnets	N52 arc magnets	T-Motor product page
Internal resistance	67 mΩ (2550KV 41.5 mΩ)	T-Motor spec tables
Idle current	1.35 A (at 10 V; 2550KV 2.1 A)	T-Motor spec tables
Peak current	40.4 A (for 60 s; 2550KV 36 A. Each matches a full-throttle row of T-Motor's bench tables for this motor, which are left out of this record (see the model notes))	T-Motor spec tables
Max power	974 W (for 60 s; 2550KV 534 W. Each matches a full-throttle row of T-Motor's bench tables for this motor, which are left out of this record (see the model notes))	T-Motor spec tables
Leads	20 AWG, 150 mm	T-Motor spec tables
In the box	1 × motor, 1 × parts bag (prop nut, screws, washer and O-ring)	T-Motor test report

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

Bell. One piece (Unibell), 28.6 mm across, rose gold with a faceted outer surface; six spokes in the top, each forking near the rim, round a knurled hub. (T-Motor product page, T-Motor drawing)
Shaft. Titanium, 4 mm by T-Motor's table, with 7 mm of thread; it stands 12 mm above the bell. (T-Motor product page, T-Motor spec tables, T-Motor drawing)
Base. Rose gold, with four M3 holes on a 16 mm circle; 20 AWG leads, 150 mm long. (T-Motor product page, T-Motor drawing, T-Motor spec tables)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1950KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

Battery	Volts	No-load rpm (KV × V)	Electrical frequency	ESC steps per second
4S nominal	14.8	28,860	3,367 Hz	20,202
4S full	16.8	32,760	3,822 Hz	22,932
6S nominal	22.2	43,290	5,051 Hz	30,303
6S full	25.2	49,140	5,733 Hz	34,398

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from T-Motor’s published sizes: the 23 × 7 mm stator, 28.6 mm bell, 18.95 mm height, 16 mm mounting circle and 12 teeth and 14 magnets. Anything T-Motor doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
