T-Motor Velox V2306 V2

What it pulls

T-Motor’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $13.90

• Two windings

  1950KV rated for 5S–6S, 2400KV for 4S.

  Source: T-Motor drawing and 1950KV specs

• Arc magnets

  T-Motor says it optimized the curved magnets for stronger magnetism and smoother running.

  Source: T-Motor product page

• Built for freestyle

  T-Motor says it improved the motor's durability for the hard moves of freestyle.

  Source: T-Motor product page

• Three colours

  Sold in emerald green, camo silver and ice blue.

  Source: T-Motor product page

• Full bench data

  Thrust, current, RPM, power and motor temperature in 5% steps from 50% throttle, on four T-Motor props for each KV.

  Source: T-Motor specs and test report

What to pair it with

Our reading of T-Motor’s numbers, so your build matches what the motor was tested with.

ESC

Peak current over 60 s is 38.1 A for the 1950KV and 34.1 A for the 2400KV. T-Hobby pairs it with T-Motor's V45A V2 4-in-1. (T-Motor drawing and 1950KV specs, T-Motor specs and test report, T-Hobby product page)

Props

T-Motor benched both KVs on its T5143S, T5146, T5147 and T5150. At full throttle on 24 V the 1950KV pulls 1656 g on the T5150 and 1486 g on the T5143S. T-Hobby recommends the T5146. (T-Motor specs and test report, T-Hobby product page)

Battery

5S–6S for the 1950KV, 4S for the 2400KV. T-Hobby suggests a 4S 1550 mAh or 6S 1300 mAh 120C pack. (T-Motor drawing and 1950KV specs, T-Motor specs and test report, T-Hobby product page)

Frame

5-inch quads of about 700 g on 4S or 720 g on 6S, per T-Hobby. Four M3 holes on a 16 mm circle. (T-Hobby product page, T-Motor drawing and 1950KV specs)

Where to buy

• T-Motorthe maker's store (Tmotorhobby)
  $13.99seen Oct 19, 2026
  Visit
• T-HobbyT-Motor's hobby-brand store; price shown for 1950KV
  $13.90seen Oct 19, 2026
  Visit
• RaceDayQuads1950KV
  price on the store’s page
  Visit
• RaceDayQuads2400KV
  price on the store’s page
  Visit
• Pyrodrone1950KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

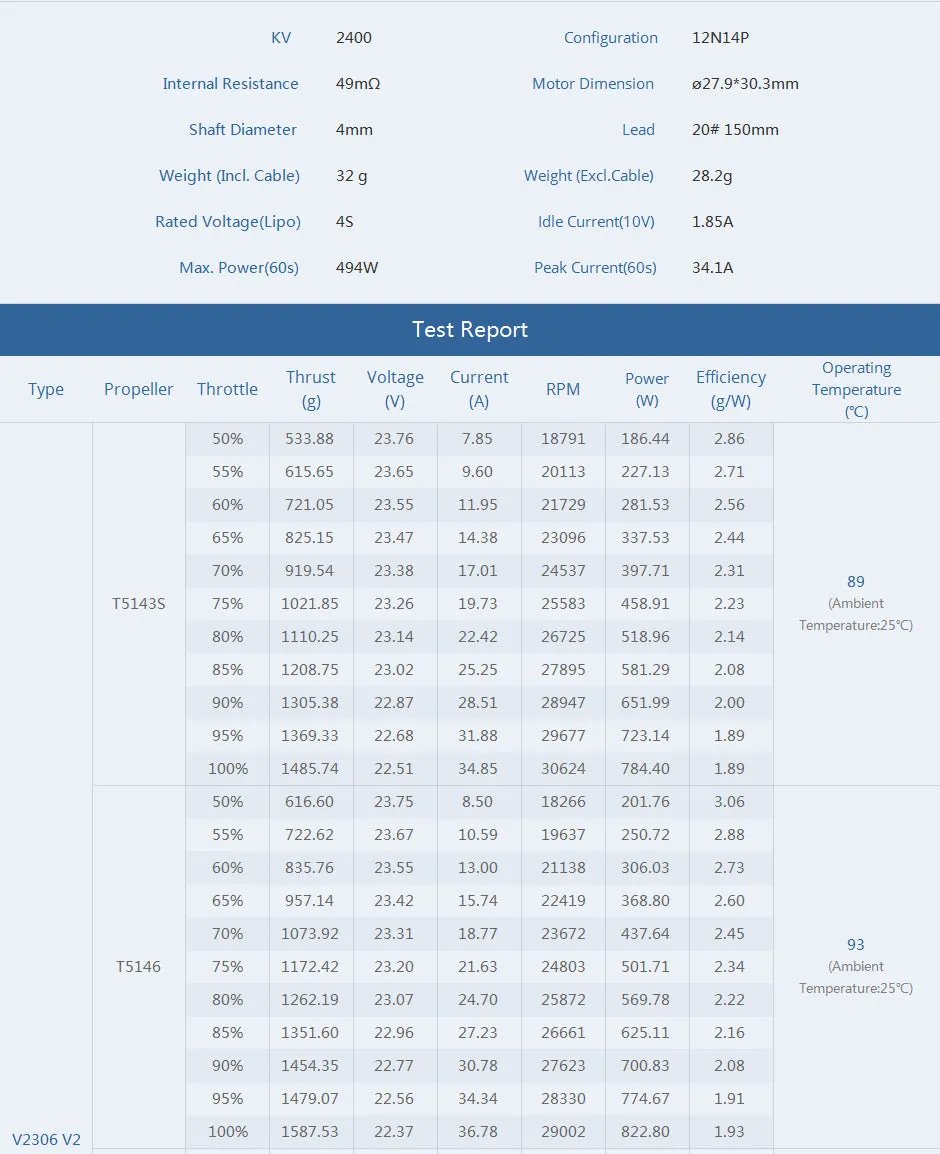

Bench data

Redrawn from T-Motor’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

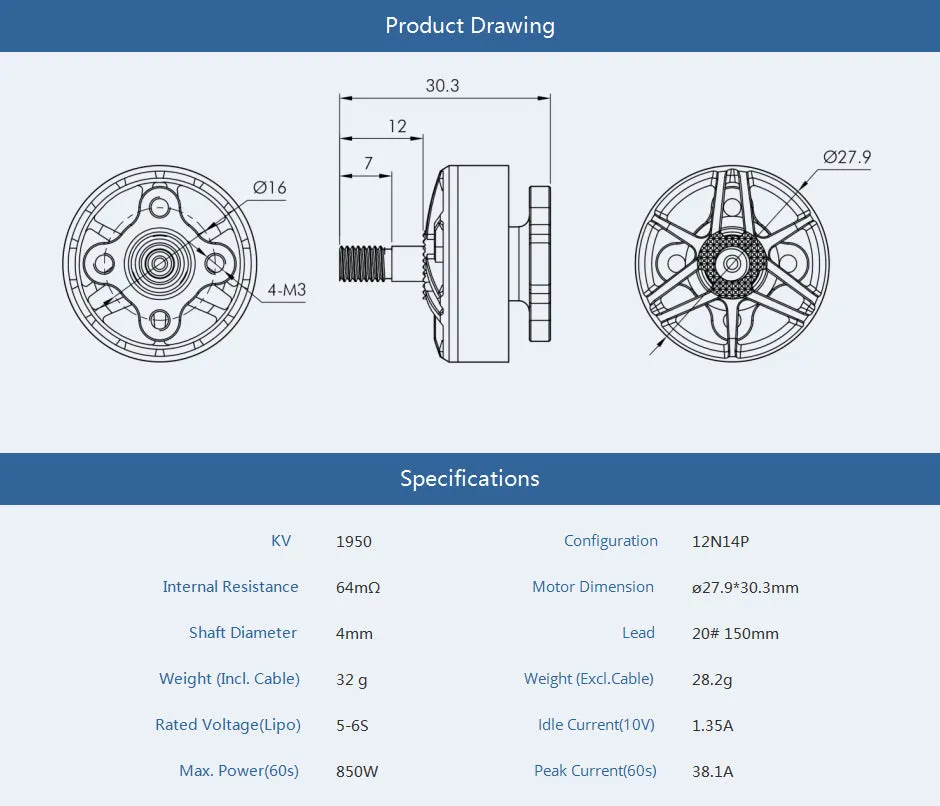

• Bell. 27.9 mm across, 30.3 mm long with the shaft, with five spokes in the top, each split in two, round a knurled hub. (T-Motor drawing and 1950KV specs)
• Shaft. 4 mm by T-Motor's table, standing 12 mm above the bell; the last 7 mm is threaded. (T-Motor drawing and 1950KV specs)
• Magnets. Curved magnets forming 14 poles round a 12-slot stator. (T-Motor product page)
• Base. Four M3 holes on a 16 mm circle; three 20 AWG leads, 150 mm long. (T-Motor drawing and 1950KV specs)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1950KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from T-Motor’s published sizes: the 23 × 6 mm stator, 27.9 mm bell, 18.3 mm height, 16 mm mounting circle and 12 teeth and 14 magnets. Anything T-Motor doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
