T-Motor F1303

What it pulls

T-Motor’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $15.90

• Quiet by design

  T-Motor says a customised de-noising magnet makes it quieter, for smooth, soft flight and low noise indoors.

  Source: T-Motor product page

• 6.1 g

  6.1 g with leads, for 3-inch toothpicks and light 3-inch frames.

  Source: T-Motor drawing and specs, T-Motor product page

• 177 g on 3S

  At full throttle at about 11.7 V it pulled 177 g at 7.45 A on an HQ3018 and 151 g at 7.18 A on a GF2540.

  Source: T-Motor specs and test report

What to pair it with

Our reading of T-Motor’s numbers, so your build matches what the motor was tested with.

ESC

Peak current over 60 s is 7.45 A, the full-throttle draw on the HQ3018. (T-Motor specs and test report)

Props

T-Motor benched it on an HQ3018 and a GF2540; at half throttle on 3S they pulled 66 g and 64 g. (T-Motor specs and test report)

Battery

2S–3S; T-Motor benched it at about 11.9 V. (T-Motor specs and test report)

Frame

3-inch toothpicks and light 3-inch frames, per T-Motor. Four M2 holes on a 9 mm circle. (T-Motor product page, T-Motor drawing and specs)

Where to buy

• T-Motorthe maker's store (Tmotorhobby)
  $15.90seen Oct 19, 2026
  Visit
• Ligpower (T-Motor)T-Motor's UAV-power store; pre-sale, ships in 15–20 days
  $15.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

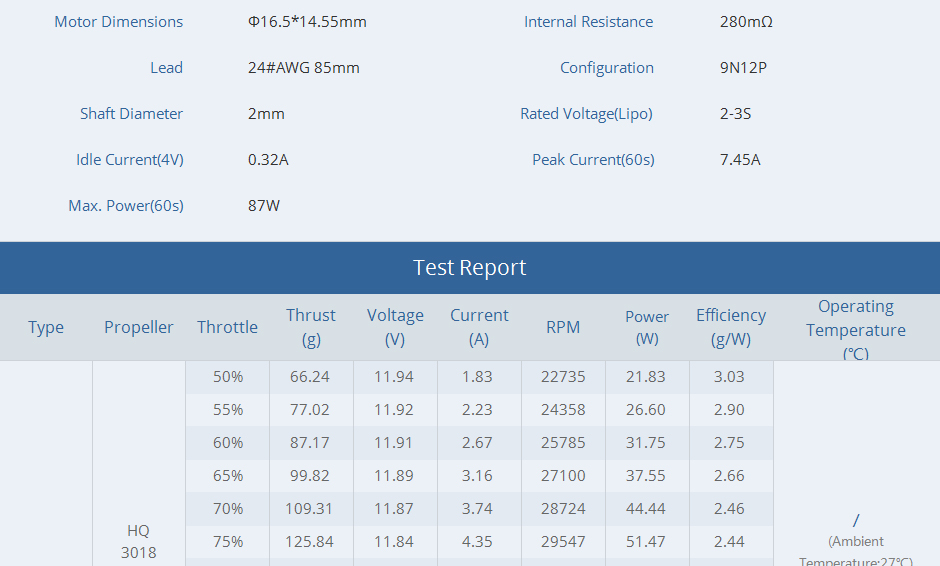

Bench data

Redrawn from T-Motor’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. 16.5 mm across, black, with a gold-anodised band round the bell just below the top, and a three-spoke top. (T-Motor drawing and specs, T-Motor product page)
• Shaft. 2 mm, standing 4.5 mm above the bell, with four M2 holes on a 5 mm circle round it for screw-on props. (T-Motor drawing and specs)
• Magnets. Customised de-noising magnets, which T-Motor says make it smooth and soft. (T-Motor product page)
• Base. Black, with four M2 holes on a 9 mm circle; 24 AWG leads, 85 mm long. (T-Motor drawing and specs, T-Motor specs and test report)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 5000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.

About the 3D model

A generic outrunner drawn from T-Motor’s published sizes: the 13 × 3 mm stator, 16.5 mm bell, 10.05 mm height, 2 mm shaft, 9 mm mounting circle and 9 teeth and 12 magnets. Anything T-Motor doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. T-Motor: F1303 5000KV product page on its Tmotorhobby store (description, feature images, product photos, price; drawing, spec table, test report and contents are images on the page). Retrieved Oct 19, 2026.
2. T-Motor: F1303 product drawing and the start of the spec table, continued on the next image on the product page (S1). Retrieved Oct 19, 2026.
3. T-Motor: F1303 spec table (continued) and test report, this image and the next two on the product page (S1), the last with the contents: HQ3018 and GF2540 props at about 11.9 V, 50% to 100% throttle in 5% steps. Columns as T-Motor gives them: thrust in g, voltage measured per row, current, RPM, power, efficiency; no motor temperature given (ambient 27 °C). Retrieved Oct 19, 2026.
4. T-Motor (Ligpower, its UAV-power brand): T-HOBBY F1303 product page (description, specification and test data as text, the same as S2 and S3; drawing; price). Retrieved Oct 19, 2026.
