T-Motor Black Bird V2.0 2207

What it pulls

T-Motor’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get

• Two windings, one weight

  1950KV for 6S and 2800KV for 4S, both 33.4 g with leads, from T-Motor's Champion Co-brand range.

  Source: T-Motor drawing, specs and test report, T-Motor product page

• Bench data on five props

  T-Motor tested each KV on its T4943, T5143S, T5146, T5147 and T5150 tri-blades. At full throttle the 1950KV pulled 1462.12–1659.94 g on 6S and the 2800KV 1062.12–1402.99 g on 4S.

  Source: T-Motor drawing, specs and test report

• Rated for a minute at peak

  T-Motor rates the 1950KV at 40 A and 903 W for 60 s, and the 2800KV at 42.4 A and 610 W.

  Source: T-Motor drawing, specs and test report

What to pair it with

Our reading of T-Motor’s numbers, so your build matches what the motor was tested with.

ESC

Peak current over 60 s is 40 A for the 1950KV and 42.4 A for the 2800KV; on T-Motor's bench they drew up to 39.95 A and 42.48 A at full throttle. (T-Motor drawing, specs and test report)

Props

T-Motor tested its T4943, T5143S, T5146, T5147 and T5150 tri-blades. The 1950KV pulled the most on the T5150 (1659.94 g at 39.95 A on 6S); the 2800KV pulled 1402.99 g on the T5150 and 1401.21 g on the T5146 on 4S. (T-Motor drawing, specs and test report)

Battery

6S for the 1950KV, 4S for the 2800KV. (T-Motor drawing, specs and test report)

Frame

5-inch quads: T-Motor's test props are 4.9- and 5.1-inch tri-blades. Four M3 holes, opposite holes 16 mm apart. (T-Motor drawing, specs and test report)

Where to buy

• T-Motorthe maker's store (Tmotorhobby); same price for both KVs, 1950KV out of stock when checked
  $27.90seen Oct 19, 2026
  Visit
• T-HobbyT-Motor's hobby-brand store; sold out when checked
  $27.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from T-Motor’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. 27.5 mm across; black, with a gold-finished top whose spokes run in pairs round a knurled hub. (T-Motor drawing, specs and test report, T-Motor product page)

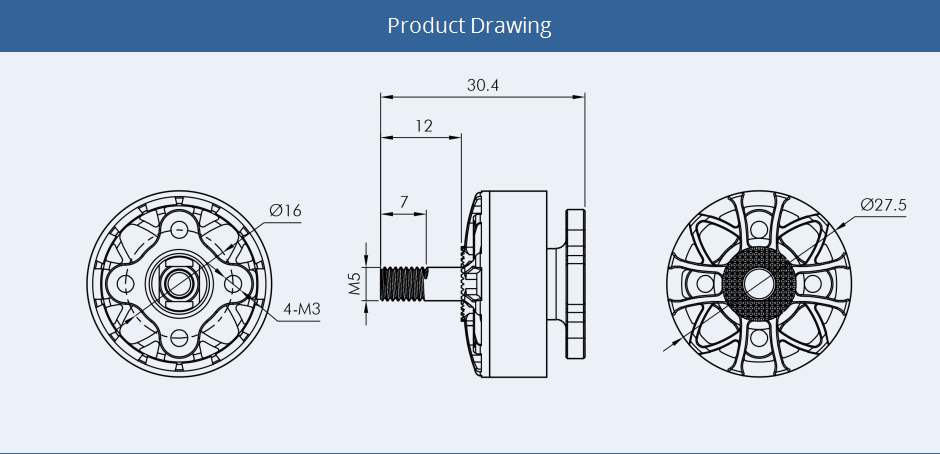

• Shaft. 4 mm by T-Motor's spec table, with an M5 thread above the bell; it stands 12 mm above the bell, the last 7 mm threaded. (T-Motor drawing, specs and test report)
• Base. Black, with four M3 holes 16 mm apart; 20 AWG leads, 150 mm long. (T-Motor drawing, specs and test report, T-Motor product page)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1950KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from T-Motor’s published sizes: the 22 × 7 mm stator, 27.5 mm bell, 18.4 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything T-Motor doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. T-Motor: Black Bird V2.0 product page on its Tmotorhobby store, Champion Co-brand range (product photos, price per KV; drawing, spec table, test report and contents are images on the page, with no other text). Retrieved Oct 19, 2026.
2. T-Motor: Black Bird V2.0 product drawing, spec table for both KVs, test report (five props per KV, one image each) and contents, thirteen images on the product page (S1) starting with this one. Test report columns as T-Motor gives them: throttle, thrust in g, voltage measured per row, current, RPM, power, efficiency; one motor temperature per table, the surface after 1 minute at full throttle. Retrieved Oct 19, 2026.
3. T-Hobby (T-Motor's hobby brand): Black Bird 2207 V2 KV1950/KV2800 FPV Motor product page (name, KV options, price; sold out on 2026-10-19). Retrieved Oct 19, 2026.
