6–8-inch FPV long-range and cinematic motor
MEPS SZ2808
A 56.4 g 2808 for 6–8 inch long-range and cinematic quads in 1350KV and 1900KV; on MEPS's 25.2 V bench the 1350KV pulls 2271 g at 90% throttle on a Gemfan 8040 three-blade, and the 1900KV 2590 g at full throttle on a T-Hobby T6143.
- 6–8 inch long-range and cinematic quads
- 6S (1350KV), 4S or 6S (1900KV)
- 7–8 inch props (1350KV), 6–7 inch props (1900KV)
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2808 motor drawn from MEPS’s published sizes, not its exact design. Thrust, current and power are MEPS’s bench figures for the 8040-3 prop at 25.2 V, read straight across between its throttle steps. Its data starts at 10% throttle.
- Max thrust
- 2,135 g
- 8040-3 prop, 25.2 V
- Weight
- 56.4 g
- ±2 g, with cable, both KVs
- Peak current
- 76.0 A
- full throttle
- Max power
- 1,753 W
- full throttle
from $19.90a motor at MEPS
A set of four: $79.60
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls

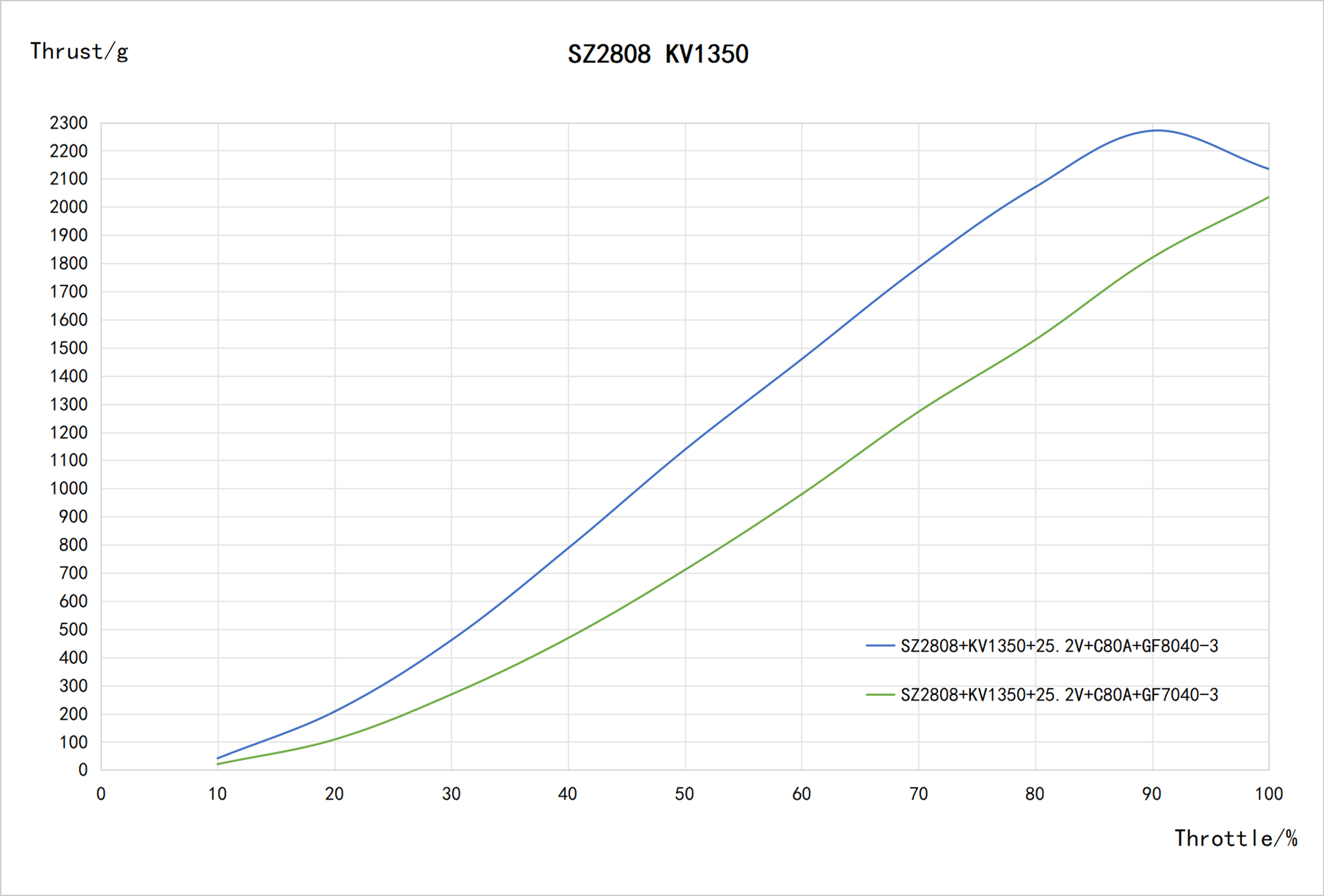

MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the 8040-3: 1,460 g of thrust, 21.3 A, 524 W, 2.80 g per watt.
On your quad
13.1 : 1
Thrust to weight at full throttle: four motors pull 8,540 g with the 8040-3 at 25.2 V.
At 60% throttle they pull 5,840 g, 9.0 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $19.90
2271 g on 8-inch props
On MEPS's 25.2 V bench the 1350KV pulls 2271 g at 90% throttle on a Gemfan 8040 three-blade, drawing 49.2 A; at full throttle it drew 76.0 A for 2135 g.
Source: MEPS 1350KV data test
2590 g on a 6-inch prop
The 1900KV pulls 2590 g at full throttle on a T-Hobby T6143 at 25.2 V, drawing 65.5 A.
56.4 g with 250 mm leads
Both KVs weigh 56.4 g including 250 mm leads.
Source: MEPS product page
Ratchet-shaped top
MEPS says the ratchet-shaped top cover makes the motor more crash resistant.
Source: MEPS product page
What to pair it with
Our reading of MEPS’s numbers, so your build matches what the motor was tested with.
- ESC
- MEPS's peak currents are 75.97 A for the 1350KV (Gemfan 8040, 25.2 V) and 65.45 A for the 1900KV (T6143, 25.2 V); its thrust charts name a C80A ESC. (MEPS product page, MEPS 1350KV thrust chart, MEPS 1900KV thrust chart)
- Props
- MEPS tested the 1350KV on Gemfan 8040 and 7040 three-blades, and the 1900KV on a Gemfan 7040 and T-Hobby's T6143 6.1-inch three-blade. (MEPS 1900KV data test, MEPS 1350KV data test, MEPS 1350KV thrust chart, MEPS 1900KV thrust chart)
- Battery
- 6S for the 1350KV; 4S or 6S for the 1900KV, which MEPS tested at 21 V and 25.2 V. (MEPS product page, MEPS 1900KV data test)
- Frame
- Four M3 screws on a 19 mm circle (19 × 19 mm); M3×8 and M3×9 screws come in the box. (MEPS size chart, MEPS product page)
Where to buy
- MEPSthe maker's store; 1 motor in either KV, $75.60 for 4$19.90seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 1,350 rpm/V (also 1900KV) | MEPS product page |
| Stator | 28 × 8 mm (2808) (from the size in MEPS's name) | MEPS product page |
| Configuration | 12N14P (12 stator slots, 14 magnet poles) | MEPS product page |
| Battery | 4S–6S LiPo (MEPS's buying guide puts the 1350KV on 6S and the 1900KV on 4S or 6S) | MEPS product page |
| Weight | 56.4 g (±2 g, with cable, both KVs) | MEPS product page |

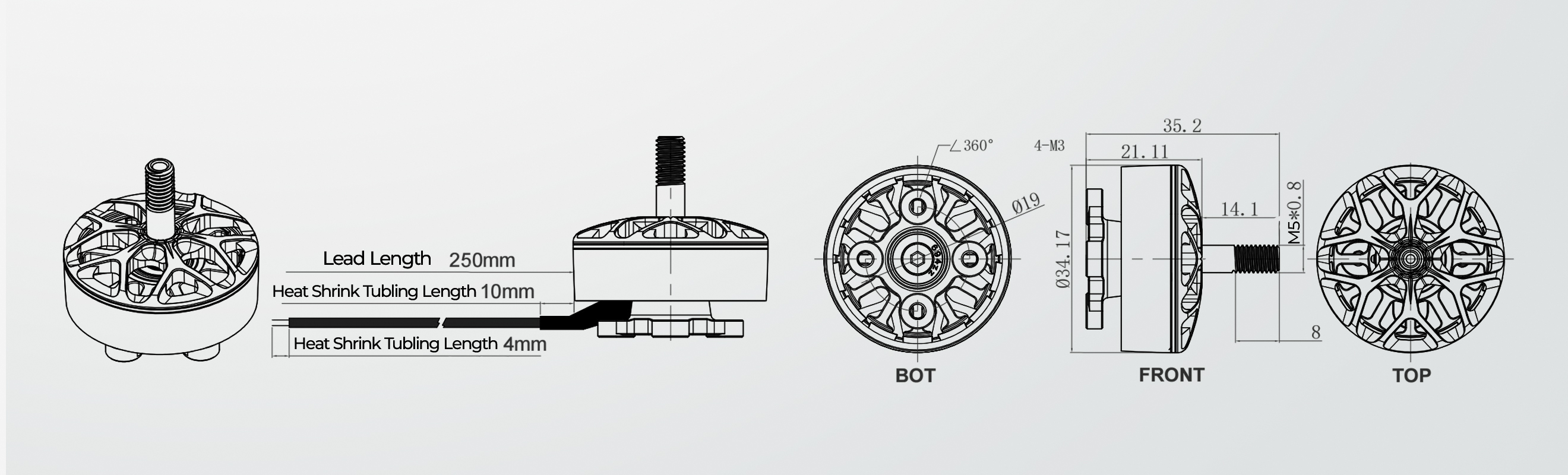

| Dimensions | φ34.17 × 35.2 mm (with shaft); body 21.11 mm tall | MEPS product page, MEPS size chart |
| Shaft | 5 mm, M5 × 0.8 thread 8 mm long, protrudes 14.1 mm | MEPS product page, MEPS size chart |
| Mounting | 4 × M3 holes on a 19 mm circle | MEPS size chart |
| Internal resistance | 59 mΩ (±6 mΩ; 33 ± 4 mΩ for 1900KV) | MEPS product page |
| Idle current | 1.5 A (at most, at 10 V; at most 2.8 A for 1900KV (see modelNotes)) | MEPS product page |
| Peak current | 75.97 A (the full-throttle row of MEPS's 8040-3 test at 25.2 V; 65.45 A for 1900KV, its 6143 test at 25.2 V) | MEPS product page |
| Max power | 1,752 W (1537 W for 1900KV) | MEPS product page |
| Leads | 250 mm (±5 mm) | MEPS product page, MEPS size chart |
| In the box | 4 × M3×8 and 4 × M3×9 hex screws, 1 × M5 × 5.8 mm flange lock nut, 1 × M3×4 button-head hex screw (the page's list; its package photo names M2×6 and M2×7 screws) | MEPS product page |
Bench data
Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

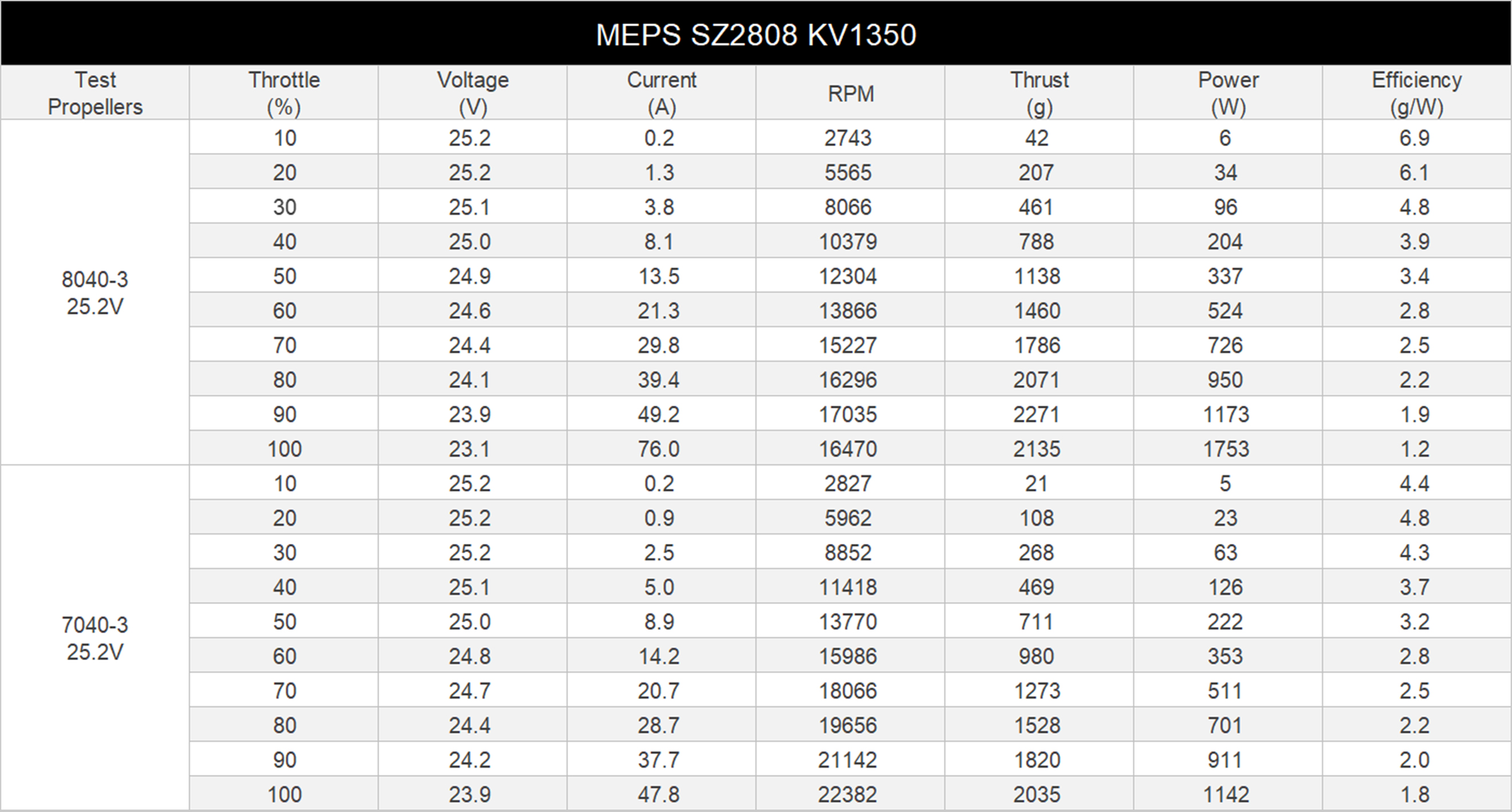

1350KV on 6S, 25.2 V2 props
| Prop | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|---|
| 8040-3 (Gemfan 8040, 3-blade) | 10% | 25.2 | 0.2 | 2743 | 42 | 6 | 6.9 |
| 20% | 25.2 | 1.3 | 5565 | 207 | 34 | 6.1 | |
| 30% | 25.1 | 3.8 | 8066 | 461 | 96 | 4.8 | |
| 40% | 25 | 8.1 | 10379 | 788 | 204 | 3.9 | |
| 50% | 24.9 | 13.5 | 12304 | 1,138 | 337 | 3.4 | |
| 60% | 24.6 | 21.3 | 13866 | 1,460 | 524 | 2.8 | |
| 70% | 24.4 | 29.8 | 15227 | 1,786 | 726 | 2.5 | |
| 80% | 24.1 | 39.4 | 16296 | 2,071 | 950 | 2.2 | |
| 90% | 23.9 | 49.2 | 17035 | 2,271 | 1173 | 1.9 | |
| 100% | 23.1 | 76 | 16470 | 2,135 | 1753 | 1.2 | |
| 7040-3 (Gemfan 7040, 3-blade) | 10% | 25.2 | 0.2 | 2827 | 21 | 5 | 4.4 |
| 20% | 25.2 | 0.9 | 5962 | 108 | 23 | 4.8 | |
| 30% | 25.2 | 2.5 | 8852 | 268 | 63 | 4.3 | |
| 40% | 25.1 | 5 | 11418 | 469 | 126 | 3.7 | |
| 50% | 25 | 8.9 | 13770 | 711 | 222 | 3.2 | |
| 60% | 24.8 | 14.2 | 15986 | 980 | 353 | 2.8 | |
| 70% | 24.7 | 20.7 | 18066 | 1,273 | 511 | 2.5 | |
| 80% | 24.4 | 28.7 | 19656 | 1,528 | 701 | 2.2 | |
| 90% | 24.2 | 37.7 | 21142 | 1,820 | 911 | 2 | |
| 100% | 23.9 | 47.8 | 22382 | 2,035 | 1142 | 1.8 |
Source: MEPS 1350KV data test

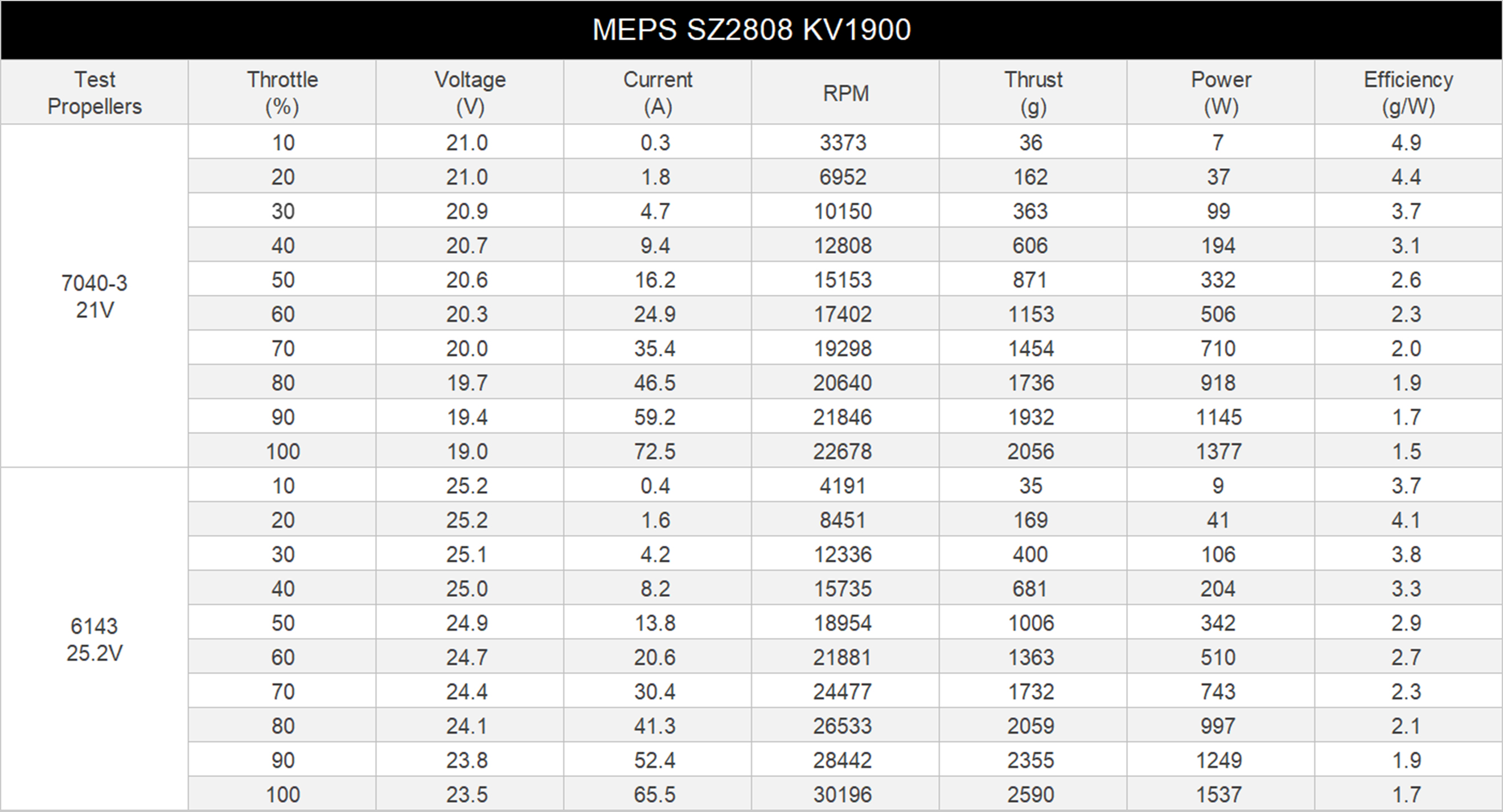

1900KV on 4S–6S2 props
| Prop | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|---|
| 6143 (T-Hobby T6143, 3-blade)at 25.2 V | 10% | 25.2 | 0.4 | 4191 | 35 | 9 | 3.7 |
| 20% | 25.2 | 1.6 | 8451 | 169 | 41 | 4.1 | |
| 30% | 25.1 | 4.2 | 12336 | 400 | 106 | 3.8 | |
| 40% | 25 | 8.2 | 15735 | 681 | 204 | 3.3 | |
| 50% | 24.9 | 13.8 | 18954 | 1,006 | 342 | 2.9 | |
| 60% | 24.7 | 20.6 | 21881 | 1,363 | 510 | 2.7 | |
| 70% | 24.4 | 30.4 | 24477 | 1,732 | 743 | 2.3 | |
| 80% | 24.1 | 41.3 | 26533 | 2,059 | 997 | 2.1 | |
| 90% | 23.8 | 52.4 | 28442 | 2,355 | 1249 | 1.9 | |
| 100% | 23.5 | 65.5 | 30196 | 2,590 | 1537 | 1.7 | |
| 7040-3 (Gemfan 7040, 3-blade)at 21 V | 10% | 21 | 0.3 | 3373 | 36 | 7 | 4.9 |
| 20% | 21 | 1.8 | 6952 | 162 | 37 | 4.4 | |
| 30% | 20.9 | 4.7 | 10150 | 363 | 99 | 3.7 | |
| 40% | 20.7 | 9.4 | 12808 | 606 | 194 | 3.1 | |
| 50% | 20.6 | 16.2 | 15153 | 871 | 332 | 2.6 | |
| 60% | 20.3 | 24.9 | 17402 | 1,153 | 506 | 2.3 | |
| 70% | 20 | 35.4 | 19298 | 1,454 | 710 | 2 | |
| 80% | 19.7 | 46.5 | 20640 | 1,736 | 918 | 1.9 | |
| 90% | 19.4 | 59.2 | 21846 | 1,932 | 1145 | 1.7 | |
| 100% | 19 | 72.5 | 22678 | 2,056 | 1377 | 1.5 |
Source: MEPS 1900KV data test
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Bell. Aluminium, teal (MEPS's "Blue"), with a ratchet-shaped top of six Y-shaped spokes. (MEPS product page, MEPS photo)
- Stator. 28 mm across and 8 mm tall, with 12 slots and 14 poles. (MEPS product page)
- Shaft. 5 mm with an M5 × 0.8 thread 8 mm long, standing 14.1 mm above the bell. (MEPS size chart)
- Base. Four M3 holes on a 19 mm circle. (MEPS size chart)
- Leads. 250 mm long. (MEPS product page, MEPS size chart)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1350KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 19,980 | 2,331 Hz | 13,986 |
| 4S full | 16.8 | 22,680 | 2,646 Hz | 15,876 |
| 6S nominal | 22.2 | 29,970 | 3,497 Hz | 20,979 |
| 6S full | 25.2 | 34,020 | 3,969 Hz | 23,814 |
A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.
About the 3D model
A generic outrunner drawn from MEPS’s published sizes: the 28 × 8 mm stator, 34.17 mm bell, 21.11 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- MEPS: SZ2808 FPV Motor for 6-8inch Long Range Drone 1350KV/1900KV (product page with its specification table, MEPS's own store). Retrieved Oct 19, 2026.
- MEPS: SZ2808 size chart (image on the product page). Retrieved Oct 19, 2026.

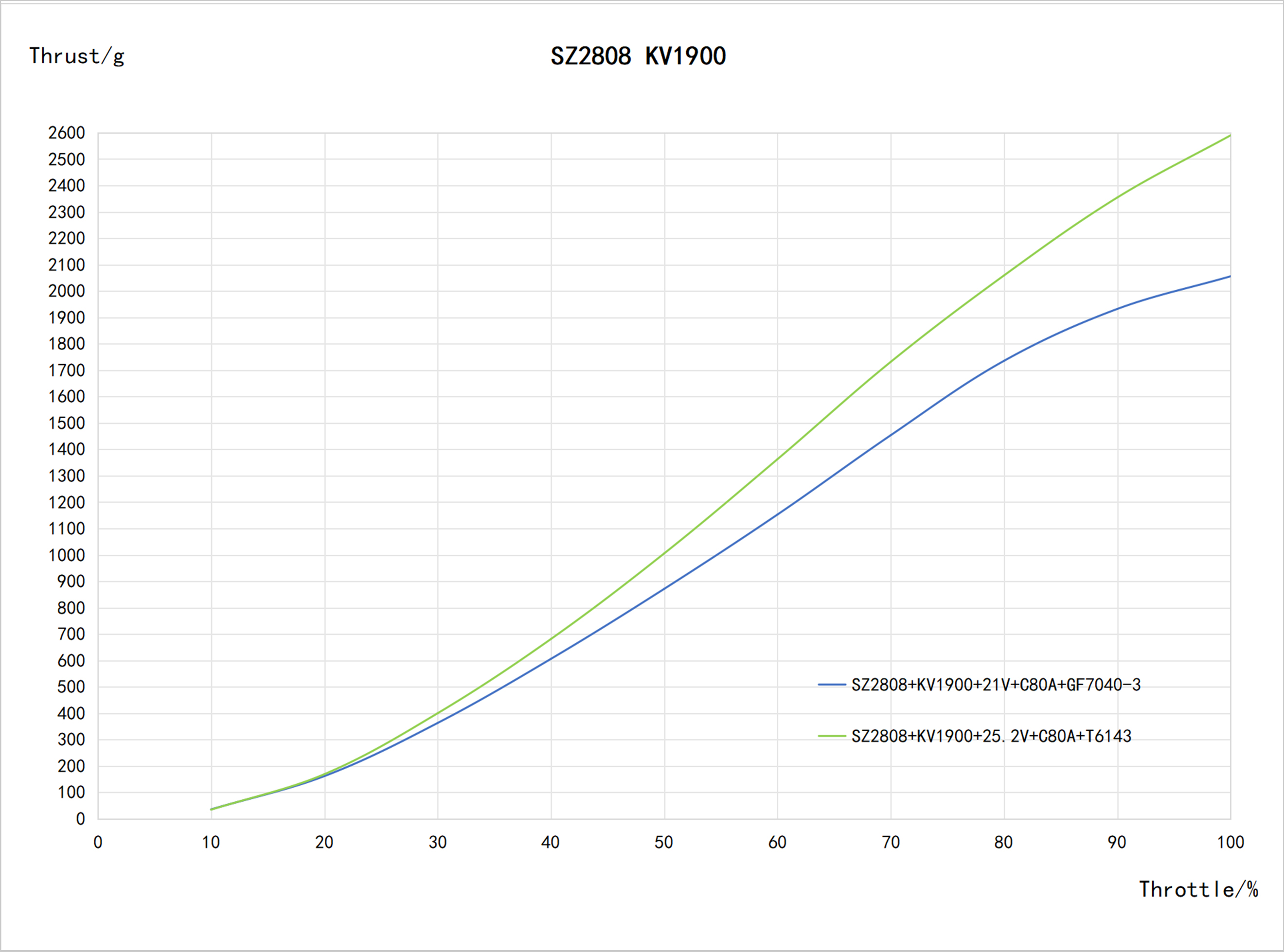

- MEPS: SZ2808 KV1900 data test, 10–100% throttle with a 7040-3 at 21 V and a 6143 at 25.2 V (image on the product page; MEPS's thrust chart names them GF7040-3 and T6143 on a C80A ESC). Retrieved Oct 19, 2026.
