MEPS SZ2306 V2

What it pulls

MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $12.90

• Thrust data for every KV

  Full throttle with the SZ5145: 1734.6 g (1750KV) and 1815.4 g (1950KV) on 25.2 V, 1468.5 g (2450KV) on 16.8 V.

  Source: MEPS data test

• Fewer, thicker arms

  MEPS says V2's bell has fewer but thicker supports than V1, for crash resistance and cooling, and an anti-slip prop mount.

  Source: MEPS product page

• Titanium shaft, NMB bearings

  A TC4 titanium alloy shaft and NMB bearings; MEPS gives a service life of up to 10,000 hours.

  Source: MEPS product page

• Two colours

  Every KV is listed in fluorescent green and cyan.

  Source: MEPS product page

What to pair it with

Our reading of MEPS’s numbers, so your build matches what the motor was tested with.

ESC

MEPS pairs it with 45–60 A ESCs. Its peak currents are 33.1 A (1750KV), 42.7 A (1950KV) and 39.8 A (2450KV), and its full-throttle tests reach 46.3 A (1950KV) and 43.2 A (2450KV) with the SZ5145. (MEPS product page, MEPS spec table, MEPS data test)

Props

MEPS tested its SZ5145 and SZ4942 three-blade props; the SZ5145 pulls 168–184 g more at full throttle, depending on KV. (MEPS data test)

Battery

6S for 1750KV and 1950KV, 4S for 2450KV; MEPS's FAQ also allows 4S for the 1950KV. (MEPS spec table, MEPS product page)

Frame

Four M3 screws on a 16 mm circle (the 16 × 16 pattern of 5-inch frames); M3×8 and M3×9 screws come in the box. (MEPS size chart, MEPS package list)

Where to buy

• MEPSthe maker's store; $51.60 for four
  $12.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. Fewer but thicker structural supports than the first version, which MEPS says strengthens the rotor and helps cooling under load. (MEPS product page)
• Winding. MEPS says V2 rearranges the windings to fit more conductor into the motor than V1. (MEPS product page)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1950KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from MEPS’s published sizes: the 23 × 6 mm stator, 29.3 mm bell, 18.55 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. MEPS: SZ2306 V2 motor for 5 inch freestyle drone 1750KV/1950KV/2450KV (product page, MEPS's own store). Retrieved Oct 19, 2026.

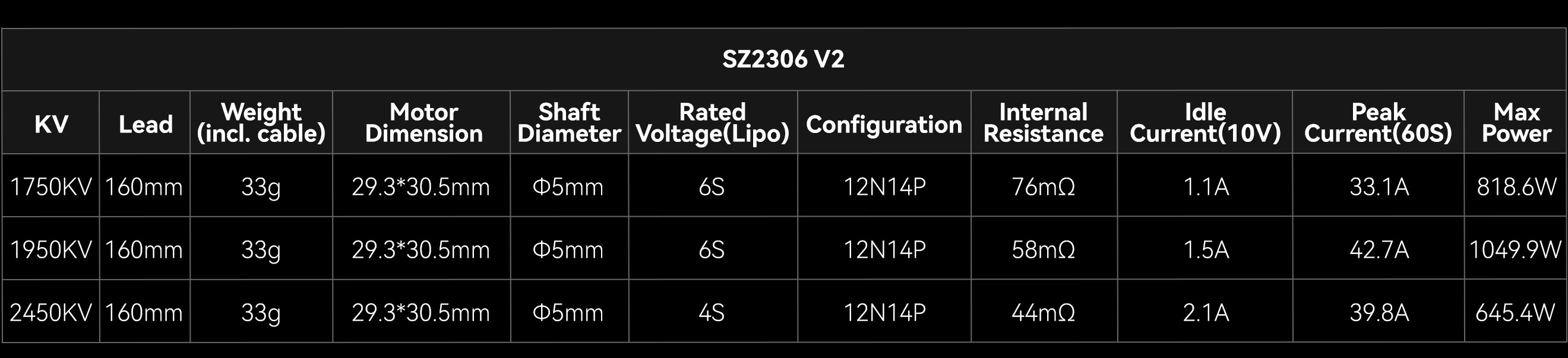

2. MEPS: SZ2306 V2 specification table (image on the product page). Retrieved Oct 19, 2026.

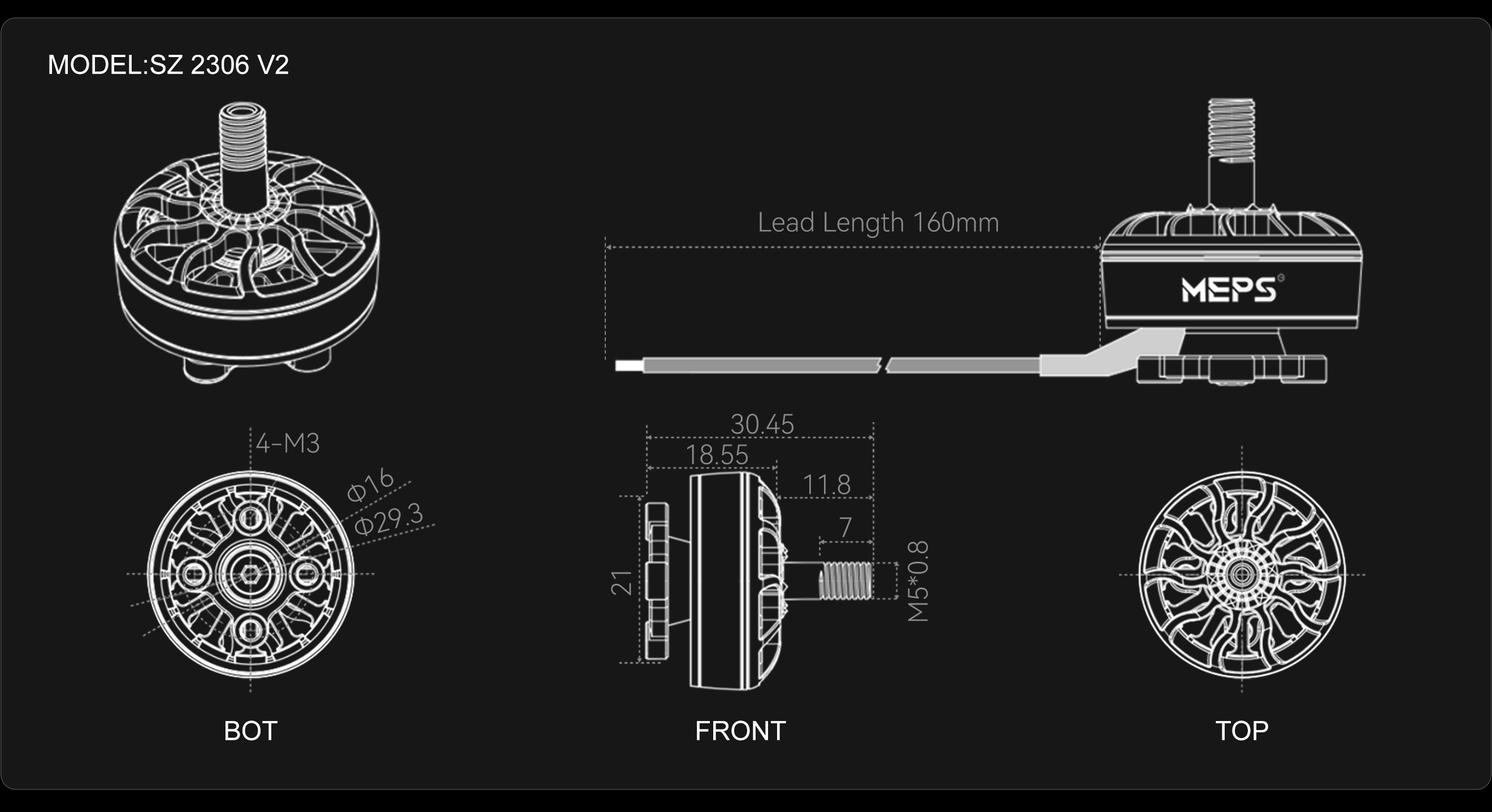

3. MEPS: SZ2306 V2 size chart (image on the product page). Retrieved Oct 19, 2026.

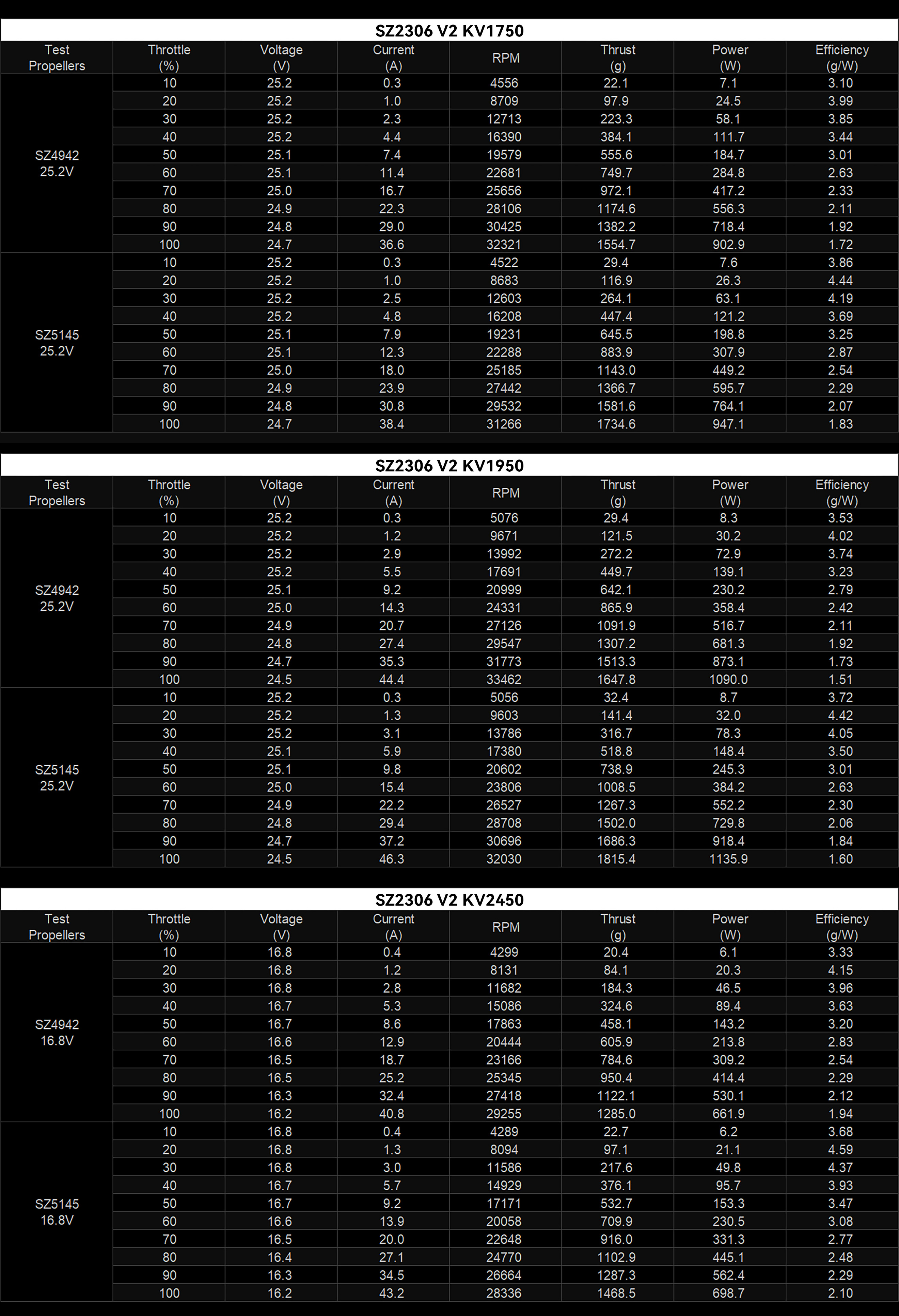

4. MEPS: SZ2306 V2 data test, 10–100% throttle tables for KV1750, KV1950 and KV2450 with SZ4942 and SZ5145 props (image on the product page). Retrieved Oct 19, 2026.
5. MEPS: SZ2306 V2 1950KV fluorescent green product photo, used for finish. Retrieved Oct 19, 2026.

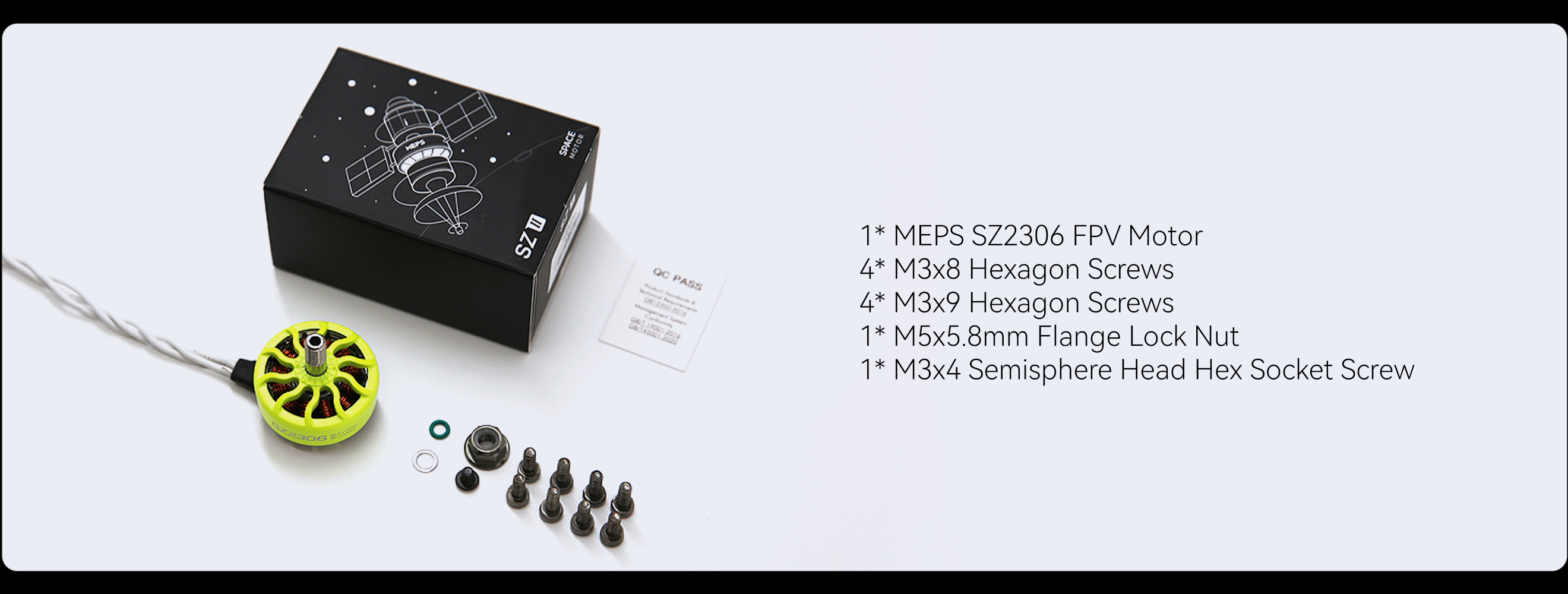

6. MEPS: SZ2306 V2 package contents (image on the product page). Retrieved Oct 19, 2026.
