5-inch FPV freestyle motor
MEPS NEON COOL 2207
A 5-inch freestyle motor in CW and CCW versions with direction-specific bell ribs: 34 g with leads, a TC4 titanium hollow shaft and N52SH magnets, and 1734–1745 g of thrust at full throttle on MEPS's 25.2 V bench (SZ5145).
- 5-inch freestyle
- 6S
- 5-inch three-blade props (MEPS SZ5145, SZ4942)
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2207 motor drawn from MEPS’s published sizes, not its exact design. Thrust, current and power are MEPS’s bench figures for the MEPS SZ5145 prop at 25.2 V, read straight across between its throttle steps. Its data starts at 10% throttle.
- Max thrust
- 1,745 g
- MEPS SZ5145 prop, 25.2 V
- Weight
- 34 g
- ±1 g, with cable
- Peak current
- 43.8 A
- full throttle
- Max power
- 1,056 W
- full throttle
from $11.99a motor at MEPS
A set of four: $47.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the MEPS SZ5145: 1,006 g of thrust, 15.4 A, 383 W, 2.60 g per watt.
On your quad
10.7 : 1
Thrust to weight at full throttle: four motors pull 6,980 g with the MEPS SZ5145 at 25.2 V.
At 60% throttle they pull 4,024 g, 6.2 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $11.99
About 1.74 kg on 6S
On MEPS's 25.2 V bench with its SZ5145 prop the CCW motor pulls 1745 g at full throttle and the CW motor 1734 g, both at 43.8 A.
Source: MEPS data test
CW and CCW bells
Green CW and pink CCW versions have rib angles matched to the prop's direction; MEPS credits them with up to 9.5% higher flight efficiency.
Source: MEPS product page
Titanium shaft, N52SH magnets
A TC4 titanium alloy hollow shaft and N52SH arc magnets.
Source: MEPS product page
Anti-slip prop flange
A textured prop flange that MEPS says keeps props from slipping under hard punch-outs.
Source: MEPS product page
What to pair it with
Our reading of MEPS’s numbers, so your build matches what the motor was tested with.
- ESC
- MEPS's peak current is 43.8 A, the full-throttle draw of its SZ5145 tests, so a 45 A or larger ESC covers it. MEPS's guide names BLHeli_32 or AM32 stacks such as its NEONCORE F405 60A. (MEPS spec table, MEPS data test, MEPS product page)
- Props
- MEPS tested its SZ5145 and SZ4942 three-blade props; the SZ5145 pulls 135–150 g more at full throttle. (MEPS data test)
- Battery
- 6S; MEPS's guide suggests a 1050–1400 mAh 120C or higher pack. (MEPS spec table, MEPS product page)
- Frame
- Four M3 screws on a 16 mm circle (the 16 × 16 pattern of 5-inch frames). Mount the CW and CCW motors on the matching corners. (MEPS product page, MEPS size chart)
Where to buy
- MEPSthe maker's store; one motor, CW (green) or CCW (pink)$11.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 1,950 rpm/V (the only KV, in a CW and a CCW version) | MEPS spec table |
| Stator | 22 × 7 mm (2207) (MEPS's description gives 22 × 7 mm) | MEPS product page |
| Configuration | 12N14P (12 stator slots, 14 magnet poles) | MEPS spec table |
| Battery | 6S LiPo | MEPS spec table |
| Weight | 34 g (±1 g, with cable) | MEPS spec table |
| Dimensions | φ29 mm (± 0.2 mm) (the size chart on the page is MEPS's NEON 2207 V2 drawing (φ28.3 × 31.6 mm), so its heights are not used here) | MEPS spec table |
| Shaft | 5 mm (± 0.05 mm) TC4 titanium alloy, hollow (the material is from MEPS's page (S1)) | MEPS spec table |
| Mounting | 4 × M3 holes on a 16 mm circle (16 × 16 mm) | MEPS product page, MEPS size chart |
| Bell | Direction-specific ribs (CW and CCW versions) and a textured anti-slip prop flange | MEPS product page |
| Magnets | N52SH arc magnets (the variant description on the same page says N52H) | MEPS product page |
| Winding | Single-strand high-purity copper wire | MEPS product page |
| Internal resistance | 68 mΩ (±6 mΩ) | MEPS spec table |
| Idle current | 1.6 A (at most; the table heads the row "10V" but writes "(7V)" after the value) | MEPS spec table |
| Peak current | 43.8 A (MEPS's "Peak Current (60S)", the full-throttle row of its SZ5145 tests at 25.2 V) | MEPS spec table |
| Max power | 1,056 W (1057 W in the page's comparison table) | MEPS spec table |
| Leads | 150 ± 2 mm, with 10 mm of heat-shrink at the motor and 3 mm stripped ends (the heat-shrink and stripped lengths are from the size chart (S3)) | MEPS spec table |
| In the box | 1 × NEON COOL 2207 motor (CW or CCW) | MEPS product page |
Bench data
Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
1950KV on 6S, 25.2 V4 props
| Prop | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|---|
| MEPS SZ5145 (3-blade), CCW motor | 10% | 25.2 | 0.4 | 4823 | 33 | 9 | 3.6 |
| 20% | 25.2 | 1.4 | 9423 | 144 | 35 | 4.1 | |
| 30% | 25.1 | 3.6 | 13910 | 336 | 89 | 3.8 | |
| 40% | 25.1 | 6.3 | 17320 | 535 | 159 | 3.4 | |
| 50% | 25 | 10.4 | 20469 | 768 | 260 | 3 | |
| 60% | 24.8 | 15.4 | 23265 | 1,006 | 383 | 2.6 | |
| 70% | 24.7 | 21.6 | 25762 | 1,248 | 533 | 2.3 | |
| 80% | 24.5 | 28.9 | 27871 | 1,471 | 707 | 2.1 | |
| 90% | 24.3 | 37 | 29577 | 1,645 | 899 | 1.8 | |
| 100% | 24.1 | 43.8 | 30500 | 1,745 | 1056 | 1.7 | |
| MEPS SZ5145 (3-blade), CW motor | 10% | 25.2 | 0.4 | 4809 | 32 | 9 | 3.6 |
| 20% | 25.2 | 1.4 | 9332 | 140 | 35 | 4 | |
| 30% | 25.1 | 3.6 | 13907 | 335 | 90 | 3.7 | |
| 40% | 25.1 | 6.4 | 17322 | 534 | 159 | 3.4 | |
| 50% | 25 | 10.4 | 20480 | 759 | 260 | 2.9 | |
| 60% | 24.8 | 15.5 | 23245 | 998 | 384 | 2.6 | |
| 70% | 24.7 | 21.5 | 25674 | 1,231 | 531 | 2.3 | |
| 80% | 24.5 | 28.8 | 27774 | 1,452 | 704 | 2.1 | |
| 90% | 24.3 | 36.9 | 29395 | 1,637 | 895 | 1.8 | |
| 100% | 24.1 | 43.8 | 30412 | 1,734 | 1057 | 1.6 | |
| MEPS SZ4942 (3-blade), CCW motor | 10% | 25.2 | 0.3 | 4855 | 27 | 9 | 3.2 |
| 20% | 25.2 | 1.3 | 9538 | 119 | 33 | 3.6 | |
| 30% | 25.1 | 3.3 | 14107 | 278 | 83 | 3.4 | |
| 40% | 25.1 | 5.8 | 17663 | 455 | 146 | 3.1 | |
| 50% | 25 | 9.5 | 20901 | 652 | 237 | 2.7 | |
| 60% | 24.9 | 14.2 | 23863 | 868 | 352 | 2.5 | |
| 70% | 24.7 | 20 | 26539 | 1,105 | 494 | 2.2 | |
| 80% | 24.5 | 27.1 | 28906 | 1,320 | 665 | 2 | |
| 90% | 24.3 | 35.1 | 30898 | 1,492 | 853 | 1.7 | |
| 100% | 24.2 | 42.1 | 32155 | 1,610 | 1017 | 1.6 | |
| MEPS SZ4942 (3-blade), CW motor | 10% | 25.2 | 0.3 | 4835 | 27 | 8 | 3.2 |
| 20% | 25.2 | 1.3 | 9390 | 115 | 32 | 3.6 | |
| 30% | 25.1 | 3.3 | 14132 | 275 | 82 | 3.3 | |
| 40% | 25.1 | 5.8 | 17629 | 448 | 145 | 3.1 | |
| 50% | 25 | 9.5 | 20850 | 648 | 236 | 2.7 | |
| 60% | 24.9 | 14.1 | 23756 | 858 | 351 | 2.4 | |
| 70% | 24.7 | 19.9 | 26436 | 1,080 | 492 | 2.2 | |
| 80% | 24.5 | 27.1 | 28784 | 1,292 | 664 | 1.9 | |
| 90% | 24.3 | 35.1 | 30711 | 1,466 | 853 | 1.7 | |
| 100% | 24.2 | 42 | 31993 | 1,584 | 1015 | 1.6 |
Source: MEPS data test
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Shaft. 5 mm (± 0.05 mm) TC4 titanium alloy, hollow (the material is from MEPS's page (S1)). (MEPS spec table)
- Bell. Direction-specific ribs (CW and CCW versions) and a textured anti-slip prop flange. (MEPS product page)
- Magnets. N52SH arc magnets (the variant description on the same page says N52H). (MEPS product page)
- Stator. The coils are wound on a stack of thin steel laminations: 22 × 7 mm (2207) (MEPS's description gives 22 × 7 mm). (MEPS product page)
- Winding. Single-strand high-purity copper wire. (MEPS product page)
- Base. 4 × M3 holes on a 16 mm circle (16 × 16 mm). (MEPS product page, MEPS size chart)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1950KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 28,860 | 3,367 Hz | 20,202 |
| 4S full | 16.8 | 32,760 | 3,822 Hz | 22,932 |
| 6S nominal | 22.2 | 43,290 | 5,051 Hz | 30,303 |
| 6S full | 25.2 | 49,140 | 5,733 Hz | 34,398 |
A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.
About the 3D model
A generic outrunner drawn from MEPS’s published sizes: the 22 × 7 mm stator, 29 mm bell, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- MEPS: NEON COOL 2207 high-efficiency CW/CCW brushless motor for 5'' FPV, 1950KV (product page with buying guide, MEPS's own store). Retrieved Oct 19, 2026.

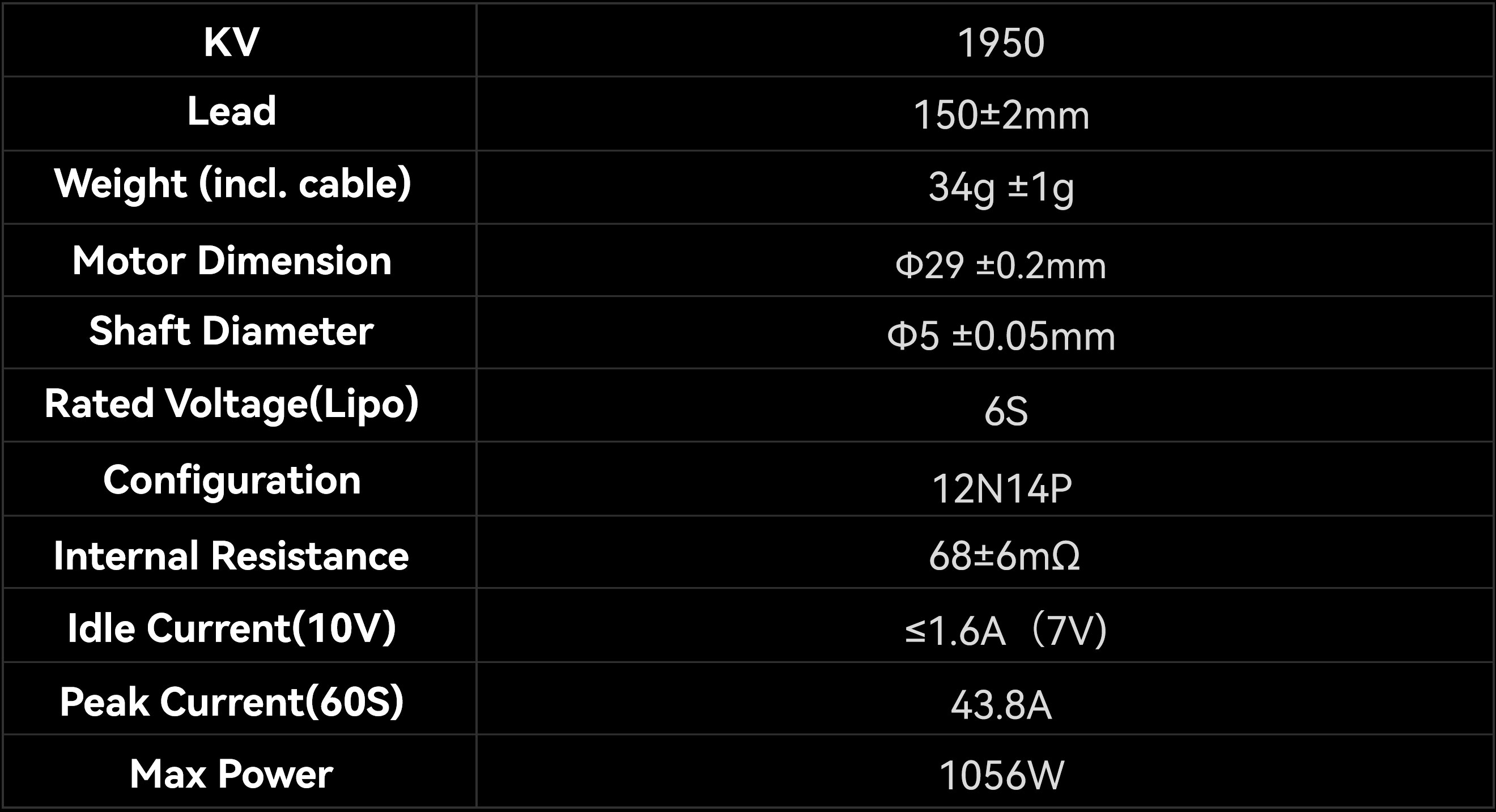

- MEPS: NEON COOL 2207 1950KV specification table (image on the product page). Retrieved Oct 19, 2026.

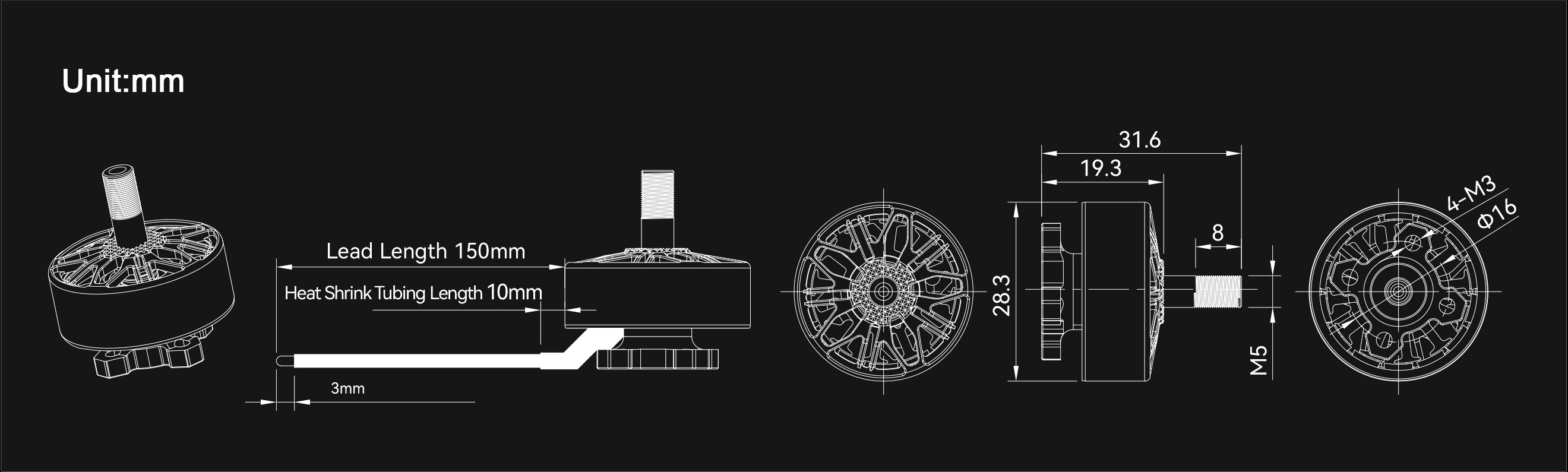

- MEPS: size chart on the NEON COOL 2207 page (the same drawing as MEPS's NEON 2207 V2 size chart, with a φ28.3 mm bell). Retrieved Oct 19, 2026.

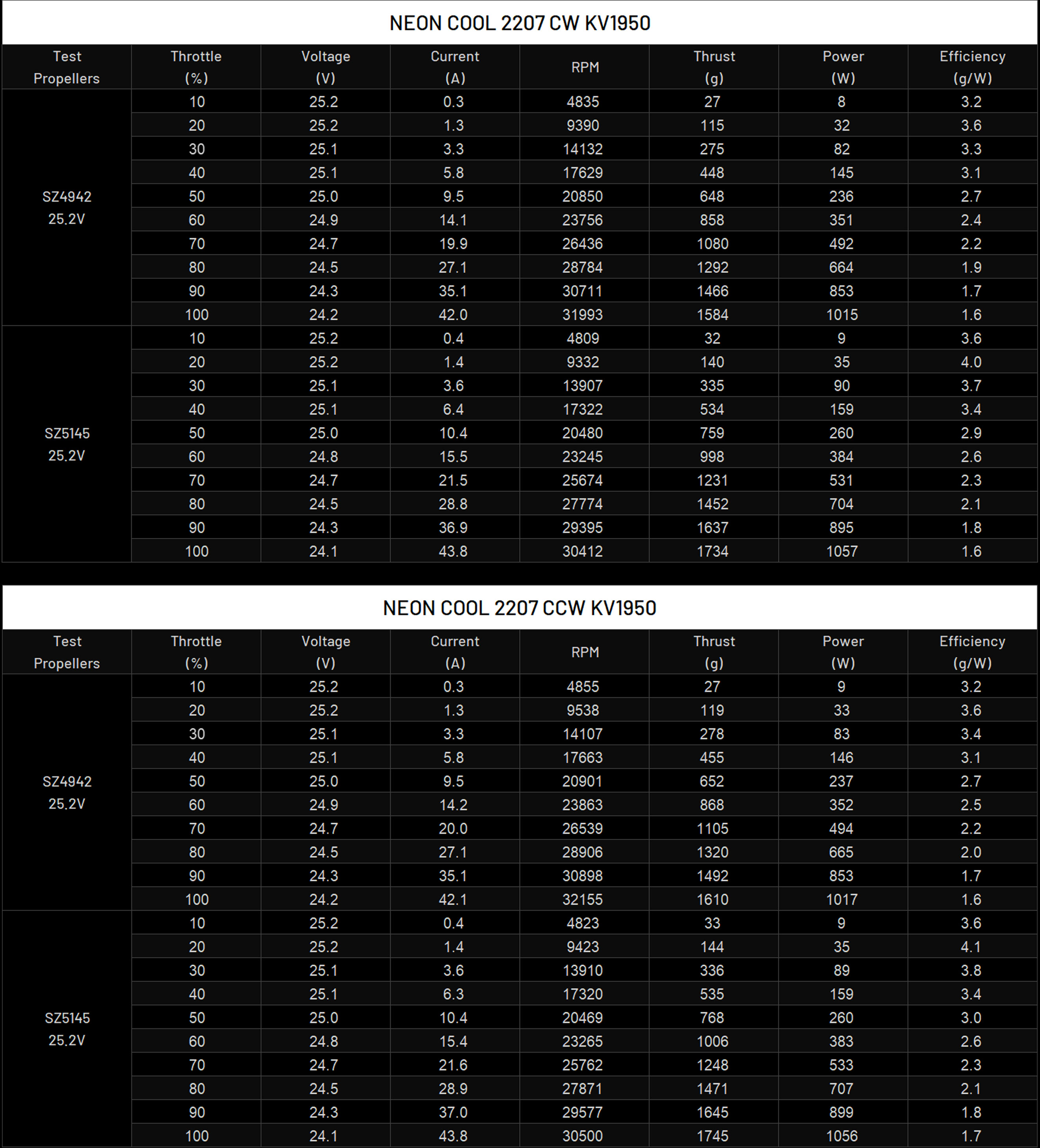

- MEPS: NEON COOL 2207 CW and CCW KV1950 data tests, 10–100% throttle with SZ4942 and SZ5145 props at 25.2 V (image on the product page). Retrieved Oct 19, 2026.
- MEPS: NEON COOL 2207 1950KV CW fluorescent green, main product photo, used for finish. Retrieved Oct 19, 2026.
