MEPS NEON 2812

What it pulls

MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $19.50

• Up to 2.76 kg with 8-inch props

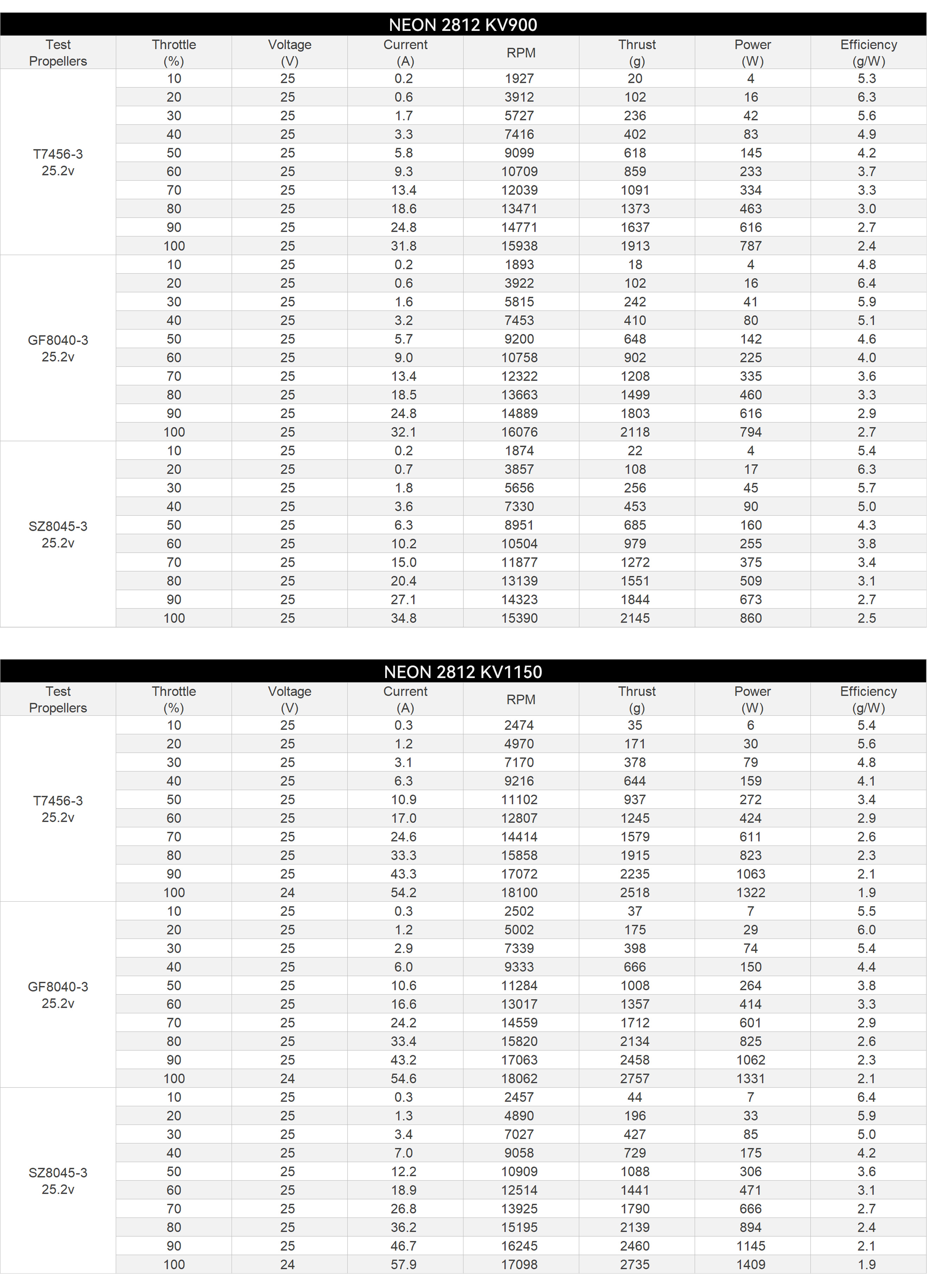

  On MEPS's 25.2 V bench the 1150KV pulls 2757 g at full throttle with a Gemfan 8040 three-blade and 2735 g with MEPS's SZ8045-3; the 900KV pulls up to 2145 g.

  Source: MEPS data test

• 3829 g with a 9-inch prop

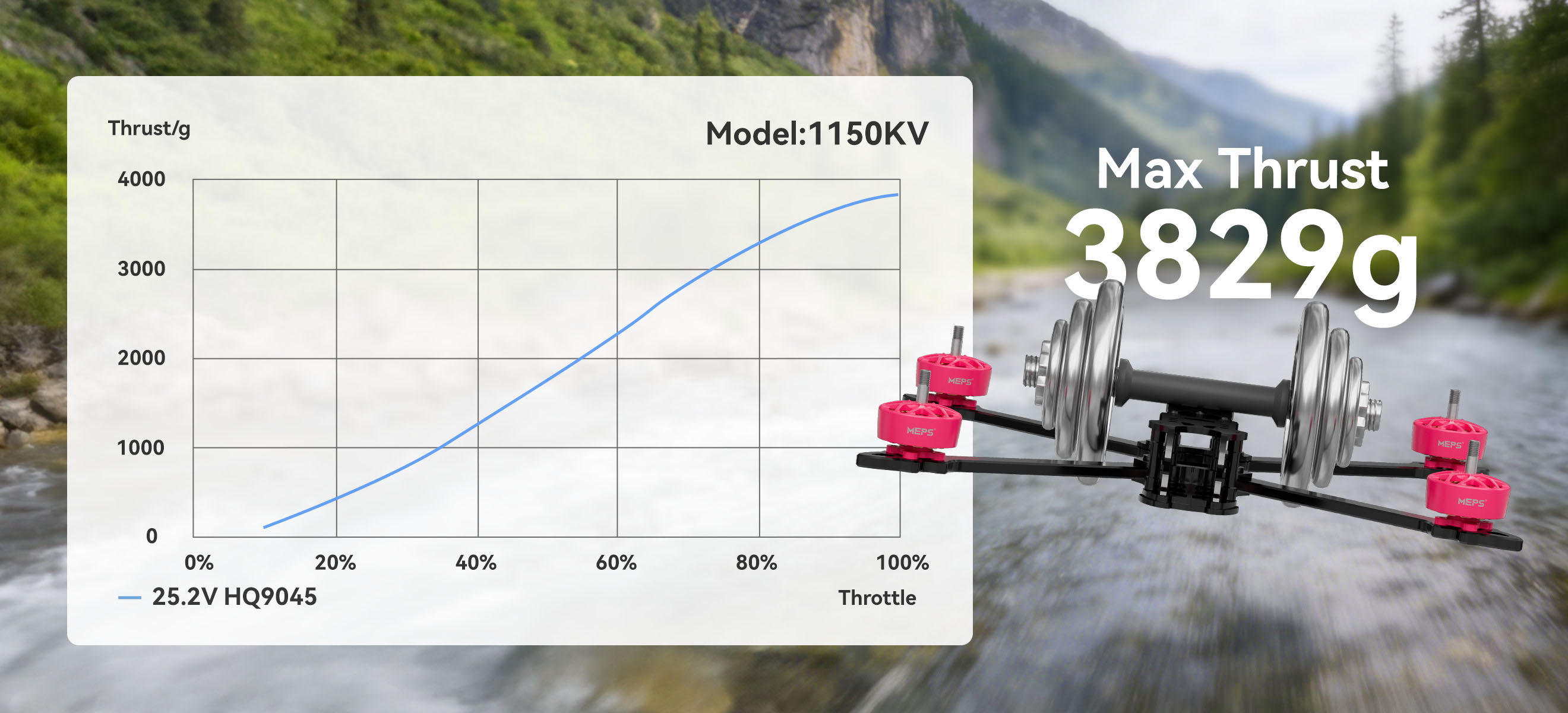

  MEPS's chart for the 1150KV with an HQ9045 prop at 25.2 V tops out at 3829 g.

  Source: MEPS thrust chart

• Named parts

  A stainless steel shaft, a 6082 aluminium alloy casing and NMB bearings.

  Source: MEPS product page

• Two colours

  Both KVs come in fluorescent pink or fluorescent green.

  Source: MEPS product page

What to pair it with

Our reading of MEPS’s numbers, so your build matches what the motor was tested with.

ESC

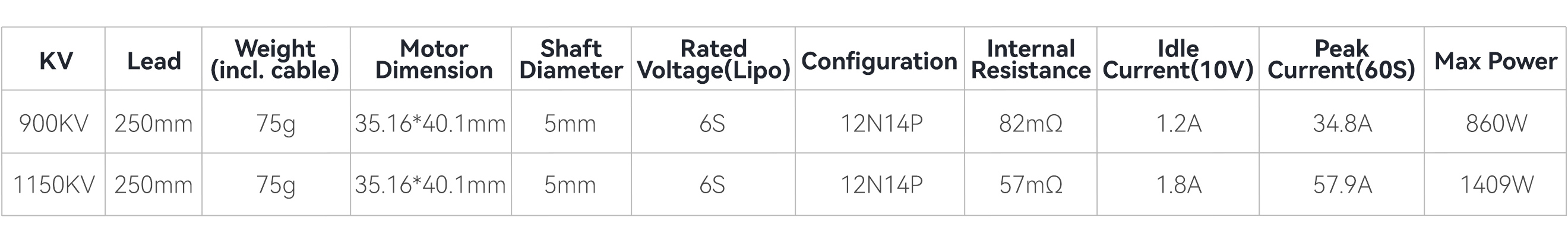

MEPS's peak currents are 34.8 A (900KV) and 57.9 A (1150KV), the full-throttle draw of its SZ8045-3 tests. Its build guide pairs both with T-Hobby's F55A Pro III 4-in-1; a 60 A ESC covers the 1150KV's peak. (MEPS spec table, MEPS data test, MEPS product page)

Props

MEPS tested a 7-inch T7456-3 and 8-inch GF8040-3 and SZ8045-3 three-blade props; its guide suggests 8045 props. (MEPS data test, MEPS product page)

Battery

6S. MEPS's guide suggests a 4000–6000 mAh Li-ion pack for 900KV cruising, and an 1800–3300 mAh LiPo for the 1150KV. (MEPS spec table, MEPS product page)

Frame

Four M3 screws on a 19 mm circle (19 × 19 mm), for 7–9 inch frames. (MEPS size chart, MEPS product page)

Where to buy

• MEPSthe maker's store; $78 for four
  $19.50seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

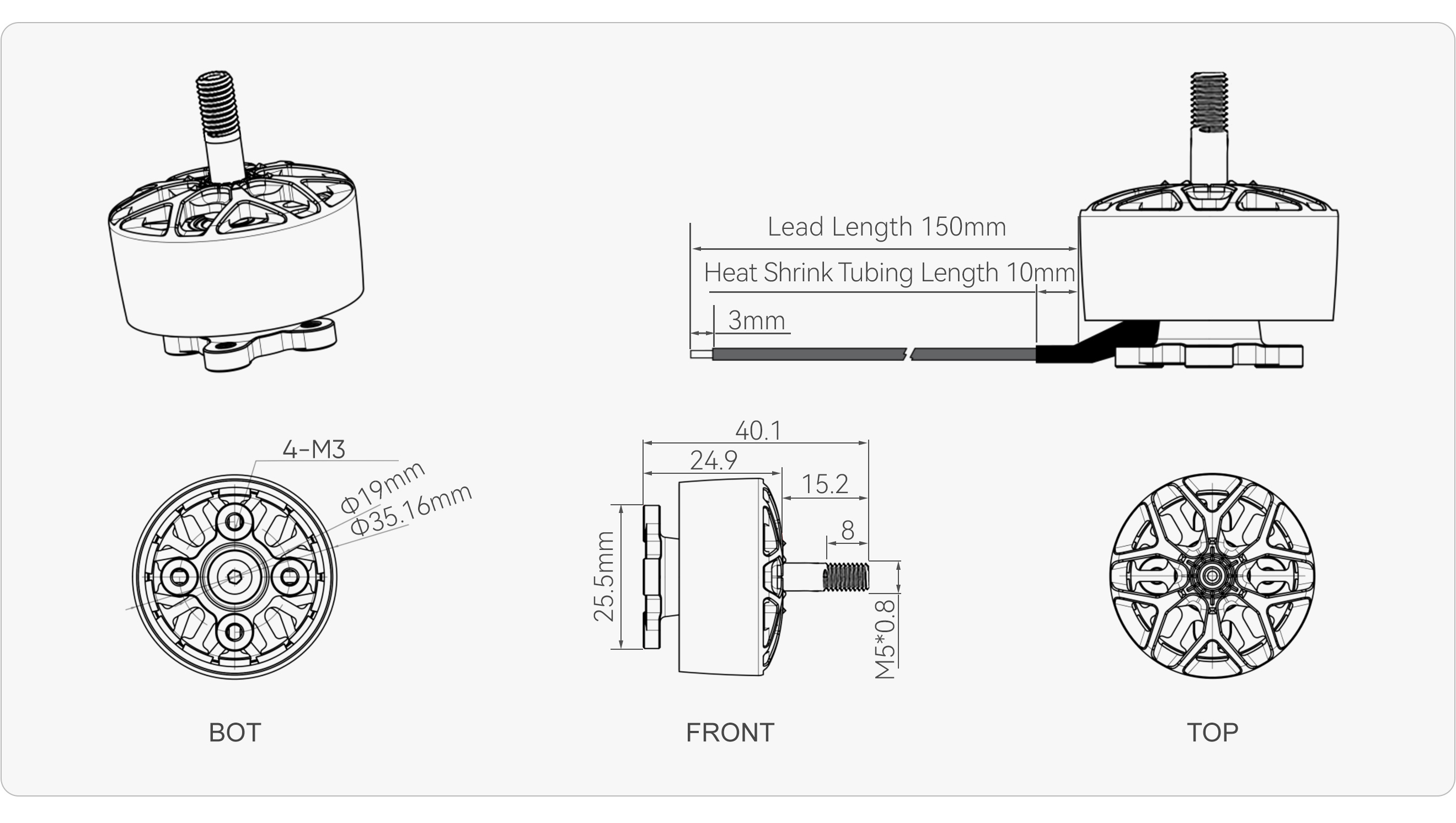

• Shaft. 5 mm stainless steel, M5 × 0.8 thread 8 mm long, protrudes 15.2 mm above the bell (the material is from MEPS's page (S1)). (MEPS size chart)
• Bell. 6082 aluminium alloy casing. (MEPS product page)
• Stator. The coils are wound on a stack of thin steel laminations: 28 × 12 mm (2812) (MEPS's page calls it the 2812 stator). (MEPS product page)
• Bearings. NMB. (MEPS product page)
• Base. 4 × M3 holes on a 19 mm circle (19 × 19 mm). (MEPS size chart)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 900KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from MEPS’s published sizes: the 28 × 12 mm stator, 35.16 mm bell, 24.9 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. MEPS: NEON 2812 brushless motor for 8-inch FPV cinematic and long range drones 900KV/1150KV (product page with buying guide, MEPS's own store). Retrieved Oct 19, 2026.
2. MEPS: NEON 2812 specification table (image on the product page). Retrieved Oct 19, 2026.
3. MEPS: NEON 2812 size chart (image on the product page). Retrieved Oct 19, 2026.
4. MEPS: NEON 2812 data test, 10–100% throttle tables for KV900 and KV1150 with T7456-3, GF8040-3 and SZ8045-3 props at 25.2 V (image on the product page). Retrieved Oct 19, 2026.
5. MEPS: NEON 2812 1150KV thrust chart with an HQ9045 prop at 25.2 V, "Max Thrust 3829g" (image on the product page). Retrieved Oct 19, 2026.
6. MEPS: NEON 2812 900KV fluorescent pink, main product photo, used for finish. Retrieved Oct 19, 2026.
