MEPS NEON 2810

What it pulls

MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $24.99

• 10 mm tall stator

  MEPS says the 28 × 10 mm stator gives the low-end torque to swing heavy 7–8.5 inch props.

  Source: MEPS product page

• Thrust data for both KVs

  2447 g at 51.6 A with the SZ8045 (1180KV, 25.2 V); 2401 g at 65.4 A with the SZ8045 on 21 V (1350KV).

  Source: MEPS product page

• Named parts

  A 6082 aluminium alloy housing, N50H magnets and NMB bearings.

  Source: MEPS product page

• Two colours

  Fluorescent green or fluorescent pink.

  Source: MEPS product page

What to pair it with

Our reading of MEPS’s numbers, so your build matches what the motor was tested with.

ESC

MEPS suggests a 55–65 A 4-in-1. Its peak currents are 51.6 A (1180KV) and 65.4 A (1350KV on 21 V). (MEPS product page)

Props

MEPS tested 7040 and SZ8045 three-blade props on both KVs and a T7456 on the 1350KV; its guide names 7-inch to 8.5-inch props. (MEPS product page)

Battery

6S. MEPS's guide pairs it with 6S LiPo for cinematic flying and 6S Li-ion packs for long-range cruising. (MEPS product page)

Frame

Four screws on a 19 mm circle (19 × 19 mm). (MEPS size chart)

Where to buy

• MEPSthe maker's store; $98.99 for four
  $24.99seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Shaft. 5 mm, M5 × 0.8 thread 8 mm long, protrudes 15.2 mm above the bell (MEPS's page calls the shaft stainless steel in one place and TC4 titanium alloy in another). (MEPS size chart)
• Bell. 6082 aluminium alloy. (MEPS product page)
• Magnets. N50H. (MEPS product page)
• Stator. The coils are wound on a stack of thin steel laminations: 28 × 10 mm (2810). (MEPS product page)
• Bearings. NMB. (MEPS product page)
• Base. 4 holes on a 19 mm circle, labelled M2 × 0.4 in MEPS's drawing (the same hole label as MEPS's NEON 2203.5 drawing; check the screw size with MEPS). (MEPS size chart)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1180KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from MEPS’s published sizes: the 28 × 10 mm stator, 35.66 mm bell, 22.9 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. MEPS: NEON 2810 long range FPV motor for 7–8 inch cinematic drone 1180KV/1350KV (product page with spec table and data tests, MEPS's own store). Retrieved Oct 19, 2026.

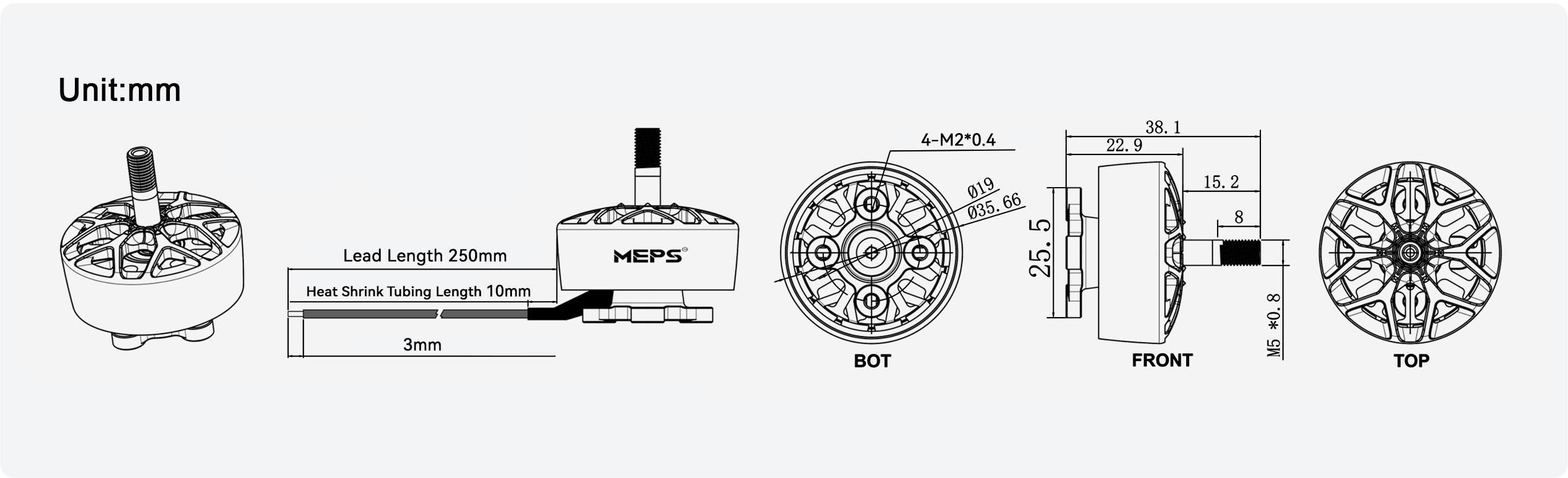

2. MEPS: NEON 2810 size chart (image on the product page). Retrieved Oct 19, 2026.
3. MEPS: NEON 2810 1180KV fluorescent pink, main product photo, used for finish. Retrieved Oct 19, 2026.
