MEPS NEON 2505.5

What it pulls

MEPS’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $18.90

• 1718 g on 6S

  On MEPS's 25.2 V bench with its SZ5145 prop it pulls 1718 g at full throttle, drawing 45.3 A.

  Source: MEPS product page

• Wide stator

  A 25 × 5.5 mm stator with N50H arc magnets, which MEPS says gives the torque to carry an action camera.

  Source: MEPS product page

• Named materials

  Pure copper wire with 220 °C enamel, a 5 mm steel shaft and a one-piece 6082 aluminium bell.

  Source: MEPS product page

• Tested on 4S too

  At 16.8 V it pulls 1128 g with the SZ5145 and 1352 g with a T6143 at full throttle.

  Source: MEPS product page

What to pair it with

Our reading of MEPS’s numbers, so your build matches what the motor was tested with.

ESC

MEPS's buying guide calls for a 45–60 A 4-in-1 ESC running BLHeli_32 or AM32. Its peak current is 45.3 A, the full-throttle draw of its 6S SZ5145 test. (MEPS product page)

Props

MEPS tested its SZ5145 three-blade prop on 6S and 4S, and a T6143 on 4S; its parts list also names the SZ4942, HQProp J37 and T-Hobby T5146. (MEPS product page)

Battery

6S; MEPS's guide suggests a 1100–1400 mAh 100C or higher pack. (MEPS product page)

Frame

Four M3 screws on a 16 mm circle (16 × 16 mm); MEPS's guide asks for 5 or 6-inch frames with arms at least 5 mm thick. (MEPS size chart, MEPS product page)

Where to buy

• MEPSthe maker's store; $75.60 for four
  $18.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from MEPS’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

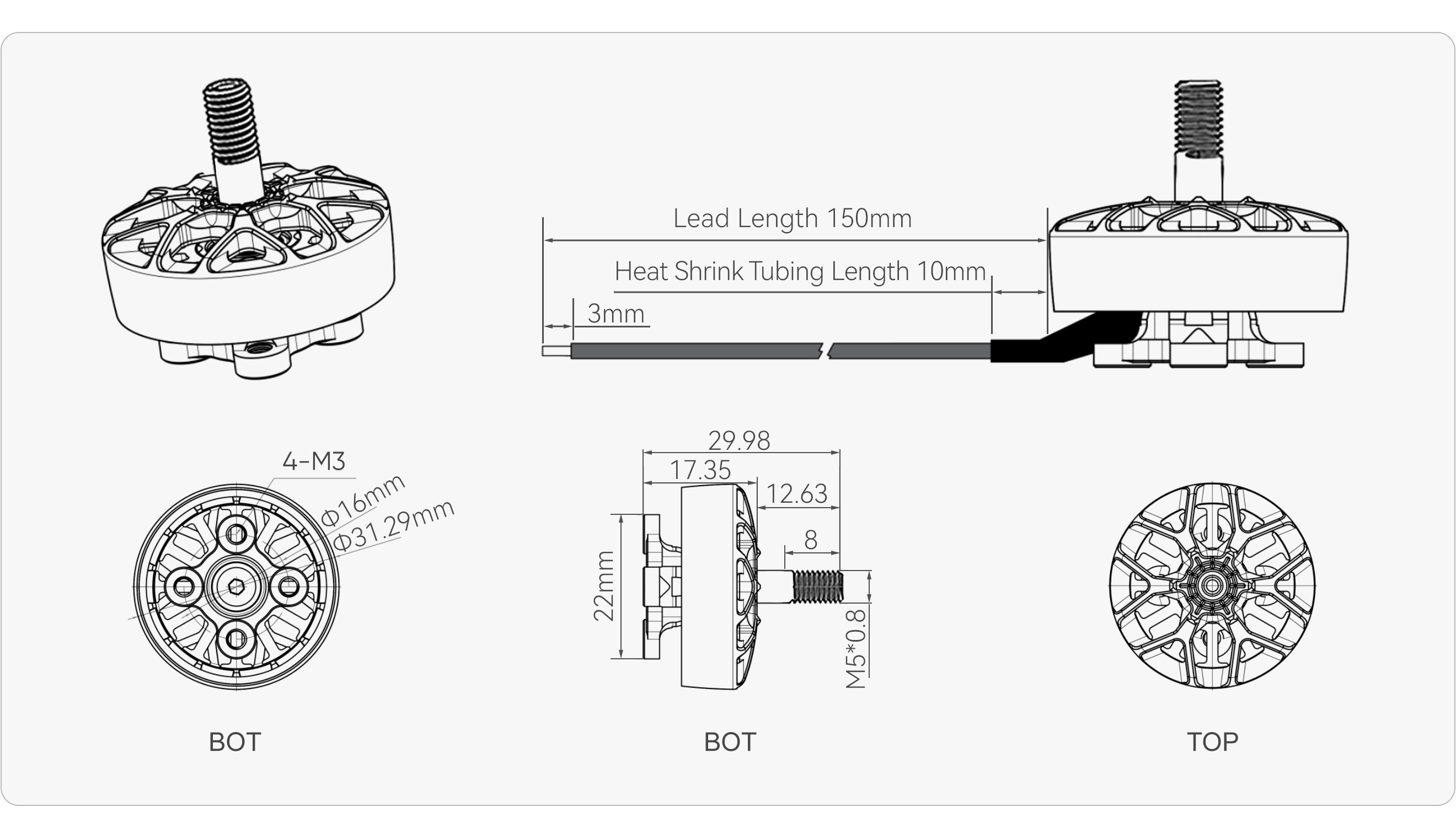

• Shaft. 5 mm steel, M5 × 0.8 thread 8 mm long, protrudes 12.63 mm above the bell (the material is from MEPS's page (S1)). (MEPS size chart)
• Bell. 6082 aluminium, one piece ("Uni-Bell"), with reinforced struts. (MEPS product page)
• Magnets. N50H arc magnets. (MEPS product page)
• Stator. The coils are wound on a stack of thin steel laminations: 25 × 5.5 mm (2505.5). (MEPS product page)
• Winding. Pure copper wire with 220 °C enamel. (MEPS product page)
• Base. 4 × M3 holes on a 16 mm circle (16 × 16 mm). (MEPS size chart)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 2000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from MEPS’s published sizes: the 25 × 5.5 mm stator, 31.29 mm bell, 17.35 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything MEPS doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
