1S tiny whoop motor
iFlight XING NANO 0803
A 2.1 g motor for 1S tiny whoops: 17000KV or 22000KV, NSK bearings, a plug on its leads, and 35.9 g (17000KV) or 46.6 g (22000KV) of pull per motor on a Gemfan 40 mm prop on iFlight's 4 V bench.
- 1S tiny whoops
- 40 mm props, as on iFlight's bench
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 0803 motor drawn from iFlight’s published sizes, not its exact design. Thrust, current and power are iFlight’s bench figures for the Gemfan 40 mm prop at 4 V, read straight across between its throttle steps. Its data starts at 60% throttle.
- Max thrust
- 36 g
- Gemfan 40 mm prop, 4 V
- Weight
- 2.1 g
- with wires; the same for both KVs
- Peak current
- 4.1 A
- full throttle
- Max power
- 16 W
- full throttle
from $13.99a motor at iFlight
A set of four: $55.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
iFlight’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the Gemfan 40 mm: 11 g of thrust, 1.1 A, 4 W, 2.52 g per watt.
On your quad
0.2 : 1
Thrust to weight at full throttle: four motors pull 144 g with the Gemfan 40 mm at 4 V.
At 60% throttle they pull 44 g, 0.1 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $13.99
2.1 g with wires
On an 8 × 3 mm stator with a φ10.8 mm bell.
Two KVs
17000KV and 22000KV. On a Gemfan 40 mm prop at 4 V the 22000KV pulled 46.6 g at full throttle, against 35.9 g for the 17000KV.
Source: iFlight 17000KV test report, iFlight 22000KV test report
Plug-in leads
30 mm, 30 AWG leads ending in an SH1.25 plug.
Source: iFlight 17000KV test report
Curved N52H magnets
Arc-shaped N52H magnets, 12 poles on a 9-slot stator, with single-strand windings: 58 mΩ between phases.
Source: iFlight product page
NSK bearings
iFlight fits NSK bearings.
Source: iFlight product page
What to pair it with
Our reading of iFlight’s numbers, so your build matches what the motor was tested with.
- ESC
- Rated for at least the peak iFlight measured at full throttle on a Gemfan 40 mm at 4 V: 4.11 A for the 17000KV and 5.81 A for the 22000KV. (iFlight 17000KV test report, iFlight 22000KV test report)
- Props
- iFlight tested both KVs with a Gemfan 40 mm, and the 22000KV also with a Gemfan 1220, which pulled 31.7 g at full throttle against 46.6 g on the 40 mm. (iFlight 17000KV test report, iFlight 22000KV test report)
- Battery
- 1S; iFlight gives 4.0 V as the input. (iFlight product page, iFlight 17000KV test report)
- Frame
- Three M1.4 holes on a 6.6 mm circle. Four M1.4 × 3 screws come in the box. (iFlight 17000KV test report)
Where to buy
- iFlightthe maker's store; one motor, same price for both KVs$13.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 17,000 rpm/V (also 22000KV) | iFlight product page |
| Stator | 8 × 3 mm (0803) | iFlight product page |
| Configuration | 9N12P (9 stator slots, 12 magnet poles) | iFlight product page |
| Battery | 1S LiPo (4.0 V) | iFlight product page, iFlight 17000KV test report |
| Weight | 2.1 g (with wires; the same for both KVs) | iFlight product page |
| Dimensions | φ10.8 × 14.4 mm (with shaft); body 8.9 mm tall (the drawing gives φ10.8 ± 0.05 mm and 8.9 ± 0.2 mm) | iFlight 17000KV test report |
| Shaft | 1 mm, protrudes 5.5 mm | iFlight product page |
| Mounting | 3 × M1.4 holes (φ1.4 mm) on a 6.6 mm circle (the product page says 6*6 φ1.4mm; the test reports say 6.6*6.6-φ1.4mm and the drawing dimensions the holes as 3-M1.4 on a φ6.6 circle) | iFlight 17000KV test report |
| Bell | segmented (iFlight's term) | iFlight product page |
| Magnets | N52H, curved | iFlight product page |
| Bearings | NSK, φ4 × φ2 mm (the test reports print the size as φ4*φ2*15; a 15 mm width can't fit in a motor 8.9 mm tall, so the width is left out) | iFlight 17000KV test report |
| Winding | single-strand copper | iFlight product page |
| Interphase resistance | 58 mΩ (iFlight gives 58 mΩ for both KVs) | iFlight product page |
| Peak current | 4.11 A (100% throttle, Gemfan 40 mm prop, 4.0 V; 5.81 A for 22000KV) | iFlight 17000KV test report |
| Max power | 16.4 W (23.2 W for 22000KV) | iFlight 17000KV test report |
| Leads | 30 AWG, 30 mm, with an SH1.25 plug | iFlight 17000KV test report |
| In the box | 4 × M1.4×3 screws | iFlight 17000KV test report |
Bench data
Redrawn from iFlight’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
17000KV on 1S, 4 V1 prop
| Prop | Throttle | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|
| Gemfan 40 mmmotor at 51 °C | 60% | 1.08 | 10.9 | 4.3 | 2.523 |
| 70% | 1.48 | 14.6 | 5.9 | 2.466 | |
| 80% | 2.43 | 22.5 | 9.7 | 2.315 | |
| 90% | 3.01 | 26.8 | 12 | 2.226 | |
| 100% | 4.11 | 35.9 | 16.4 | 2.184 |
Source: iFlight 17000KV test report
22000KV on 1S, 4 V2 props
| Prop | Throttle | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|
| Gemfan 40 mmmotor at 55 °C | 50% | 2.71 | 23 | 10.8 | 2.122 |
| 60% | 3.26 | 27.1 | 13 | 2.078 | |
| 70% | 3.81 | 31.2 | 15.2 | 2.047 | |
| 80% | 4.2 | 35.8 | 16.8 | 2.131 | |
| 90% | 4.77 | 39.1 | 19.1 | 2.049 | |
| 100% | 5.81 | 46.6 | 23.2 | 2.005 | |
| Gemfan 1220motor at 42 °C | 50% | 2.44 | 12.4 | 9.8 | 1.265 |
| 60% | 2.96 | 16.4 | 11.8 | 1.382 | |
| 70% | 3.38 | 20.1 | 13.5 | 1.487 | |
| 80% | 3.78 | 23.6 | 15.1 | 1.562 | |
| 90% | 4.15 | 26.8 | 16.6 | 1.614 | |
| 100% | 4.91 | 31.7 | 19.6 | 1.614 |
Source: iFlight 22000KV test report
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Bell. Segmented, in iFlight's words, φ10.8 mm, with ten oval windows in the top, long and short in turn. (iFlight product page, iFlight 17000KV test report)
- Shaft. 1 mm, protruding 5.5 mm above the bell. (iFlight product page, iFlight 17000KV test report)
- Magnets. Curved N52H magnets, 12 poles. (iFlight product page)
- Stator. 8 × 3 mm with 9 teeth, wound with single-strand copper; 30 AWG leads, 30 mm long, with an SH1.25 plug. (iFlight product page, iFlight 17000KV test report)
- Bearings. NSK, φ4 × φ2 mm; iFlight's sheets print the width as 15, which can't be right in a motor 8.9 mm tall. (iFlight 17000KV test report)
- Base. Three arms with M1.4 holes on a 6.6 mm circle. (iFlight 17000KV test report)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 17000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 251,600 | 25,160 Hz | 150,960 |
| 4S full | 16.8 | 285,600 | 28,560 Hz | 171,360 |
| 6S nominal | 22.2 | 377,400 | 37,740 Hz | 226,440 |
| 6S full | 25.2 | 428,400 | 42,840 Hz | 257,040 |
A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.
About the 3D model
A generic outrunner drawn from iFlight’s published sizes: the 8 × 3 mm stator, 10.8 mm bell, 8.9 mm height, 1 mm shaft, 6.6 mm mounting circle and 9 teeth and 12 magnets. Anything iFlight doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- iFlight: XING NANO 0803 Motor (w/Plug) (product page with a 17000KV/22000KV picker, and its product photo). Retrieved Oct 19, 2026.

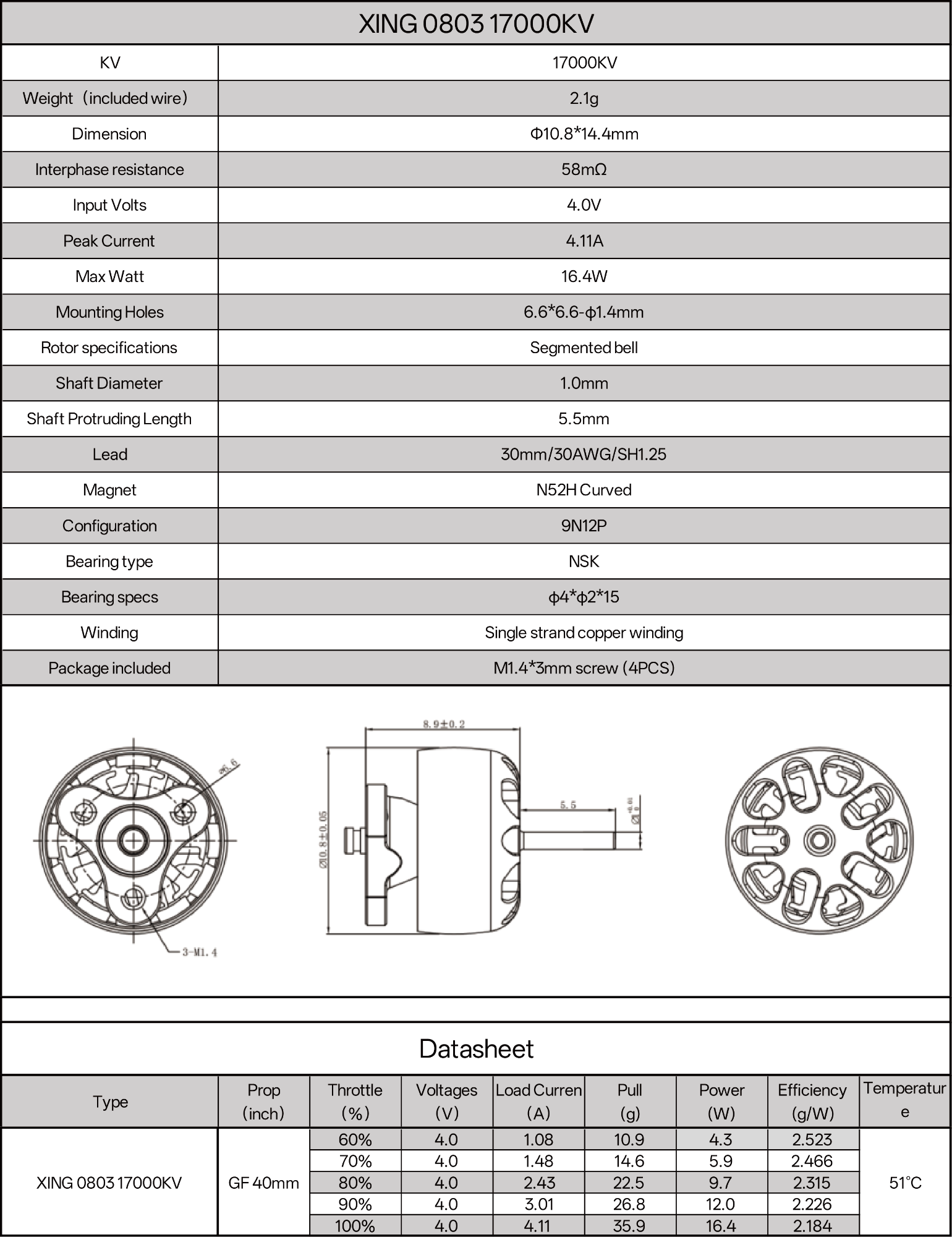

- iFlight: XING 0803 17000KV test report (spec table, dimension drawing, thrust data). Retrieved Oct 19, 2026.

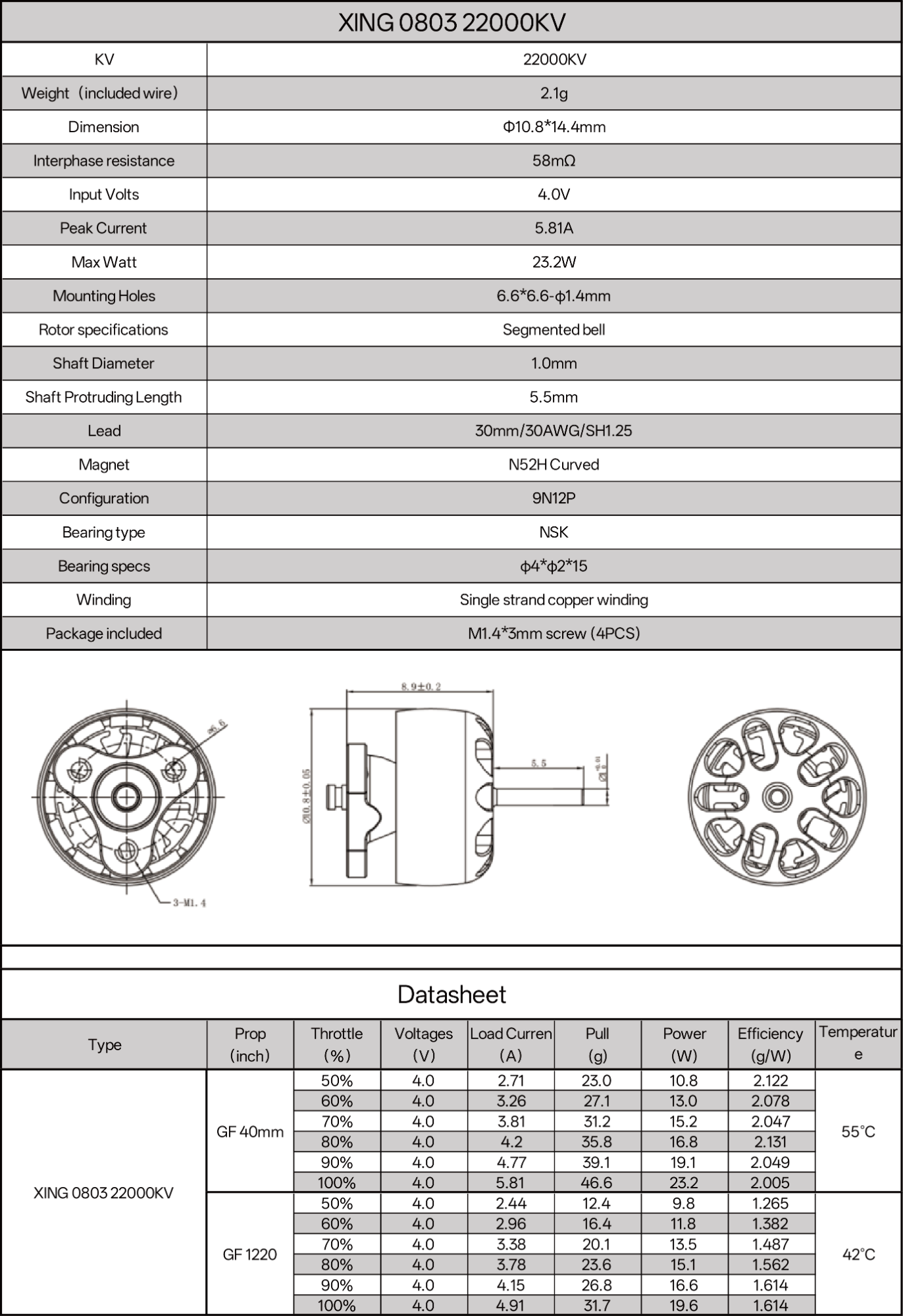

- iFlight: XING 0803 22000KV test report (spec table, dimension drawing, thrust data). Retrieved Oct 19, 2026.
