2-inch cinewhoop motor
iFlight Defender 20 1204
The 5.8 g motor iFlight made for its sub-250 g Defender 20 cinewhoop: 6200KV on 3S, NMB bearings, and 177 g of pull per motor on the Defender 20's 2-inch tri-blade on iFlight's 12 V bench.
- 2-inch cinewhoops, such as iFlight's Defender 20
- 3S
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 1204 motor drawn from iFlight’s published sizes, not its exact design. Thrust, current and power are iFlight’s bench figures for the Defender 20 2020-3 prop at 12 V, read straight across between its throttle steps. Its data starts at 50% throttle.
- Max thrust
- 177 g
- Defender 20 2020-3 prop, 12 V
- Weight
- 5.8 g
- with wires
- Peak current
- 7.8 A
- full throttle
- Max power
- 90 W
- full throttle
from $13.99a motor at iFlight
A set of four: $55.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
iFlight’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the Defender 20 2020-3: 98 g of thrust, 2.9 A, 35 W, 2.81 g per watt.
On your quad
1.1 : 1
Thrust to weight at full throttle: four motors pull 708 g with the Defender 20 2020-3 at 12 V.
At 60% throttle they pull 392 g, 0.6 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $13.99
Made for the Defender 20
iFlight designed it for ultralight sub-250 g builds on its Defender 20 frame with a whoop-style AIO board.
Source: iFlight product page
5.8 g with wires
On a 12 × 4 mm stator with a φ15.3 mm bell, 11.2 mm tall without the shaft.
Direction marks
Sold with a CW or a CCW mark on the bell's top.
Source: iFlight product page
Plug-in leads
60 mm, 28 AWG leads with an SH1.25 3-pin plug.
Source: iFlight 6200KV test report
Curved N52H magnets
Arc-shaped N52H magnets, 12 poles on a 9-slot stator, with single-strand windings: 202 mΩ between phases.
Source: iFlight product page
What to pair it with
Our reading of iFlight’s numbers, so your build matches what the motor was tested with.
- ESC
- Rated for at least 7.85 A, the peak iFlight measured at full throttle on the Defender 20's 2-inch tri-blade at about 12 V. (iFlight 6200KV test report)
- Props
- iFlight tested it with the Defender 20 2020-3 tri-blade: 73 g at half throttle and 177 g at full. The Defender 20 frame's guards are built for 2-inch props. (iFlight 6200KV test report, iFlight Defender 20 frame page)
- Battery
- 3S; iFlight gives 12 V as the input, and the battery it sells for the Defender 20 is a 3S 900 mAh pack. (iFlight product page, iFlight Defender 20 battery page)
- Frame
- Three M2 holes on a 9 mm circle, the Defender 20 frame's motor mount. Four M2×4 screws come in the box. (iFlight product page, iFlight 6200KV test report, iFlight Defender 20 frame page)
Where to buy
- iFlightthe maker's store; one motor, CW or CCW mark$13.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 6,200 rpm/V (the only KV iFlight sells; the product page's spec list writes 6200V) | iFlight 6200KV test report |
| Stator | 12 × 4 mm (1204) | iFlight product page |
| Configuration | 9N12P (9 stator slots, 12 magnet poles) | iFlight product page |
| Battery | 3S LiPo (12 V) | iFlight product page |
| Weight | 5.8 g (with wires) | iFlight product page |
| Dimensions | φ15.3 × 14.2 mm (with shaft); body 11.2 mm tall (the drawing gives φ15.3 ± 0.05 mm and 11.2 ± 0.2 mm) | iFlight 6200KV test report |
| Shaft | 1.5 mm, protrudes 3 mm | iFlight product page |
| Mounting | 3 × M2 holes (φ2 mm) on a 9 mm circle; base plate 1.5 mm (iFlight's table says 9*9-φ2mm (3 mounting holes); its drawing dimensions them as 3-M2 on a φ9 circle) | iFlight 6200KV test report |
| Bell | segmented (iFlight's term) | iFlight product page |
| Magnets | N52H, curved | iFlight product page |
| Bearings | NMB φ5 × φ2 × 2.5 mm | iFlight 6200KV test report |
| Winding | single-strand copper | iFlight product page |
| Interphase resistance | 202 mΩ | iFlight product page |
| Peak current | 7.85 A (100% throttle, Defender 20 2020-3 prop, 12 V) | iFlight 6200KV test report |
| Max power | 89.7 W | iFlight 6200KV test report |
| Leads | 28 AWG, 60 mm, with an SH1.25 3-pin plug (the product page lists 60 mm, 28 AWG) | iFlight 6200KV test report |
| In the box | 4 × M2×4 screws | iFlight product page |
Bench data
Redrawn from iFlight’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
6200KV on 3S, 12 V1 prop
| Prop | Throttle | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|
| Defender 20 2020-3 (2-inch, three blades)motor at 73 °C | 50% | 11.92 | 1.76 | 73 | 21 | 3.48 |
| 60% | 11.85 | 2.94 | 98 | 34.8 | 2.81 | |
| 70% | 11.76 | 4.68 | 128 | 55 | 2.33 | |
| 80% | 11.69 | 6.13 | 148 | 71.7 | 2.07 | |
| 90% | 11.6 | 7.05 | 164 | 81.8 | 2.01 | |
| 100% | 11.43 | 7.85 | 177 | 89.7 | 1.97 |
Source: iFlight 6200KV test report
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Bell. Segmented, in iFlight's words, φ15.3 mm and 7.5 mm tall at the side, with four arms across the top and a direction arrow. (iFlight 6200KV test report)
- Shaft. 1.5 mm, protruding 3 mm above the bell; its end also stands out below the base. (iFlight 6200KV test report)
- Magnets. Curved N52H magnets, 12 poles. (iFlight product page)
- Stator. 12 × 4 mm with 9 teeth, wound with single-strand copper; 28 AWG leads, 60 mm long, with an SH1.25 plug. (iFlight 6200KV test report)
- Bearings. NMB, 5 × 2 × 2.5 mm. (iFlight 6200KV test report)
- Base. 1.5 mm thick, with three M2 holes on a 9 mm circle. (iFlight 6200KV test report)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 6200KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 91,760 | 9,176 Hz | 55,056 |
| 4S full | 16.8 | 104,160 | 10,416 Hz | 62,496 |
| 6S nominal | 22.2 | 137,640 | 13,764 Hz | 82,584 |
| 6S full | 25.2 | 156,240 | 15,624 Hz | 93,744 |
A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.
About the 3D model
A generic outrunner drawn from iFlight’s published sizes: the 12 × 4 mm stator, 15.3 mm bell, 11.2 mm height, 1.5 mm shaft, 9 mm mounting circle and 9 teeth and 12 magnets. Anything iFlight doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- iFlight: Defender 20 Motor (product page with a CW/CCW mark picker, and its product photos). Retrieved Oct 19, 2026.

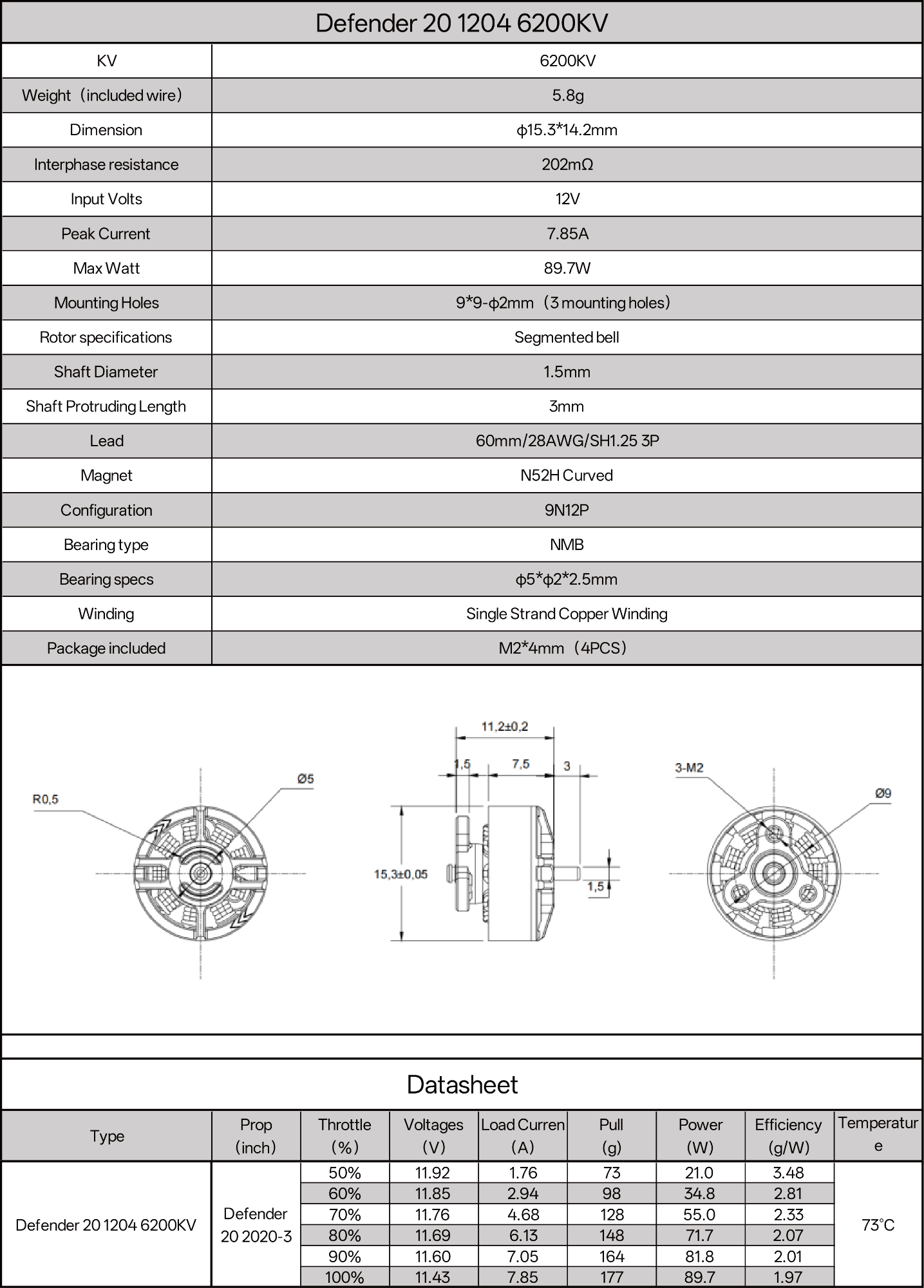

- iFlight: Defender 20 1204 6200KV test report (spec table, dimension drawing, thrust data). Retrieved Oct 19, 2026.
- iFlight: Defender 20 Frame Kit (product page: 2-inch prop guards, 9 × 9 mm motor mounts). Retrieved Oct 19, 2026.
- iFlight: Defender 20 battery (product page: 3S 900 mAh). Retrieved Oct 19, 2026.
