1.8-inch cinewhoop motor
iFlight Defender 16 1002
The 2.7 g motor of the first Defender 16, iFlight's sub-250 g 1.8-inch cinewhoop: 14000KV on 2S, and 115 g of pull per motor on the Defender 16's tri-blade on iFlight's 8 V bench.
- 1.8-inch cinewhoops, such as iFlight's Defender 16 built before March 2024
- 2S
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 1002 motor drawn from iFlight’s published sizes, not its exact design. Thrust, current and power are iFlight’s bench figures for the Defender 16 1809-3 prop at 8 V, read straight across between its throttle steps. Its data starts at 50% throttle.
- Max thrust
- 115 g
- Defender 16 1809-3 prop, 8 V
- Weight
- 2.7 g
- with wires
- Peak current
- 6.9 A
- full throttle
- Max power
- 53 W
- full throttle
from $13.99a motor at iFlight
A set of four: $55.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
iFlight’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the Defender 16 1809-3: 68 g of thrust, 2.9 A, 23 W, 3.00 g per watt.
On your quad
0.7 : 1
Thrust to weight at full throttle: four motors pull 460 g with the Defender 16 1809-3 at 8 V.
At 60% throttle they pull 272 g, 0.4 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $13.99
Made for the Defender 16
iFlight designed it for ultralight sub-250 g builds on its Defender 16 frame with a whoop-style AIO board.
Source: iFlight product page
Replaced by a 1103
On 5 March 2024 iFlight moved the Defender 16 from this 1002 to a 1103 14000KV motor and still sells both. iFlight says the two need different configuration dumps, so don't mix them on one quad.
Source: iFlight product page
2.7 g with wires
On a 10 × 2 mm stator with a φ12.5 mm bell.
Plug-in leads
50 mm, 28 AWG leads ending in an SH1.25 3-pin plug.
Source: iFlight product page
Curved N52H magnets
Arc-shaped N52H magnets, 12 poles on a 9-slot stator, with single-strand windings: 269 mΩ between phases.
Source: iFlight product page
What to pair it with
Our reading of iFlight’s numbers, so your build matches what the motor was tested with.
- ESC
- Rated for at least 6.87 A, the peak iFlight measured at full throttle on the Defender 16 tri-blade at about 8 V. (iFlight 1002 test report)
- Props
- iFlight tested it with the Defender 16 1809-3, a 1.8-inch tri-blade with a 0.9-inch pitch: 48 g at half throttle and 115 g at full. (iFlight 1002 test report, iFlight Defender 16 prop page)
- Battery
- 2S; iFlight gives 8 V as the input, and the battery it sells for the Defender 16 is a 2S 900 mAh pack. (iFlight product page, iFlight Defender 16 battery page)
- Frame
- Three M1.4 holes on a 6.6 mm circle, the Defender 16 frame's motor mount. Four M1.4×3 screws come in the box. (iFlight product page, iFlight 1002 test report)
Where to buy
- iFlightthe maker's store; one motor, 1002 version, CW or CCW mark$13.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 14,000 rpm/V (the only KV; the same page sells the 1103 14000KV that replaced this motor) | iFlight product page |
| Stator | 10 × 2 mm (1002) | iFlight product page |
| Configuration | 9N12P (9 stator slots, 12 magnet poles) | iFlight product page |
| Battery | 2S LiPo (8 V) | iFlight product page |
| Weight | 2.7 g (with wires) | iFlight product page |
| Dimensions | φ12.5 × 12.5 mm (from the shaft's end below the base to its tip); 9.25 mm to the top of the bell | iFlight 1002 test report |
| Shaft | 1.5 mm, protrudes 3.25 mm (the product page says 3.5 mm for both versions) | iFlight 1002 test report |
| Mounting | 3 × M1.4 holes (φ1.4 mm) on a 6.6 mm circle; base plate 1 mm (iFlight's table says 6.6*6.6-φ1.4mm (3 mounting holes); its drawing dimensions them as 3-M1.4 on a φ6.6 circle) | iFlight 1002 test report |
| Bell | segmented (iFlight's term) | iFlight product page |
| Magnets | N52H, curved | iFlight product page |
| Bearings | NMB φ4 × φ1.5 × 2 mm | iFlight 1002 test report |
| Winding | single-strand copper | iFlight product page |
| Interphase resistance | 269 mΩ | iFlight product page |
| Peak current | 6.87 A (100% throttle, Defender 16 1809-3 prop, 8 V) | iFlight 1002 test report |
| Max power | 53.2 W | iFlight 1002 test report |
| Leads | 28 AWG, 50 mm, with an SH1.25 3-pin plug | iFlight product page |
| In the box | 4 × M1.4×3 screws | iFlight product page |
Bench data
Redrawn from iFlight’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
14000KV on 2S, 8 V1 prop
| Prop | Throttle | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|---|
| Defender 16 1809-3 (1.8-inch, three blades)motor at 71 °C | 50% | 7.99 | 1.78 | 48 | 14.2 | 3.38 |
| 60% | 7.95 | 2.85 | 68 | 22.7 | 3 | |
| 70% | 7.89 | 3.78 | 80 | 29.8 | 2.68 | |
| 80% | 7.84 | 5.33 | 95 | 41.8 | 2.27 | |
| 90% | 7.8 | 6.53 | 112 | 50.9 | 2.2 | |
| 100% | 7.75 | 6.87 | 115 | 53.2 | 2.16 |
Source: iFlight 1002 test report
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Bell. Segmented, in iFlight's words, φ12.5 mm and 5.15 mm tall at the side, with four arms across the top. (iFlight 1002 test report)
- Shaft. 1.5 mm, protruding 3.25 mm above the bell; its end also stands out below the base. (iFlight 1002 test report)
- Magnets. Curved N52H magnets, 12 poles. (iFlight product page)
- Stator. 10 × 2 mm with 9 teeth, wound with single-strand copper; 28 AWG leads, 50 mm long, with an SH1.25 plug. (iFlight 1002 test report)
- Bearings. NMB, 4 × 1.5 × 2 mm. (iFlight 1002 test report)
- Base. 1 mm thick, with three M1.4 holes on a 6.6 mm circle. (iFlight 1002 test report)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 14000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 207,200 | 20,720 Hz | 124,320 |
| 4S full | 16.8 | 235,200 | 23,520 Hz | 141,120 |
| 6S nominal | 22.2 | 310,800 | 31,080 Hz | 186,480 |
| 6S full | 25.2 | 352,800 | 35,280 Hz | 211,680 |
A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.
About the 3D model
A generic outrunner drawn from iFlight’s published sizes: the 10 × 2 mm stator, 12.5 mm bell, 1.5 mm shaft, 6.6 mm mounting circle and 9 teeth and 12 magnets. Anything iFlight doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- iFlight: Defender 16 Motor (product page with a 1002/1103 version picker and a CW/CCW mark picker; it opens on the 1002). Retrieved Oct 19, 2026.

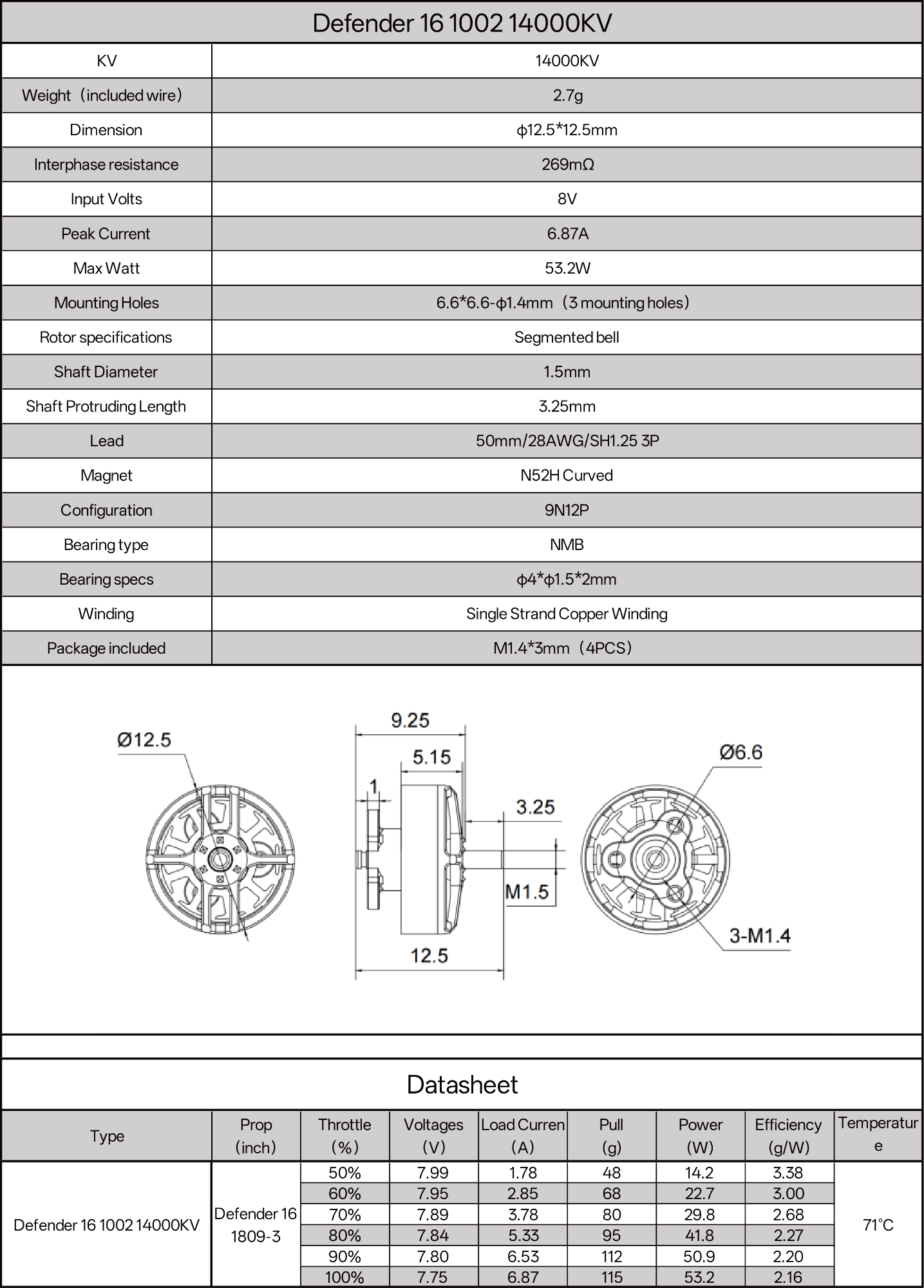

- iFlight: Defender 16 1002 14000KV test report (spec table, dimension drawing, thrust data). Retrieved Oct 19, 2026.
- iFlight: Defender 16 Prop Set (product page: the 1809-3 is 1.8 inch, 0.9-inch pitch, three blades). Retrieved Oct 19, 2026.
- iFlight: Defender 16 battery (product page: 2S 900 mAh). Retrieved Oct 19, 2026.
