7-inch long-range and cinelifter motor
Hyperlite E-Series 2807.5
A 55 g long-range and cinelifter motor for 4S–6S, with 12 × 6 × 4 mm bearings, N52H arc magnets, an Al 7075 bell and base, and a 19 × 19 mm M3 mount.
- 7-inch long range and cinelifters
- 4S–6S
- 19 × 19 mm M3 motor mounts
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2807.5 motor drawn from Hyperlite’s published sizes, not its exact design. No-load speed is KV × 22.2 V, a nominal pack for this version. Hyperlite publishes no bench data for it.
- Weight
- 55 g
- with 16 cm wires
from $25.99a motor at Pyrodrone
A set of four: $103.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What you get for $25.99
Team Edition parts, steel shaft
Pyrodrone says the E-Series uses the same materials as its Hyperlite Team Edition line, with a stainless steel hollow shaft in place of titanium alloy.
Source: Pyrodrone 1322KV page
Three KVs
1122KV, 1322KV and 1722KV, all rated 4S–6S.
Source: Pyrodrone 1322KV page, Pyrodrone 1722KV page, Pyrodrone 1122KV page
Large bearings
12 × 6 × 4 mm bearings, N52H arc magnets, and an Al 7075 bell cap and base.
Source: Pyrodrone 1322KV page
55 g
Pyrodrone lists 55 g with 16 cm leads.
Source: Pyrodrone 1322KV page
What to pair it with
Our reading of Hyperlite’s numbers, so your build matches what the motor was tested with.
- Battery
- 4S–6S LiPo. (Pyrodrone 1322KV page)
- Frame
- A 19 × 19 mm pattern with M3 screws. (Pyrodrone 1322KV page)
- Props
- An M5 prop thread; Pyrodrone sells it for long range and cinelifters. (Pyrodrone 1322KV page)
Where to buy
- PyrodroneHyperlite's own store; 1322KV$25.99seen Oct 19, 2026Visit
- Pyrodrone1122KV$25.99seen Oct 19, 2026Visit
- Pyrodrone1722KV, out of stock on the day checked$25.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 1,322 rpm/V (also 1122KV and 1722KV, each on its own page) | Pyrodrone 1322KV page |
| Stator | 0.15 mm Nippon Steel silicon-steel laminations (sold as a 2807.5) | Pyrodrone 1322KV page |
| Configuration | 12N14P (12 stator slots, 14 magnet poles) | Pyrodrone 1322KV page |
| Battery | 4S–6S LiPo (all three KVs) | Pyrodrone 1322KV page |
| Weight | 55 g (with 16 cm wires) | Pyrodrone 1322KV page |
| Shaft | stainless steel, hollow; M5 prop thread | Pyrodrone 1322KV page |
| Mounting | 19 × 19 mm, M3 | Pyrodrone 1322KV page |
| Bell | Al 7075 bell cap and base casing | Pyrodrone 1322KV page |
| Magnets | N52H arc magnets | Pyrodrone 1322KV page |
| Bearings | 12 × 6 × 4 mm | Pyrodrone 1322KV page |
| Leads | 18 AWG, 16 cm (20 AWG on the 1722KV (S2)) | Pyrodrone 1322KV page |
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Shaft. stainless steel, hollow; M5 prop thread. (Pyrodrone 1322KV page)
- Bell. Al 7075 bell cap and base casing. (Pyrodrone 1322KV page)
- Magnets. N52H arc magnets. (Pyrodrone 1322KV page)
- Stator. The coils are wound on a stack of thin steel laminations: 0.15 mm Nippon Steel silicon-steel laminations (sold as a 2807.5). (Pyrodrone 1322KV page)
- Bearings. 12 × 6 × 4 mm. (Pyrodrone 1322KV page)
- Base. 19 × 19 mm, M3. (Pyrodrone 1322KV page)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1322KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 19,566 | 2,283 Hz | 13,696 |
| 4S full | 16.8 | 22,210 | 2,591 Hz | 15,547 |
| 6S nominal | 22.2 | 29,348 | 3,424 Hz | 20,544 |
| 6S full | 25.2 | 33,314 | 3,887 Hz | 23,320 |
A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.
About the 3D model
A generic outrunner drawn from Hyperlite’s published sizes: the 2807.5 stator, 19 mm mounting circle and 12 teeth and 14 magnets. Anything Hyperlite doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- Pyrodrone (Hyperlite's own store): Hyperlite 2807.5 E-Series Long Range & Cinelifter Motor - 1322KV (product page, read through r.jina.ai). Retrieved Oct 19, 2026.
- Pyrodrone (Hyperlite's own store): Hyperlite 2807.5 E-Series Long Range & Cinelifter Motor - 1722KV (product page, read through r.jina.ai). Retrieved Oct 19, 2026.
- Pyrodrone (Hyperlite's own store): Hyperlite 2807.5 E-Series Long Range & Cinelifter Motor - 1122KV (product page, read through r.jina.ai). Retrieved Oct 19, 2026.

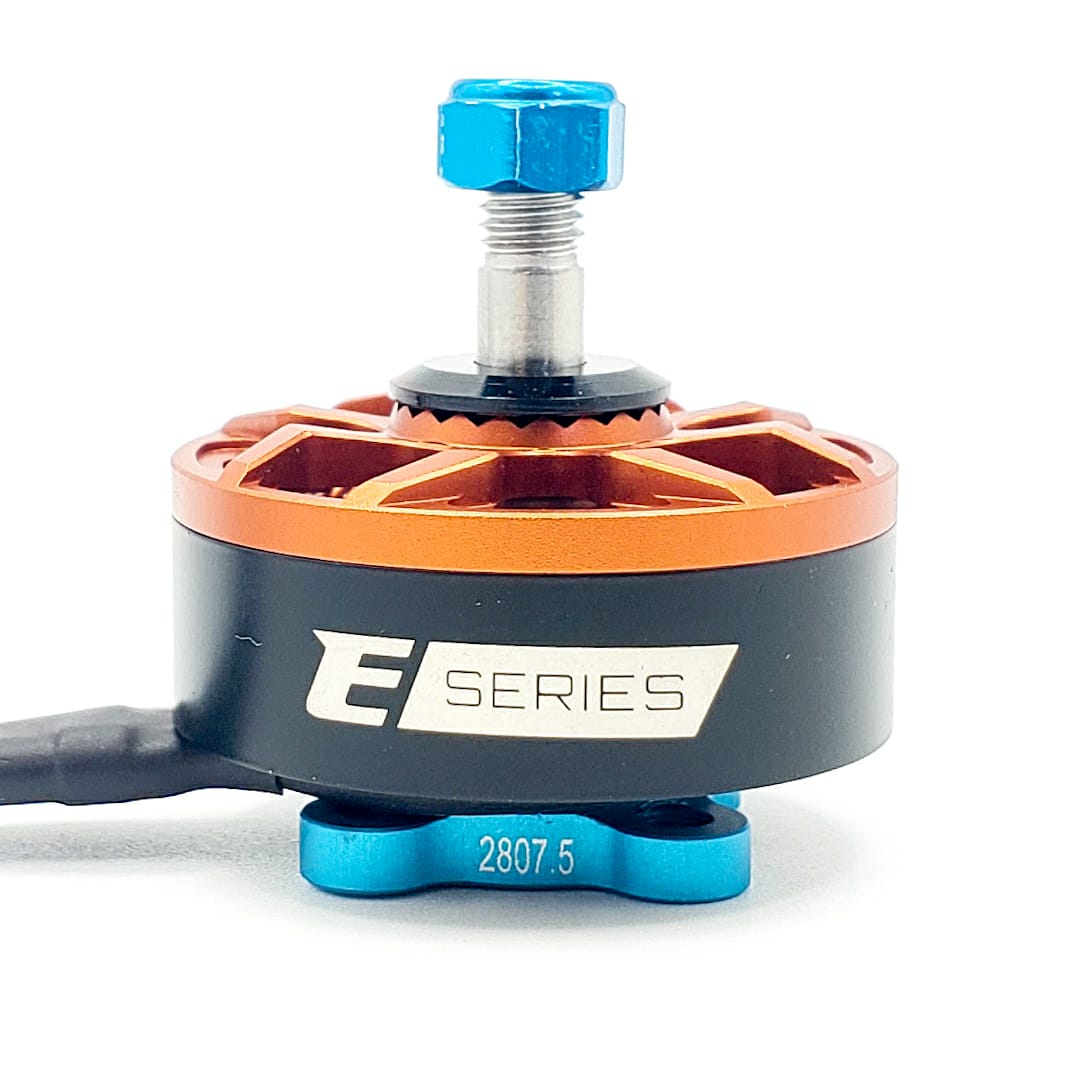

- Pyrodrone: Hyperlite 2807.5 E-Series main product photo, used for finish. Retrieved Oct 19, 2026.

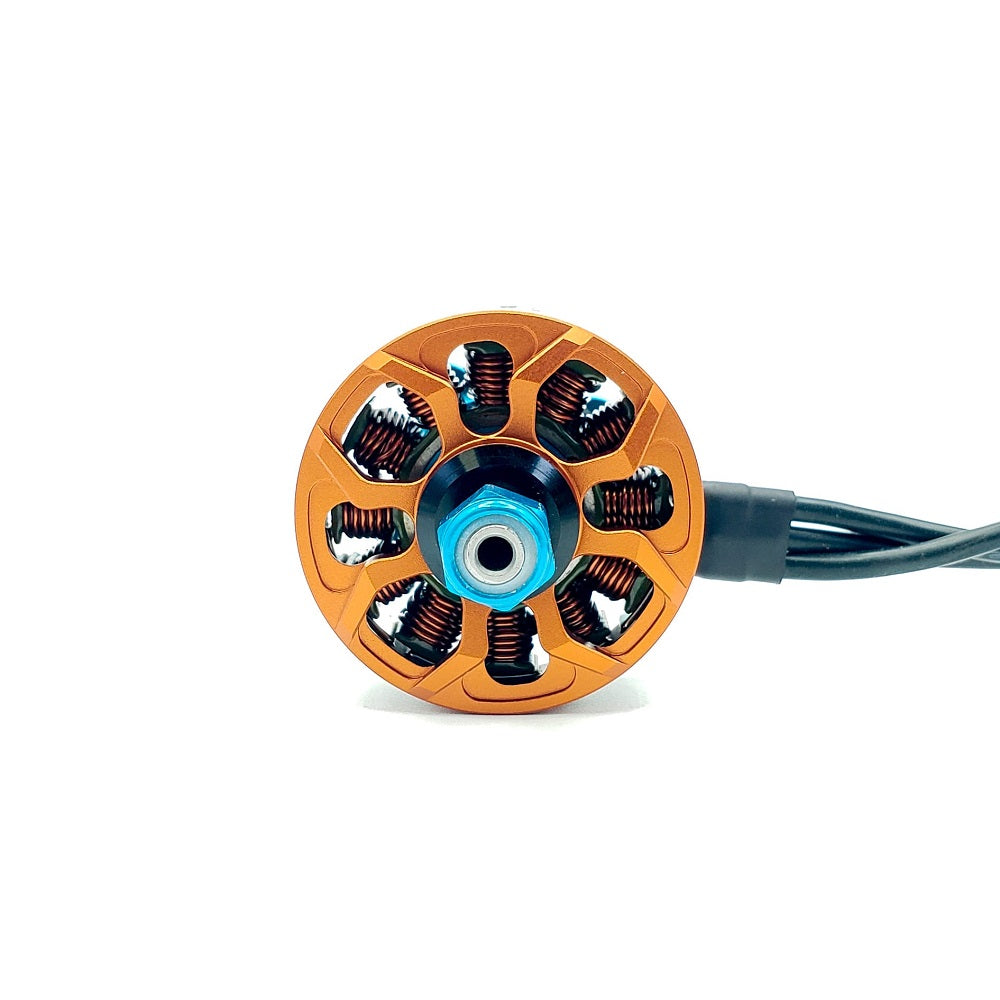

- Pyrodrone: Hyperlite 2807.5 E-Series photo of the top of the bell, used to count its spokes. Retrieved Oct 19, 2026.
