2–3-inch toothpick motor
Flywoo ROBO 1202.5
A 3.8 g motor for 2- and 3-inch ultralight builds on 1S or 2S; on Flywoo's 7.4 V bench it pulls 223–227 g with 65 mm props.
- 2- and 3-inch ultralight toothpicks
- 1S–2S
- 65 mm and 3-inch props
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 1202.5 motor drawn from Flywoo’s published sizes, not its exact design. Thrust, current and power are Flywoo’s bench figures for the HQ T65R prop at 7.4 V, read straight across between its throttle steps. Its data starts at 50% throttle.
- Max thrust
- 227 g
- HQ T65R prop, 7.4 V
- Weight
- 3.8 g
- Peak current
- 12.0 A
- full throttle
- Max power
- 89 W
- full throttle
from $12.99a motor at Flywoo
A set of four: $51.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
Flywoo’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the HQ T65R: 117 g of thrust, 5.2 A, 38 W, 3.26 g per watt.
On your quad
1.4 : 1
Thrust to weight at full throttle: four motors pull 908 g with the HQ T65R at 7.4 V.
At 60% throttle they pull 466 g, 0.7 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $12.99
Two NSK bearings
Flywoo says the dual-bearing design holds the shaft steadier, with less noise and vibration.
Source: Flywoo product page
3.8 g
3.8 g on Flywoo's scale, with 150 mm leads and no plug.
Source: Flywoo product page
Bench numbers
227 g at 12 A on an HQ T65 at 7.4 V; 136 g at 8.4 A on an HQ 3 × 2 at 3.7 V.
Source: Flywoo bench table
What to pair it with
Our reading of Flywoo’s numbers, so your build matches what the motor was tested with.
- ESC
- Up to 12 A per motor on 2S with 65 mm props, 8.4 A on 1S with a 3-inch prop, on Flywoo's bench. (Flywoo bench table)
- Props
- Flywoo tested Gemfan and HQ 65 mm props, an HQ 3 × 2 and a Gemfan 3018. (Flywoo bench table)
- Battery
- 1S or 2S. (Flywoo product page)
- Frame
- Four M2 screws in a 9 × 9 mm pattern; four M2×4 screws come with each motor. (Flywoo product page, Flywoo drawing)
Where to buy
- Flywoothe maker's store; 1 motor ($59.99 for 5)$12.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 11,500 rpm/V (Flywoo's spec list also names a 5500KV version, which this page does not sell) | Flywoo product page |
| Stator | 12 × 2.5 mm (1202.5) | Flywoo product page |
| Battery | 1S–2S LiPo | Flywoo product page |
| Weight | 3.8 g | Flywoo product page |
| Dimensions | φ15.86 × 9 mm, with 4.8 mm of shaft above the bell | Flywoo drawing |
| Shaft | 1.6 mm, protrudes 4.8 mm (Flywoo's spec list says M1.5) | Flywoo drawing |
| Mounting | 4 × M2, 9 × 9 mm pattern (opposite holes 9 mm apart) | Flywoo drawing |
| Bell | 4 × M2 holes 5 mm apart in the top | Flywoo drawing |
| Bearings | NSK, two bearings | Flywoo product page |
| Peak current | 12 A (100% throttle, HQ T65 prop, 7.4 V) | Flywoo bench table |
| Max power | 88.8 W | Flywoo bench table |
| Leads | 150 mm, no plug | Flywoo product page |
| In the box | 1 motor, 4 × M2×4 screws | Flywoo product page |
Bench data
Redrawn from Flywoo’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
11500KV on 1S–2S5 props
| Prop | Throttle | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|
| HQ T65R (HQProp 65 mm)at 7.4 Vmotor at 85 °C | 50% | 3.5 | 89 | 25.9 | 3.436 |
| 100% | 12 | 227 | 88.8 | 2.556 | |
| GF65R (Gemfan 65 mm)at 7.4 Vmotor at 75 °C | 50% | 2.4 | 86 | 17.8 | 4.842 |
| 100% | 9.6 | 223 | 71 | 3.139 | |
| HQ T3X2R (HQProp 3 × 2)at 3.7 Vmotor at 73 °C | 50% | 2.3 | 61 | 8.5 | 7.168 |
| 100% | 8.4 | 136 | 31.1 | 4.376 | |
| HQ T65R (HQProp 65 mm)at 3.7 Vmotor at 68 °C | 50% | 1.7 | 44 | 6.3 | 6.995 |
| 100% | 5.9 | 118 | 21.8 | 5.405 | |
| GF65R (Gemfan 65 mm)at 3.7 Vmotor at 65 °C | 50% | 1.15 | 44 | 4.3 | 10.341 |
| 100% | 4.9 | 116 | 18.1 | 6.398 |
Source: Flywoo bench table
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

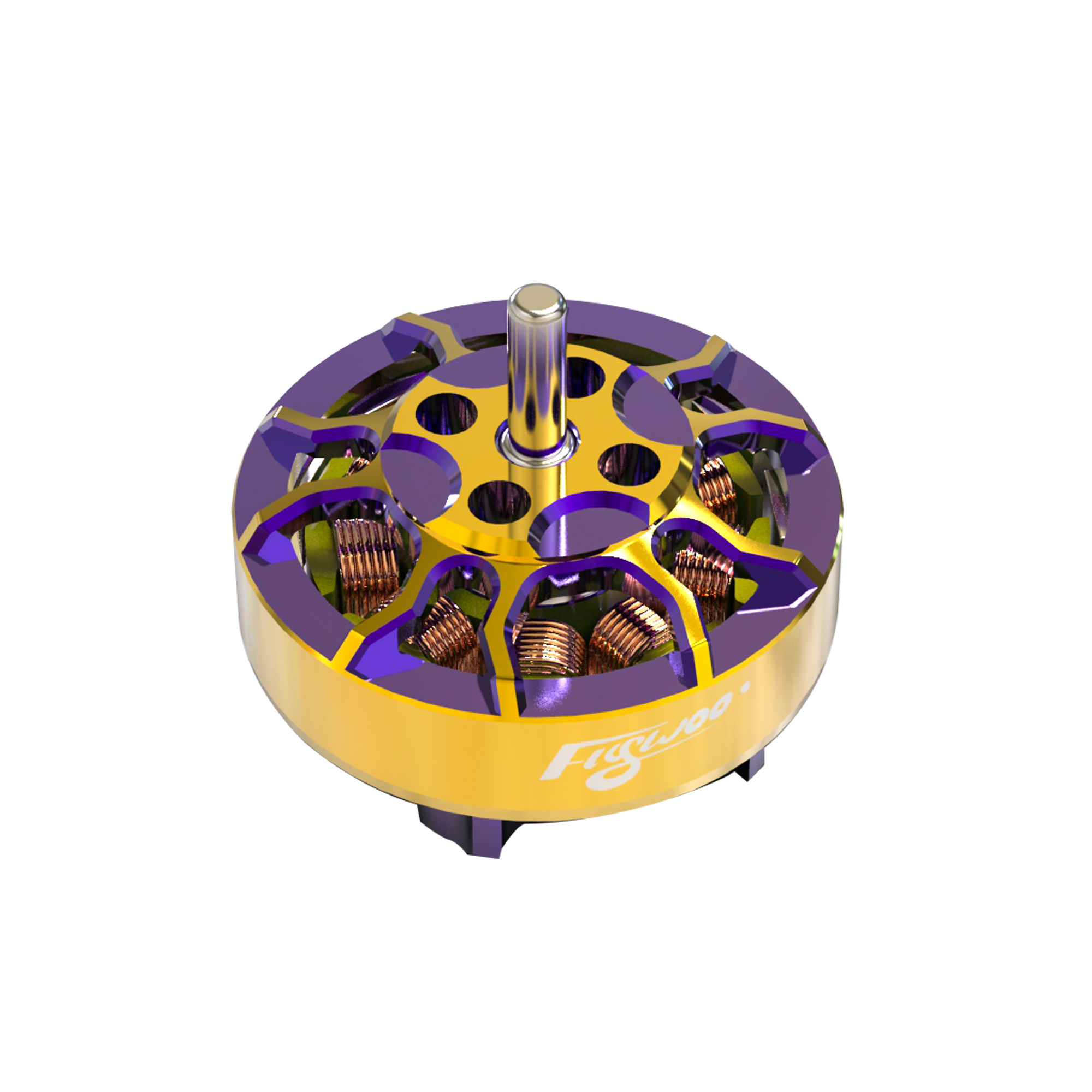

- Bell. Gold on the side, with a purple and gold top and a purple base. Four M2 holes, 5 mm apart, in the top. (Flywoo product photo)
- Bearings. Two NSK bearings. (Flywoo product page)
- Stator. 12 mm across and 2.5 mm tall. (Flywoo product page)
- Leads. 150 mm, without a plug. (Flywoo product page)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 11500KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 170,200 | 17,020 Hz | 102,120 |
| 4S full | 16.8 | 193,200 | 19,320 Hz | 115,920 |
| 6S nominal | 22.2 | 255,300 | 25,530 Hz | 153,180 |
| 6S full | 25.2 | 289,800 | 28,980 Hz | 173,880 |
A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.
About the 3D model
A generic outrunner drawn from Flywoo’s published sizes: the 12 × 2.5 mm stator, 15.86 mm bell, 9 mm height, 1.6 mm shaft and 9 mm mounting circle. Anything Flywoo doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
Sources
- Flywoo: ROBO 1202.5 11500kv FPV Motor Gold/Purple (New Version) (product page). Retrieved Oct 19, 2026.
- Flywoo: ROBO 1202.5 outline drawing (image on the product page). Retrieved Oct 19, 2026.
- Flywoo: ROBO 1202.5 11500KV load data (image on the product page). 50% and 100% throttle at 3.7 V and 7.4 V; temperatures after 3 s at full throttle. The GF3018 table is left out: its second throttle cell is misprinted as 3.7.. Retrieved Oct 19, 2026.
- Flywoo: ROBO 1202.5 main product photo, used for finish. Retrieved Oct 19, 2026.
