Flywoo ROBO 1003

What it pulls

Flywoo’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $13.99

• Two bearings

  Flywoo says the dual-bearing design holds the shaft steadier, with less noise and vibration.

  Source: Flywoo product page

• N52H arc magnets

  N52H arc magnets, which Flywoo says give quicker throttle response, more torque and more thrust.

  Source: Flywoo product page

• 200 °C winding

  Copper wire rated for 200 °C on Kawasaki silicon steel.

  Source: Flywoo product page

• Solder pads

  The leads are soldered to pads on the base, which Flywoo says stops them pulling out of the stator.

  Source: Flywoo product page

• Bench numbers

  170 g at 10.5 A with a Gemfan 45 mm three-blade on 7.4 V, and 141 g at 8.6 A with a Gemfan 1608.

  Source: Flywoo bench table

What to pair it with

Our reading of Flywoo’s numbers, so your build matches what the motor was tested with.

ESC

Up to 10.5 A per motor at full throttle on Flywoo's 2S bench. (Flywoo bench table)

Props

Flywoo tested Gemfan 1608 and 1635 three-blade, 1609 and 1635 four-blade, and 45 mm two- and three-blade props. (Flywoo bench table)

Battery

1S or 2S. (Flywoo product page)

Frame

Three M1.4 screws on a 6.6 mm circle; a pack of screws comes with each motor. (Flywoo product page)

Where to buy

• Flywoothe maker's store; 1 motor ($59.99 for 5)
  $13.99seen Oct 19, 2026
  Visit
• RaceDayQuads
  price on the store’s page
  Visit
• WREKD
  price on the store’s page
  Visit
• NewBeeDrone
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Flywoo’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

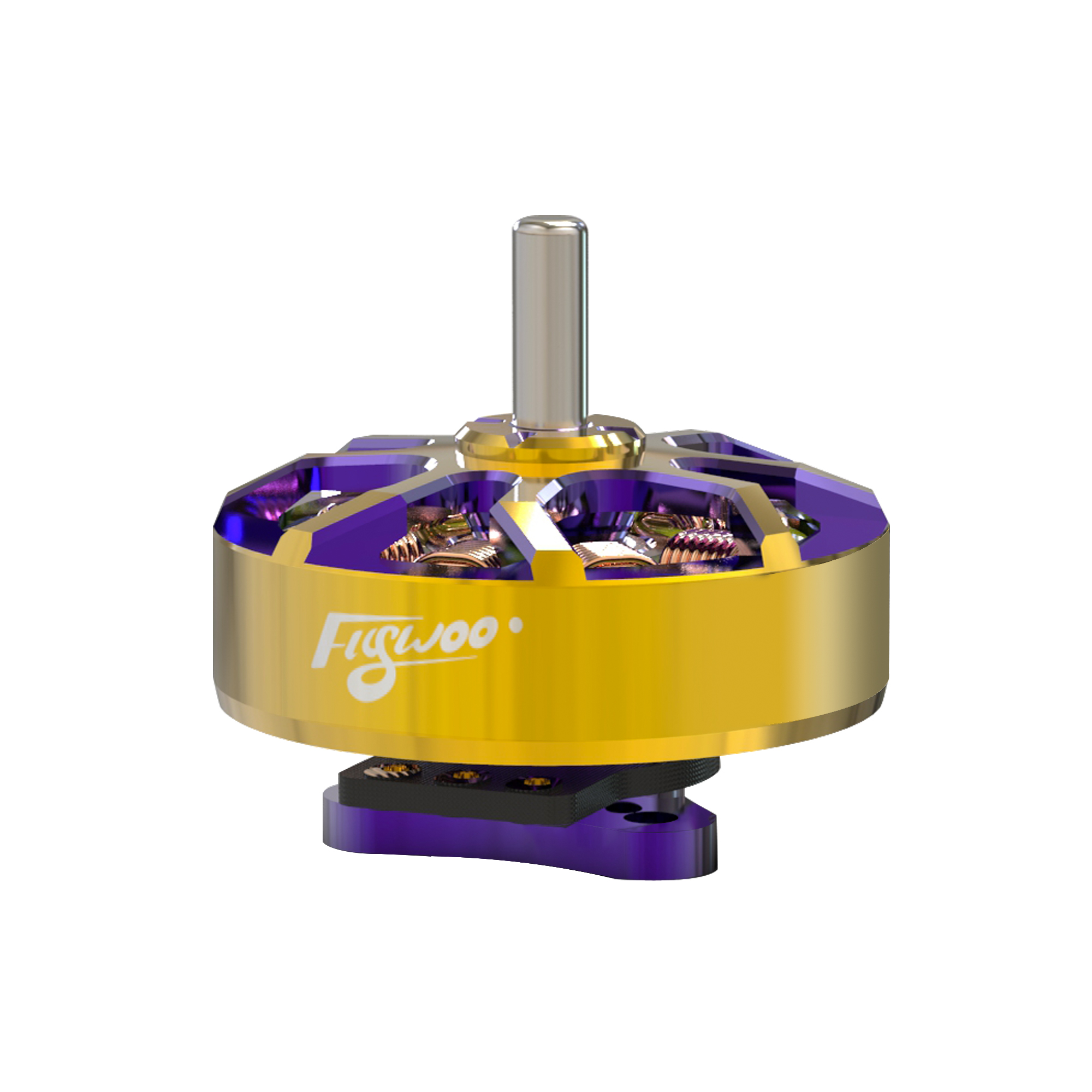

• Bell. CNC-machined 7075 aluminium, anodised gold on the side and purple on the top and base, with eight spokes on the top. (Flywoo product page)
• Magnets. N52H arc magnets, 12 poles. (Flywoo product page)
• Stator. 10 mm across and 3 mm tall with 9 slots, Kawasaki silicon steel, wound with copper wire rated for 200 °C. (Flywoo product page)
• Bearings. Two bearings. (Flywoo product page)
• Leads. Soldered to pads on the base. (Flywoo product page)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 14800KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.

About the 3D model

A generic outrunner drawn from Flywoo’s published sizes: the 10 × 3 mm stator, 13.5 mm bell, 8.8 mm height, 1.5 mm shaft, 6.6 mm mounting circle and 9 teeth and 12 magnets. Anything Flywoo doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Flywoo: ROBO 1003 14800KV 1-2S Fpv Motor (product page, with its parameter list and feature images). Retrieved Oct 19, 2026.
2. Flywoo: ROBO 1003 product parameters (bench table image on the product page). 50% and 100% throttle at 7.4 V for six props; temperatures after 3 s at full throttle. The current column's header is misprinted as "3"; its values are amps (power = 7.4 V × current).. Retrieved Oct 19, 2026.
3. Flywoo: ROBO 1003 dimensional drawing (image on the product page). Retrieved Oct 19, 2026.
4. Flywoo: ROBO 1003 main product photo, used for finish. Retrieved Oct 19, 2026.
