1S tiny whoop and toothpick motor
Flywoo ROBO 1002
A 2.5 g motor for 1S whoops and toothpicks; on Flywoo's 3.7 V bench the 23500KV pulls 72–93 g at full throttle, depending on the prop.
- 1S whoops and toothpicks
- 1S
- Gemfan 1610 to 2023 props
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 1002 motor drawn from Flywoo’s published sizes, not its exact design. Thrust, current and power are Flywoo’s bench figures for the GF2015R*2 prop at 3.7 V, read straight across between its throttle steps. Its data starts at 50% throttle.
- Max thrust
- 93 g
- GF2015R*2 prop, 3.7 V
- Weight
- 2.5 g
- with 5 cm of wire
- Peak current
- 10.9 A
- full throttle
- Max power
- 40 W
- full throttle
from $12.99a motor at Flywoo
A set of four: $51.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What it pulls
Flywoo’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.
At 60% with the GF2015R*2: 54 g of thrust, 5.0 A, 18 W, 3.18 g per watt.
On your quad
0.6 : 1
Thrust to weight at full throttle: four motors pull 372 g with the GF2015R*2 at 3.7 V.
At 60% throttle they pull 215 g, 0.3 times the quad’s weight.
All-up weight is the quad ready to fly, with its battery and camera. The thrust is the maker’s static bench figure; in the air it is lower.
What you get for $12.99
Two bearings
Flywoo says the new dual-bearing structure holds the shaft steadier, with less noise and vibration.
Source: Flywoo product page
Over 84% efficient
Flywoo gives over 84% efficiency between 2 and 4 A.
Source: Flywoo product page
7075 bell
7075 aluminium, anodised in two colours: purple and gold.
Source: Flywoo product page
Bench numbers
At full throttle on 3.7 V with a Gemfan 1635 three-blade: 75 g for the 23500KV, 64 g for the 19800KV.
Source: Flywoo 23500KV data
What to pair it with
Our reading of Flywoo’s numbers, so your build matches what the motor was tested with.
- ESC
- On Flywoo's 3.7 V bench the 23500KV draws 7.9–14 A at full throttle depending on the prop, the 19800KV 6.6–11.8 A. Flywoo marks both Gemfan 2023 runs as hot (84 °C and 80 °C after 3 s). (Flywoo 19800KV data, Flywoo 23500KV data)
- Props
- Flywoo tested Gemfan 1610 two-blade, 1635 three- and four-blade, 2015 two-blade and 2023 three-blade props. With the 2015 the 23500KV reaches 93 g. (Flywoo 19800KV data, Flywoo 23500KV data)
- Battery
- 1S. (Flywoo product page)
- Frame
- Three M1.4 screws on a 6.6 mm circle; M1.4×3 screws come with each motor. (Flywoo product page, Flywoo drawing)
Where to buy
- Flywoothe maker's store; 1 motor, either KV ($59.99 for 5)$12.99seen Oct 19, 2026Visit
- RaceDayQuads23500KVprice on the store’s pageVisit
- WREKD23500KVprice on the store’s pageVisit
- GetFPV19800KV or 23500KVprice on the store’s pageVisit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 23,500 rpm/V (also 19800KV) | Flywoo product page |
| Stator | 10 × 2 mm (1002) | Flywoo product page |
| Configuration | 9N12P (9 stator slots, 12 magnet poles) | Flywoo product page |
| Battery | 1S LiPo | Flywoo product page |
| Weight | 2.5 g (with 5 cm of wire) | Flywoo product page |
| Dimensions | φ13.5 × 7.75 mm, with 3.45 mm of shaft above the bell | Flywoo drawing |
| Shaft | 1.5 mm, protrudes 3.45 mm | Flywoo drawing |
| Mounting | 3 × M1.4 holes on a 6.6 mm circle | Flywoo drawing |
| Bell | 7075 aluminium, anodised in two colours | Flywoo product page |
| Bearings | two bearings (dual-bearing design) | Flywoo product page |
| Internal resistance | 75 mΩ (89 mΩ for the 19800KV) | Flywoo product page |
| Idle current | 1.5 A (as Flywoo prints it, "Idle current(5)@5V"; 1.3 A for the 19800KV) | Flywoo product page |
| Max current | 14 A (Flywoo labels it 3S, but it equals the full-throttle current with a Gemfan 2023 on its 3.7 V bench; 11.8 A for the 19800KV) | Flywoo product page |
| Max continuous power | 52 W (also labelled 3S; 44 W for the 19800KV) | Flywoo product page |

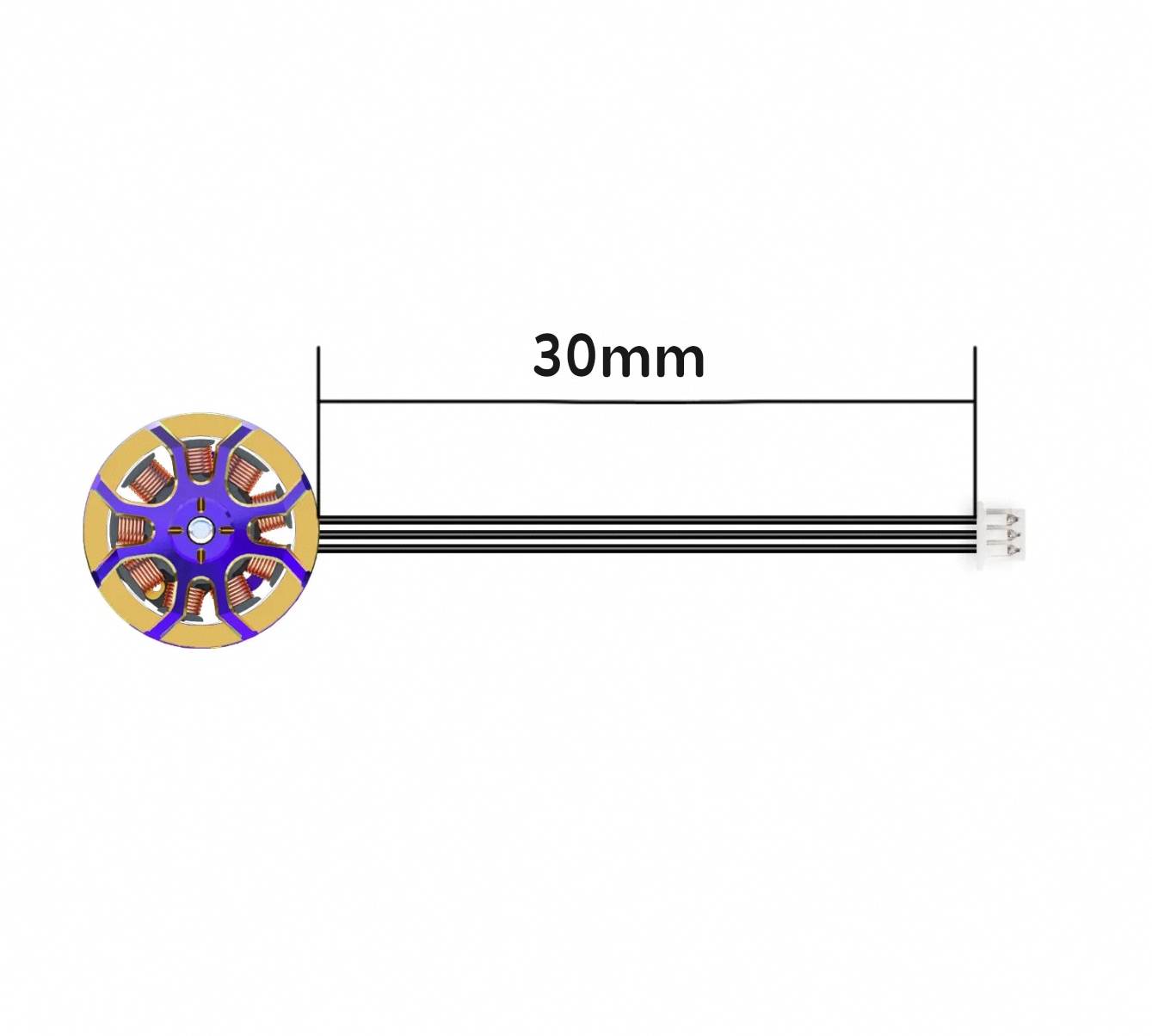

| Leads | 30 mm, 3-pin plug, soldered to pads on the base | Flywoo lead image |
| In the box | 1 motor, 1 pack of M1.4×3 screws | Flywoo product page |
Bench data
Redrawn from Flywoo’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.
19800KV on 1S, 3.7 V5 props
| Prop | Throttle | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|
| GF2015R*2 (Gemfan 2015, 2-blade)motor at 68 °C | 50% | 2.9 | 37 | 10.7 | 3.448 |
| 100% | 9.2 | 79 | 34 | 2.321 | |
| GF1635R*4 (Gemfan 1635, 4-blade)motor at 65 °C | 50% | 2.5 | 30 | 9.3 | 3.243 |
| 100% | 8.8 | 68 | 32.6 | 2.088 | |
| GF2023R*3 (Gemfan 2023, 3-blade)motor at 80 °C | 50% | 3.7 | 36 | 13.7 | 2.63 |
| 100% | 11.8 | 65 | 43.7 | 1.489 | |
| GF1635R*3 (Gemfan 1635, 3-blade)motor at 63 °C | 50% | 2.1 | 27 | 7.8 | 3.475 |
| 100% | 8 | 64 | 29.6 | 2.162 | |
| GF1610R*2 (Gemfan 1610, 2-blade)motor at 58 °C | 50% | 1.8 | 28 | 6.7 | 4.204 |
| 100% | 6.6 | 62 | 24.4 | 2.539 |
Source: Flywoo 19800KV data
23500KV on 1S, 3.7 V5 props
| Prop | Throttle | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) |
|---|---|---|---|---|---|
| GF2015R*2 (Gemfan 2015, 2-blade)motor at 71 °C | 50% | 3.5 | 44 | 13 | 3.398 |
| 100% | 10.9 | 93 | 40.3 | 2.306 | |
| GF1635R*4 (Gemfan 1635, 4-blade)motor at 67 °C | 50% | 3 | 36 | 11.1 | 3.243 |
| 100% | 10.4 | 79 | 38.5 | 2.053 | |
| GF2023R*3 (Gemfan 2023, 3-blade)motor at 84 °C | 50% | 4.4 | 42 | 16.3 | 2.58 |
| 100% | 14 | 76 | 51.8 | 1.467 | |
| GF1635R*3 (Gemfan 1635, 3-blade)motor at 66 °C | 50% | 2.7 | 33 | 10 | 3.303 |
| 100% | 9.4 | 75 | 34.8 | 2.156 | |
| GF1610R*2 (Gemfan 1610, 2-blade)motor at 61 °C | 50% | 2.2 | 31 | 8.1 | 3.808 |
| 100% | 7.9 | 72 | 29.2 | 2.463 |
Source: Flywoo 23500KV data
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

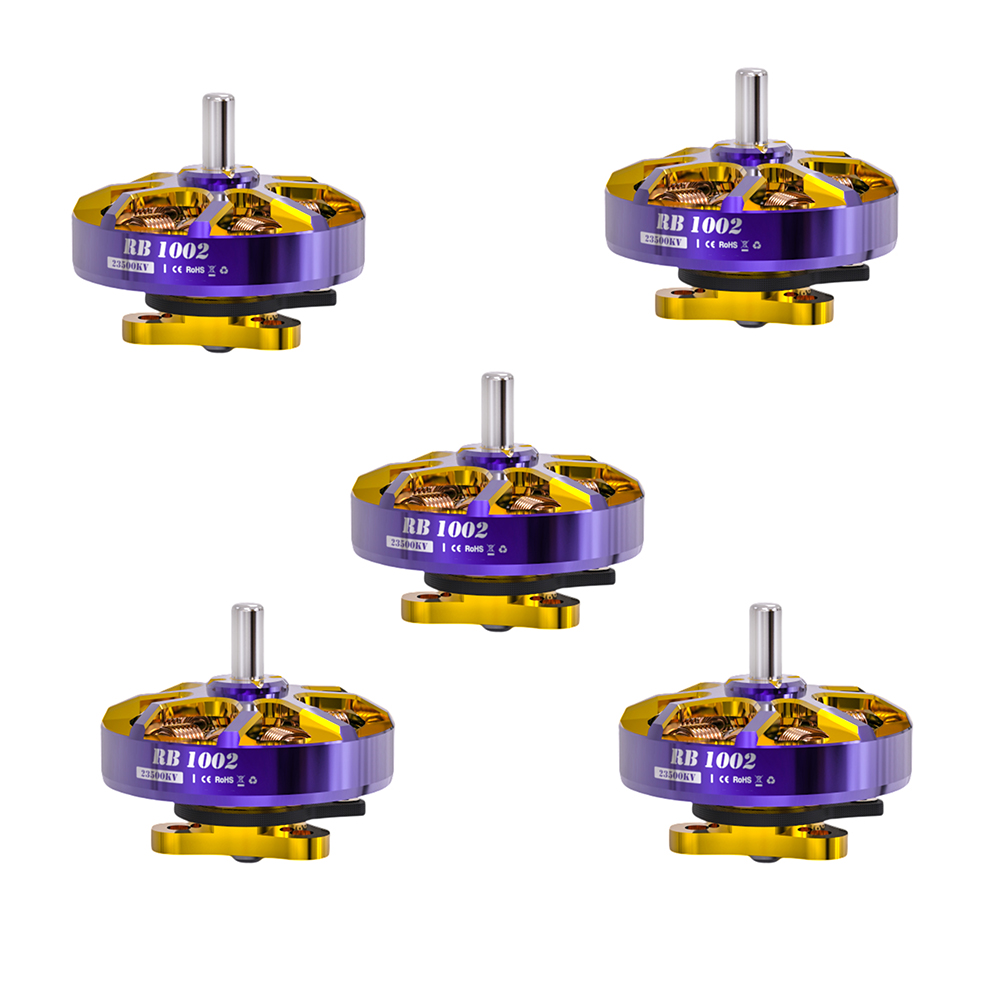

- Bell. 7075 aluminium, anodised in two colours: a purple bell with a gold top on the 23500KV, a gold bell with a purple top on the 19800KV. Eight spokes on the top. (Flywoo product photo)
- Bearings. Two bearings, which Flywoo says keep the shaft from moving. (Flywoo product page)
- Stator. 10 mm across and 2 mm tall, 9 slots, with 12 magnet poles in the bell. (Flywoo product page)
- Leads. Soldered to pads on the base, 30 mm long with a 3-pin plug. (Flywoo lead image)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 23500KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 347,800 | 34,780 Hz | 208,680 |
| 4S full | 16.8 | 394,800 | 39,480 Hz | 236,880 |
| 6S nominal | 22.2 | 521,700 | 52,170 Hz | 313,020 |
| 6S full | 25.2 | 592,200 | 59,220 Hz | 355,320 |
A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.
About the 3D model
A generic outrunner drawn from Flywoo’s published sizes: the 10 × 2 mm stator, 13.5 mm bell, 7.75 mm height, 1.5 mm shaft, 6.6 mm mounting circle and 9 teeth and 12 magnets. Anything Flywoo doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
