3–3.5 inch FPV motor

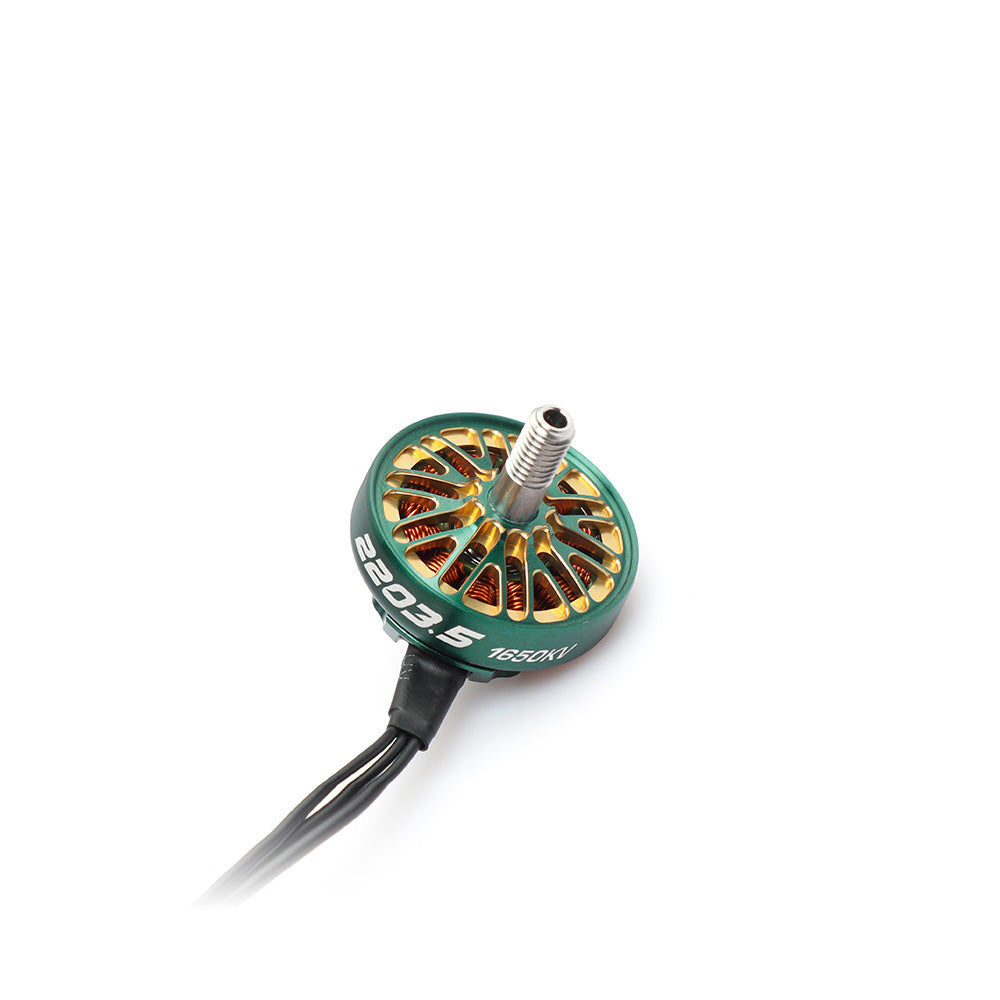

Diatone Mamba TOKA 2203.5
A 22 × 3.5 mm motor for 3.5- to 5-inch quads, in five KVs from 1650KV (4S–6S) to 4200KV (3S–4S), with a 5 mm prop shaft and 9 × 4 × 4 mm bearings.
- 3.5-inch quads (3300KV, 4200KV)
- 4-inch (2200KV) and 5-inch (1650KV, 2650KV)
- 16 × 16 mm M3 motor mounts
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2203.5 motor drawn from Diatone’s published sizes, not its exact design. No-load speed is KV × 14.8 V, a nominal pack for this version. Diatone publishes no bench data for it.
from $19.99a motor at Diatone
A set of four: $79.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What you get for $19.99
Five KVs
1650KV and 2200KV for 4S–6S; 2650KV, 3300KV and 4200KV for 3S–4S.
Source: Diatone product page
A prop size for each KV
Diatone pairs the 1650KV and 2650KV with 5-inch props, the 2200KV with 4-inch, and the 3300KV and 4200KV with 3.5-inch.
Source: Diatone product page
240 °C windings
Diatone lists 240 °C enamelled wire for the windings.
Source: Diatone product page
Peak currents by KV
From 15.59 A on the 1650KV to 35.21 A on the 4200KV; 29.78 A on the 3300KV.
Source: Diatone product page
What to pair it with
Our reading of Diatone’s numbers, so your build matches what the motor was tested with.
- ESC
- Diatone's peak currents top out at 35.21 A (4200KV), with 29.78 A for the 3300KV. A 40 A ESC covers every KV. (Diatone product page)
- Props
- 3.5-inch for 3300KV and 4200KV, 4-inch for 2200KV, 5-inch for 1650KV and 2650KV. (Diatone product page)
- Battery
- 3S–4S for 2650KV, 3300KV and 4200KV; 4S–6S for 1650KV and 2200KV. (Diatone product page)
- Frame
- 16 × 16 mm mount with M3 screws. (Diatone product page)
Where to buy
- Diatonethe maker's store; one motor, any KV$19.99seen Oct 19, 2026Visit
- GetFPV1650KV, 2200KV, 2650KV or 3300KVprice on the store’s pageVisit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 3,300 rpm/V (also 1650KV, 2200KV, 2650KV and 4200KV) | Diatone product page |
| Stator | 22 × 3.5 mm (2203.5) | Diatone product page |
| Configuration | 12N14P (12 stator slots, 14 magnet poles) | Diatone product page |
| Battery | 3S–4S LiPo (12.6–16.8 V) for 3300KV (1650KV and 2200KV: 4S–6S; 2650KV and 4200KV: 3S–4S) | Diatone product page |
| Dimensions | Φ28.9 × 29.4 mm | Diatone product page |
| Shaft | 5 mm where the prop mounts, 4 mm inside the motor | Diatone product page |
| Mounting | 16 × 16 mm, M3 | Diatone product page |
| Bearings | 9 × 4 × 4 mm | Diatone product page |
| Winding | 240 °C enamelled wire | Diatone product page |
| Internal resistance | 80 mΩ (232 mΩ (1650KV), 160 mΩ (2200KV), 120 mΩ (2650KV), 65 mΩ (4200KV)) | Diatone product page |
| Idle current | 1.5–2.2 A at 10 V (1650KV 0.3–1.0 A; 2650KV 0.9–1.9 A; 2200KV 1.0 A; 4200KV 2.2 A) | Diatone product page |
| Peak current | 29.78 A (15.59 A (1650KV), 19.43 A (2200KV), 27.64 A (2650KV), 35.21 A (4200KV)) | Diatone product page |
| Max power | 475.1 W (380.8 W (1650KV), 466.5 W (2200KV), 441.24 W (2650KV), 567.23 W (4200KV)) | Diatone product page |
| Leads | 24 AWG, 190 mm | Diatone product page |
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Shaft. 5 mm where the prop mounts, 4 mm inside the motor. (Diatone product page)
- Stator. The coils are wound on a stack of thin steel laminations: 22 × 3.5 mm (2203.5). (Diatone product page)
- Winding. 240 °C enamelled wire. (Diatone product page)
- Bearings. 9 × 4 × 4 mm. (Diatone product page)
- Base. 16 × 16 mm, M3. (Diatone product page)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 3300KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 48,840 | 5,698 Hz | 34,188 |
| 4S full | 16.8 | 55,440 | 6,468 Hz | 38,808 |
| 6S nominal | 22.2 | 73,260 | 8,547 Hz | 51,282 |
| 6S full | 25.2 | 83,160 | 9,702 Hz | 58,212 |
A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.
About the 3D model
A generic outrunner drawn from Diatone’s published sizes: the 22 × 3.5 mm stator, 28.9 mm bell, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything Diatone doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
