BrotherHobby Venom 2806.5

What it pulls

BrotherHobby’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get

• 2.5 kg on a 7-inch

  At 24 V the 1300KV pulled 2,520 g at full throttle on an HQ 7.0 × 3.5 tri-blade, drawing 44.4 A; BrotherHobby rounds it to 2.5 kg per motor.

  Source: BrotherHobby 1300KV test report, BrotherHobby thrust image

• 2.4 kg on a 6-inch

  The 1700KV pulled 2,440 g at full throttle on an HQ 6 × 4 × 3 at 24 V, drawing 49.2 A.

  Source: BrotherHobby 1700KV test report

• NMB bearings

  Japanese NMB 12 × 6 × 4 mm bearings, which BrotherHobby says run smooth and quiet.

  Source: BrotherHobby product page, BrotherHobby bearings image

• Hollow titanium shaft

  A hollow titanium-alloy shaft with an M5 thread, in a 7075 aluminium bell and base.

  Source: BrotherHobby product page

• Uniform air gap

  BrotherHobby says the even air gap gives linear torque and smooth spin-up without cogging.

  Source: BrotherHobby title image

What to pair it with

Our reading of BrotherHobby’s numbers, so your build matches what the motor was tested with.

ESC

BrotherHobby’s test reports list a 6S 50 A ESC for the 1700KV (49.2 A at full throttle) and a 5S 50 A ESC for the 1300KV (44.4 A). (BrotherHobby 1300KV test report, BrotherHobby 1700KV test report)

Props

7-inch for the 1300KV and 6-inch for the 1700KV in BrotherHobby’s tests: an HQ 7.0 × 3.5 tri-blade (2,520 g at full throttle) and an HQ 6 × 4 × 3 (2,440 g). (BrotherHobby 1300KV test report, BrotherHobby 1700KV test report)

Battery

6S for both KVs in BrotherHobby’s test reports; the spec list gives 4S–6S. (BrotherHobby product page, BrotherHobby 1300KV test report, BrotherHobby 1700KV test report)

Frame

Four M3 holes on a 19 × 19 mm pattern; the shaft takes an M5 prop nut. (BrotherHobby product page, BrotherHobby 1300KV test report)

Where to buy

• BrotherHobbythe maker’s store; $29.99, with both KVs listed as out of stock
  $29.99seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from BrotherHobby’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

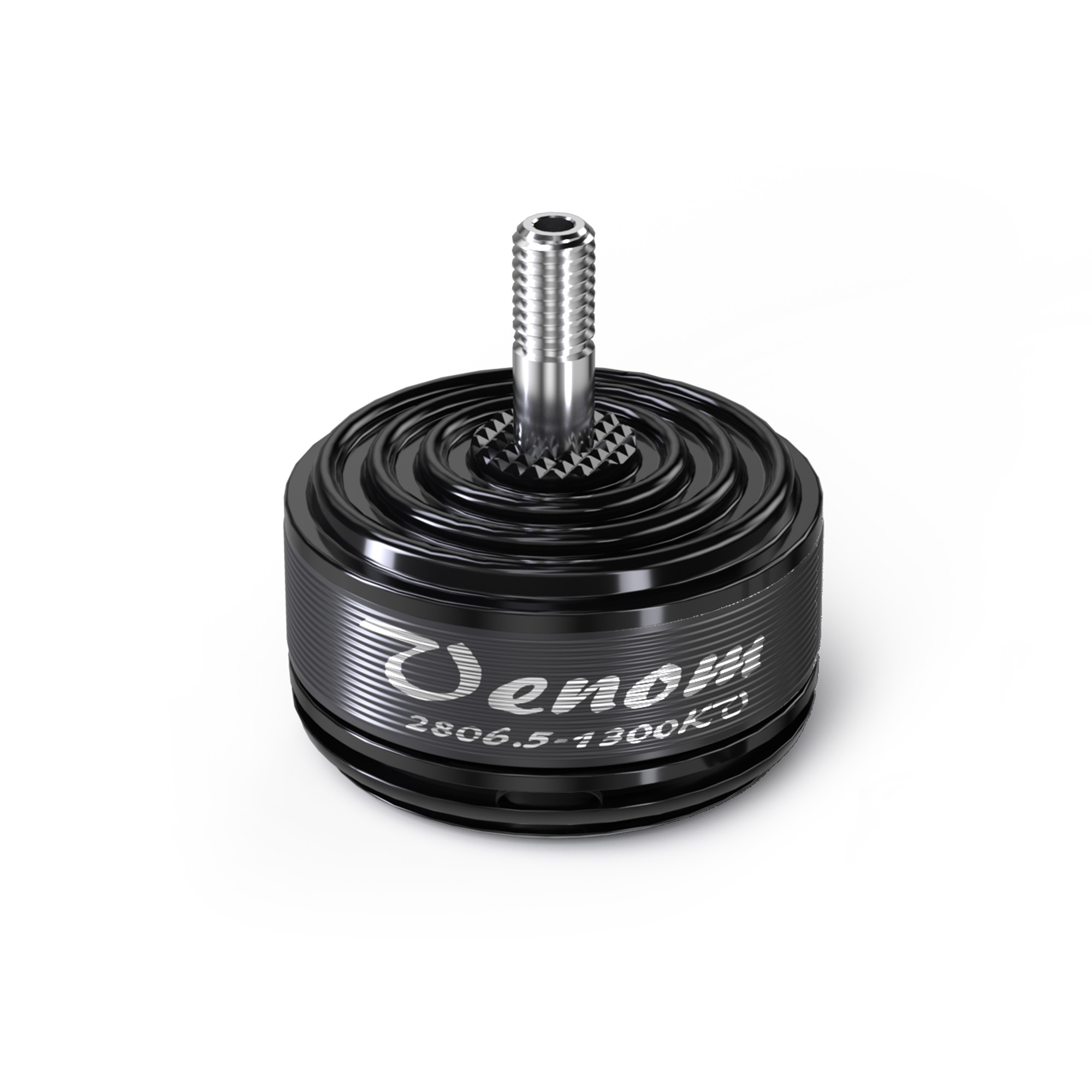

• Bell. 7075 aluminium bell cap, φ33.2 mm, closed over the top with stepped rings round a textured hub. (BrotherHobby product page, BrotherHobby 1300KV test report, BrotherHobby product photo)
• Shaft. Hollow titanium alloy, Ø5 mm with an M5 thread, standing 14 mm above the bell. (BrotherHobby product page, BrotherHobby 1300KV test report)
• Stator. 28 × 6.5 mm with 12 slots, in 0.2 mm Kawasaki silicon steel. (BrotherHobby product page, BrotherHobby 1300KV test report)
• Magnets. N52H arc magnets, 14 poles. (BrotherHobby product page, BrotherHobby 1300KV test report)
• Bearings. NMB, 12 × 6 × 4 mm. (BrotherHobby product page)
• Base. 7075 aluminium, with four M3 holes on a 19 mm circle and 18 AWG leads 20 cm long. (BrotherHobby product page, BrotherHobby 1300KV test report)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1300KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from BrotherHobby’s published sizes: the 28 × 6.5 mm stator, 33.2 mm bell, 20.7 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything BrotherHobby doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. BrotherHobby: Venom 2806.5 Motor (CW) (product page on BrotherHobby’s store, with its spec list, photos and Test Data tab). Retrieved Oct 19, 2026.
2. BrotherHobby: Venom 2806.5 1300KV test report (drawing, spec table and load test on an HQ 7.0 × 3.5 tri-blade at 24 V, from BrotherHobby’s 2017 bench; image on the Test Data tab). The copper temperature is after two minutes at full throttle.. Retrieved Oct 19, 2026.
3. BrotherHobby: Venom 2806.5 1700KV test report (drawing, spec table and load test on an HQ 6 × 4 × 3 at 24 V, from BrotherHobby’s 2017 bench; image on the Test Data tab). The copper temperature is after two minutes at full throttle.. Retrieved Oct 19, 2026.
4. BrotherHobby: Venom 2806.5 “Strong thrust” image, giving up to 2.5 kg from one motor (image on the Description tab). Retrieved Oct 19, 2026.
5. BrotherHobby: Venom 2806.5 “Strictly control materials” image, on its NMB bearings (image on the Description tab). Retrieved Oct 19, 2026.
6. BrotherHobby: Venom 2806.5 title image, on its air gap and torque (image on the Description tab). Retrieved Oct 19, 2026.
7. BrotherHobby: Venom 2806.5 1300KV product photo (first gallery image on the product page). Retrieved Oct 19, 2026.
