5-inch FPV freestyle motor
BrotherHobby Venom 2206
A fully enclosed 2206 for 4S–5S: 22 × 6 mm stator, 12N14P, 35.7 g with 16 cm leads, in 1900KV, 2400KV and 2600KV.
- 5-inch freestyle
- 4S–5S
The spin is an illustration: the model turns at 1/600 of the no-load speed, and it is a generic 2206 motor drawn from BrotherHobby’s published sizes, not its exact design. No-load speed is KV × 18.5 V, a nominal pack for this version. BrotherHobby publishes no bench data for it.
- Weight
- 35.7 g
- with 16 cm leads
from $22.99a motor at BrotherHobby
A set of four: $91.96
Price seen Oct 19, 2026. Plain links: we earn nothing from them.
What you get for $22.99
Fully enclosed

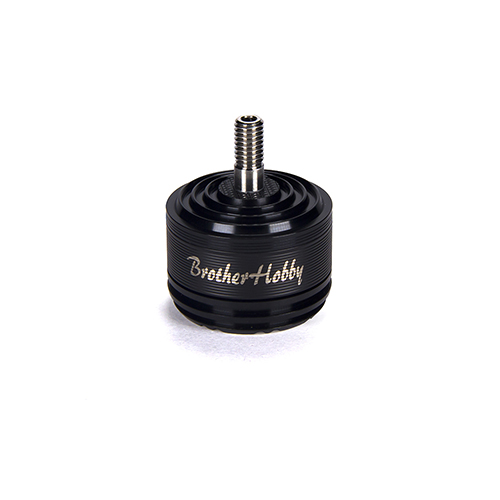

BrotherHobby sells it as a fully enclosed motor: the bell is closed over the top, with stepped rings round a textured hub instead of open spokes.
Source: BrotherHobby product page, BrotherHobby product photo
7075 bell and base
Bell cap and base casing are both 7075 aluminium.
Titanium shaft
A titanium-alloy shaft with an M5 prop thread, 12 mm of it above the bell.
0.15 mm laminations
The stator is stacked from 0.15 mm Nippon Steel silicon steel, with N52H arc magnets and Japanese NSK bearings.
What to pair it with
Our reading of BrotherHobby’s numbers, so your build matches what the motor was tested with.
- Battery
- 4S–5S, as BrotherHobby gives it for all three KVs. (BrotherHobby product page, BrotherHobby spec image)
- Props
- M5 prop thread, 8 mm long, on a shaft standing 12 mm above the bell. BrotherHobby publishes no prop size or bench data for this motor. (BrotherHobby product page, BrotherHobby drawing)
- Frame

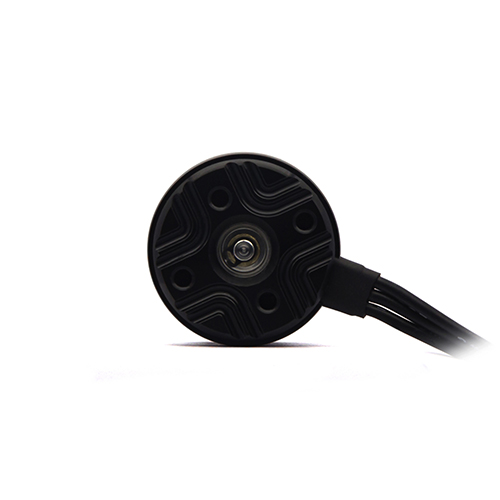

- Four M3 holes in a 16 × 19 mm pattern: one pair 16 mm apart, the other 19 mm apart. (BrotherHobby product page, BrotherHobby drawing, BrotherHobby base photo)
Where to buy
- BrotherHobbythe maker’s store; $22.99 for any KV once one is chosen (the page opens at $21.99, marked down from $22.99)$22.99seen Oct 19, 2026Visit
Plain links, not affiliate links. Prices change; the store’s page has the current one.
Full specs
| Spec | Value | Source |
|---|---|---|
| KV | 2,400 rpm/V (also 1900KV and 2600KV) | BrotherHobby product page, BrotherHobby spec image |
| Stator | 22 × 6 mm (2206); 0.15 mm Nippon Steel silicon-steel laminations | BrotherHobby product page, BrotherHobby spec image |
| Configuration | 12N14P (12 stator slots, 14 magnet poles) | BrotherHobby product page, BrotherHobby spec image |
| Battery | 4S–5S LiPo (BrotherHobby doesn’t say which KV suits which cell count) | BrotherHobby product page, BrotherHobby spec image |
| Weight | 35.7 g (with 16 cm leads) | BrotherHobby product page, BrotherHobby spec image |
| Dimensions | φ27.5 × 33 mm (with shaft); 21 mm without it, with 12 mm of shaft above the bell | BrotherHobby drawing |
| Shaft | Titanium alloy, Ø5 mm with an M5 prop thread (8 mm of thread), standing 12 mm above the bell | BrotherHobby product page, BrotherHobby drawing |
| Mounting | 4 × M3 holes, one pair 16 mm apart and the other 19 mm apart (16 × 19 mm) | BrotherHobby product page, BrotherHobby drawing |
| Bell | 7075 aluminium bell cap and base casing; the bell is closed over the top | BrotherHobby product page, BrotherHobby spec image, BrotherHobby product photo |
| Magnets | N52H arc magnets | BrotherHobby product page, BrotherHobby spec image |
| Bearings | NSK (Japan), 8 × 3 × 4 mm (as BrotherHobby gives them) | BrotherHobby product page, BrotherHobby spec image |
| Leads | 20 AWG, 16 cm | BrotherHobby product page, BrotherHobby spec image |
Inside the motor
A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:
- Bell. 7075 aluminium bell cap, φ27.5 mm, closed over the top with stepped rings round a textured hub. (BrotherHobby product page, BrotherHobby drawing, BrotherHobby product photo)
- Shaft. Titanium alloy, Ø5 mm with an M5 thread, standing 12 mm above the bell. (BrotherHobby product page, BrotherHobby drawing)
- Stator. 22 × 6 mm with 12 slots, in 0.15 mm Nippon Steel silicon steel. (BrotherHobby product page, BrotherHobby spec image)
- Magnets. N52H arc magnets, 14 poles. (BrotherHobby product page, BrotherHobby spec image)
- Bearings. NSK, 8 × 3 × 4 mm, as BrotherHobby gives them. (BrotherHobby product page, BrotherHobby spec image)
- Base. 7075 aluminium, with four M3 holes in a 16 × 19 mm pattern and 20 AWG leads 16 cm long. (BrotherHobby product page, BrotherHobby drawing, BrotherHobby base photo)
How fast it spins
KV is the motor’s no-load speed per volt. With nothing on the shaft, the 2400KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.
| Battery | Volts | No-load rpm (KV × V) | Electrical frequency | ESC steps per second |
|---|---|---|---|---|
| 4S nominal | 14.8 | 35,520 | 4,144 Hz | 24,864 |
| 4S full | 16.8 | 40,320 | 4,704 Hz | 28,224 |
| 6S nominal | 22.2 | 53,280 | 6,216 Hz | 37,296 |
| 6S full | 25.2 | 60,480 | 7,056 Hz | 42,336 |
A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.
About the 3D model
A generic outrunner drawn from BrotherHobby’s published sizes: the 22 × 6 mm stator, 27.5 mm bell, 21 mm height, 5 mm shaft and 12 teeth and 14 magnets. Anything BrotherHobby doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.
