BrotherHobby Tornado T2 1407

What you get for $15.99

• 15.1 g with wires

  BrotherHobby gives 15.1 g with 16 cm wires, which it says is 8% less than the Tornado T1 1407.

  Source: BrotherHobby product page, BrotherHobby weight image

• 4.2 mm lower

  BrotherHobby cut material from the bell; the T2 stands 28.1 mm tall against 32.3 mm for the T1 1407.

  Source: BrotherHobby bell image, BrotherHobby height comparison

• Open base

  The base is an open cross, which BrotherHobby says sheds heat better and saves weight.

  Source: BrotherHobby base image

What to pair it with

Our reading of BrotherHobby’s numbers, so your build matches what the motor was tested with.

Battery

BrotherHobby rates all three KVs for 3S–4S. (BrotherHobby product page)

Frame

Four M2 holes on a 12 mm circle (12 × 12 mm); the shaft takes props with an M5 nut. (BrotherHobby product page, BrotherHobby drawing)

Where to buy

• BrotherHobbythe maker’s store; $15.99 for any KV once one is chosen (the page opens at $16.99)
  $15.99seen Oct 19, 2026
  Visit
• GetFPVchoose the KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. 7075 aluminium bell cap, φ18.2 mm, with twelve bars on top joined in six V-shaped pairs. (BrotherHobby product page, BrotherHobby drawing)
• Shaft. 5 mm with an M5 thread, standing 12 mm above the bell. (BrotherHobby drawing)
• Magnets. N52H arc magnets, 12 poles. (BrotherHobby product page)
• Stator. 14 × 7 mm with 9 slots, in 0.15 mm Nippon Steel silicon steel. (BrotherHobby product page)
• Bearings. NSK, 5 × 2 × 2.5 mm. (BrotherHobby product page)
• Base. An open cross, 2 mm thick, with four M2 holes on a 12 mm circle and 26 AWG leads 160 mm long. (BrotherHobby base image, BrotherHobby drawing)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 3600KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 12-pole rotor has 6 pole pairs, so every turn of the shaft is 6 electrical cycles, and a six-step ESC switches the phases 36 times per turn.

About the 3D model

A generic outrunner drawn from BrotherHobby’s published sizes: the 14 × 7 mm stator, 18.2 mm bell, 16.1 mm height, 5 mm shaft, 12 mm mounting circle and 9 teeth and 12 magnets. Anything BrotherHobby doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. BrotherHobby: Tornado T2 1407 2800KV/3600KV/4100KV Motor (CW) (product page on BrotherHobby’s store, with its spec list and photos). Retrieved Oct 19, 2026.
2. BrotherHobby: Tornado T2 1407 weight, 15.1 g with wire, and its comparison with the T1 1407 (image on the product page). Retrieved Oct 19, 2026.
3. BrotherHobby: Tornado T2 1407 open base (image on the product page). Retrieved Oct 19, 2026.
4. BrotherHobby: Tornado T2 1407 cut-down bell, 4.2 mm lower overall (image on the product page). Retrieved Oct 19, 2026.
5. BrotherHobby: Tornado T1 1407 and T2 1407 heights compared, 32.3 mm and 28.1 mm (image on the product page). Retrieved Oct 19, 2026.
6. BrotherHobby: Tornado T2 1407 dimension drawing, with a cross-section (image on the Test Data tab of the product page). Retrieved Oct 19, 2026.

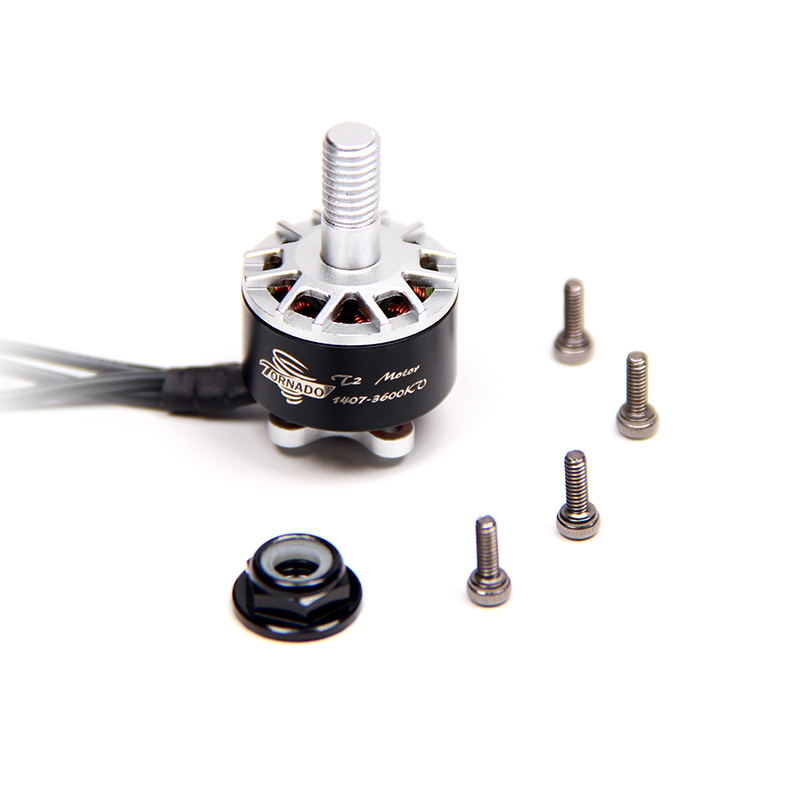

7. BrotherHobby: photo of the Tornado T2 1407 3600KV with four screws and a flanged prop nut (product gallery). Retrieved Oct 19, 2026.
