BrotherHobby LPD 2306.5

What it pulls

BrotherHobby’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $24.99

• About 2 kg of pull on 6S

  On BrotherHobby’s 24 V bench the 2000KV pulled 2,048 g at full throttle on an HQ 5.1 × 4.1 × 3, drawing 52.9 A.

  Source: BrotherHobby load tests

• Wire rated to 260 °C

  BrotherHobby rates the winding wire to 260 °C, with DuPont high-temperature enamel, and says it takes long runs at full throttle.

  Source: BrotherHobby product page, BrotherHobby infographic

• 0.15 mm silicon steel

  Stator laminations of 0.15 mm Nippon Steel silicon steel, which BrotherHobby says keep eddy-current losses and heating low.

  Source: BrotherHobby product page, BrotherHobby infographic

• NMB bearings, 7075 shell

  Japanese NMB 9 × 4 × 4 mm bearings in a hard-anodised 7075 aluminium bell and base.

  Source: BrotherHobby product page, BrotherHobby infographic

What to pair it with

Our reading of BrotherHobby’s numbers, so your build matches what the motor was tested with.

ESC

BrotherHobby lists a 6S 55 A ESC for the 2000KV and a 5S 55 A for the 2450KV; its full-throttle peaks were 52.9 A and 52.7 A. (BrotherHobby thrust summary, BrotherHobby load tests)

Props

Both KVs were tested on an HQ 5.1 × 4.1 × 3: 2,048 g at full throttle on 24 V (2000KV) and 1,899 g on 20 V (2450KV). (BrotherHobby load tests)

Battery

6S for the 2000KV and 5S for the 2450KV in BrotherHobby’s tests; the motor is rated for 4S–6S. There is no bench data for the 2650KV. (BrotherHobby product page, BrotherHobby thrust summary, BrotherHobby load tests)

Frame

Four M3 holes on a 16 mm circle (16 × 16 mm); four M3 screws and an M5 nut come in the box. (BrotherHobby product page, BrotherHobby spec and drawing, BrotherHobby load tests)

Where to buy

• BrotherHobbythe maker’s store; same price for every KV
  $24.99seen Oct 19, 2026
  Visit
• GetFPVchoose the KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from BrotherHobby’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. 7075 aluminium bell cap, φ29.7 mm, hard anodised. (BrotherHobby product page, BrotherHobby spec and drawing, BrotherHobby infographic)
• Shaft. 5 mm with an M5 thread, standing 14 mm above the bell. The spec list calls it a hollow titanium-alloy shaft; an infographic on the same page calls it heat-treated alloy steel. (BrotherHobby spec and drawing, BrotherHobby infographic)
• Magnets. N52H arc magnets, 14 poles, which BrotherHobby describes as thicker magnets set at an even air gap. (BrotherHobby product page, BrotherHobby infographic)
• Stator. 23 × 6.5 mm with 12 slots, in 0.15 mm Nippon Steel silicon steel. (BrotherHobby product page, BrotherHobby infographic)
• Bearings. NMB, 9 × 4 × 4 mm. (BrotherHobby product page)
• Base. 7075 aluminium, with four M3 holes on a 16 mm circle and 20 AWG leads 160 mm long. (BrotherHobby product page, BrotherHobby spec and drawing)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 2000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from BrotherHobby’s published sizes: the 23 × 6.5 mm stator, 29.7 mm bell, 18.9 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything BrotherHobby doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. BrotherHobby: LPD 2306.5 Motor (CW) (product page on BrotherHobby’s store, with its spec list and photos; the same images are on brotherhobby.com). Retrieved Oct 19, 2026.
2. BrotherHobby: LPD 2306.5 thrust summary for the 2000KV and 2450KV, with the ESC for each (image on the product page). Retrieved Oct 19, 2026.
3. BrotherHobby: LPD 2306.5 load test data, 2020 bench (2000KV at 24 V and 2450KV at 20 V on an HQ 5.1 × 4.1 × 3), with the packing list (image on the product page). Retrieved Oct 19, 2026.
4. BrotherHobby: LPD 2306.5 spec list and dimension drawing (image on the product page). Retrieved Oct 19, 2026.

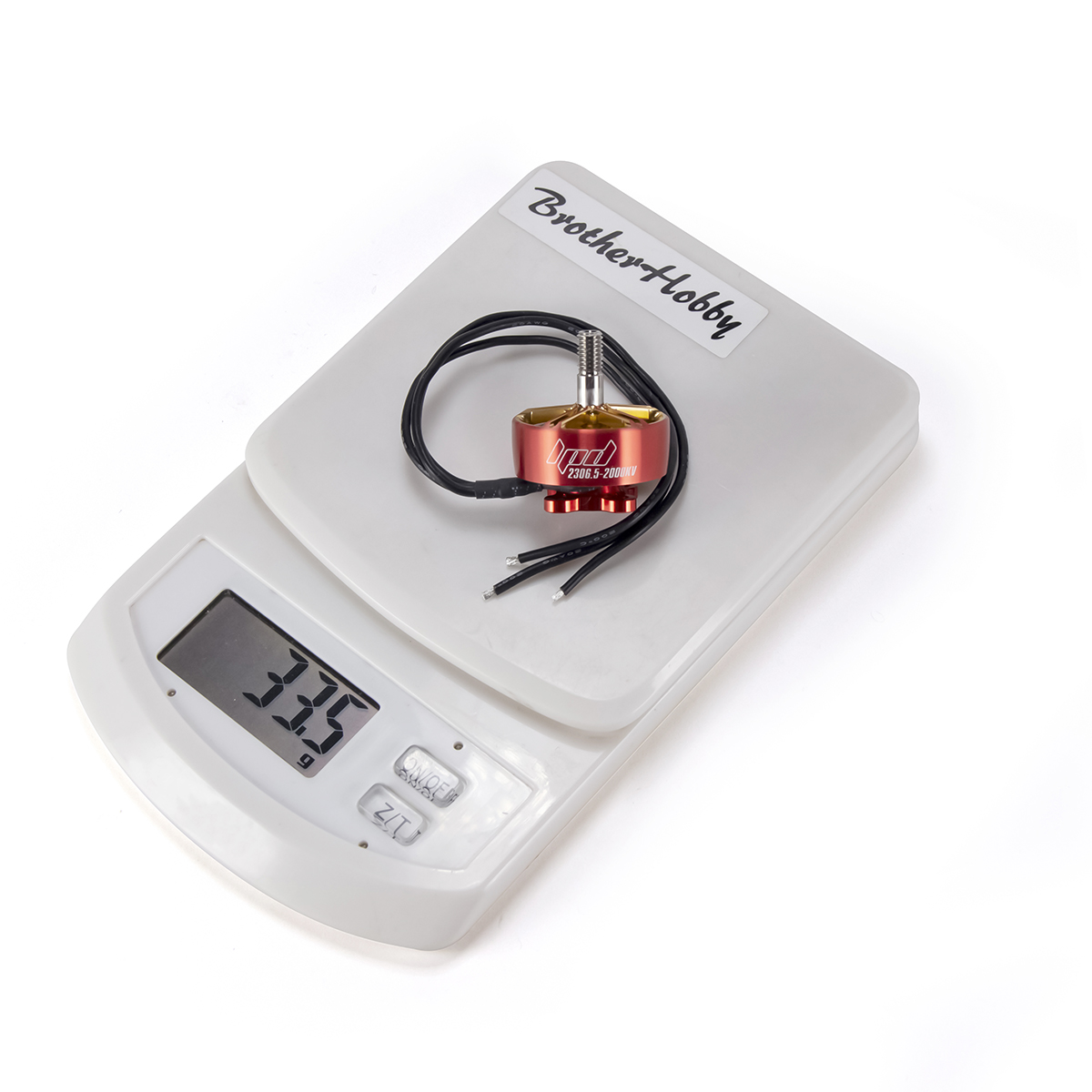

5. BrotherHobby: photo of the LPD 2306.5 2000KV with its leads on a scale reading 33.5 g (product gallery). Retrieved Oct 19, 2026.
6. BrotherHobby: LPD 2306.5 features, bell, shaft and bearings (image on the product page). Retrieved Oct 19, 2026.
7. BrotherHobby: LPD 2306.5 features, wire, stator steel and magnets (image on the product page). Retrieved Oct 19, 2026.
