Axisflying SupaflyFPV SyncFPV 2207.5

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $19.90

• Three-way collaboration

  Built by Axisflying with the pilots SyncFPV and Supafly and tuned for 5-inch freestyle and bando; Axisflying pairs it with BB4943.5 props.

  Source: Axisflying product page

• One-piece bell

  A one-piece aluminium rotor with a Y-shaped double-layer reinforcement on the top, which Axisflying says faces collisions.

  Source: Axisflying feature images

• NMB bearings, 0.15 mm steel

  NMB bearings with a waterproof and dustproof design, and 0.15 mm silicon steel, which Axisflying says makes the motor more powerful and responsive than 0.2 mm.

  Source: Axisflying feature images

• Titanium shaft

  A titanium alloy shaft with a rounded top that Axisflying says resists deformation in a crash, so the nut still comes off.

  Source: Axisflying feature images

• Bench numbers

  On BB4943.5 props at about 24 V: 1818.56 g at 39.83 A for the 1960KV, 1710.85 g at 35.8 A for the 1860KV.

  Source: Axisflying test data

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

Peak currents of 39.83 A (1960KV) and 35.8 A (1860KV) on Axisflying's 6S bench. (Axisflying product page, Axisflying test data)

Props

Axisflying recommends and tested the BB4943.5. (Axisflying product page, Axisflying test data)

Battery

6S for both KVs. (Axisflying product page)

Frame

Four M3 screws on a 16 mm circle; five M3×8 screws and an M5 lock nut come in the box. (Axisflying product page, Axisflying drawing and specs)

Where to buy

• Axisflyingthe maker's store; same price for both KVs
  $19.90seen Oct 19, 2026
  Visit
• WREKD1860KV
  price on the store’s page
  Visit
• WREKD1960KV
  price on the store’s page
  Visit
• GetFPV1860KV or 1960KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

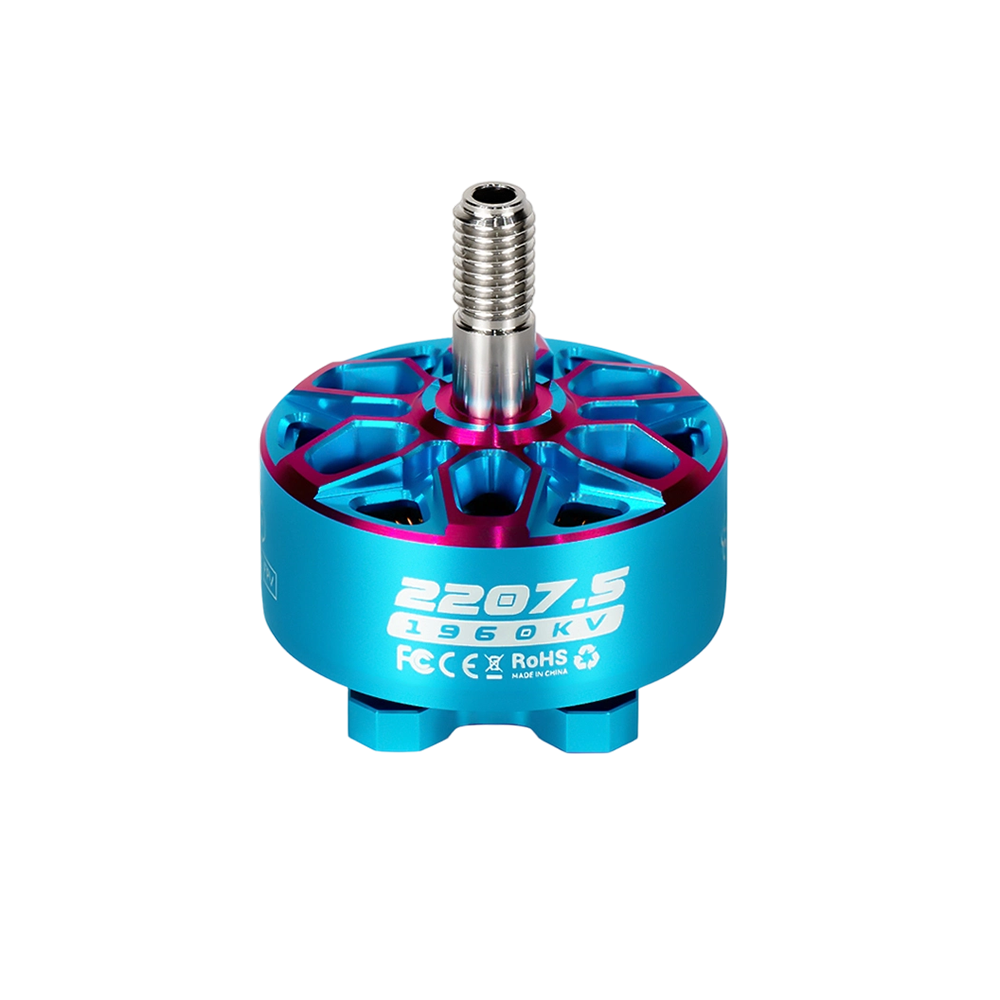

• Bell. One-piece aluminium, anodised sky blue with a pink top; the top carries a Y-shaped double-layer reinforcement. (Axisflying feature images)
• Magnets. N52H curved magnets, 14 poles. (Axisflying feature images)
• Stator. 22 × 7.5 mm, 12 slots, 0.15 mm silicon steel, wound with high-temperature enamelled wire. (Axisflying feature images)
• Bearings. NMB bearings with a waterproof and dustproof design. (Axisflying feature images)
• Shaft. Titanium alloy with an M5 thread, standing 13.5 mm above the bell; an M3×4 screw locks it. (Axisflying drawing and specs)
• Leads. 20 AWG silicone wire, 150 mm. (Axisflying product page)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1960KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 22 × 7.5 mm stator, 27.9 mm bell, 19.4 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor 2207.5 6s (Axisflying × SyncFPV × Supafly co-branded motor; product page). Retrieved Oct 19, 2026.
2. Axisflying: 2207.5 outline drawing and spec table (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: 2207.5 testing data, 1960KV and 1860KV on BB4943.5 props (image on the product page). Each row's voltage is as measured (the 1960KV's 80% row reads 24.39 V); the table's voltage is its 30% row.. Retrieved Oct 19, 2026.
4. Axisflying: 2207.5 feature images (magnets, bearings, laminations, rotor and shaft; images on the product page). Retrieved Oct 19, 2026.
5. Axisflying: 2207.5 1960KV main product photo, used for finish. Retrieved Oct 19, 2026.
