Axisflying C206 V1 2006

What you get for $19.90

• One-piece bell

  Axisflying makes the rotor and bell as a single piece, which it says removes seams and improves durability.

  Source: Axisflying unibell image

• Three KVs

  1960KV for smooth cinematic flying, 2100KV for balanced cruising and 2500KV for agile freestyle, Axisflying says; all three sell for $19.90.

  Source: Axisflying product page, Axisflying KV image

• Small mount

  Four M2 screws on a 12 mm circle, which Axisflying calls a 9 × 9 mm pattern that leaves room for smaller arms.

  Source: Axisflying drawing and specs, Axisflying mount image

• Bench numbers

  On a DT90-3 at about 24 V: 869 g at 19.9 A (1960KV) and 1047 g at 23.89 A (2100KV); the 2500KV reached 1311 g at 37.73 A on a DT90-4.

  Source: Axisflying test data

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

Peak currents on Axisflying's bench run from 19.9 A (1960KV on a DT90-3) to 37.73 A (2500KV on a DT90-4). (Axisflying test data)

Props

Axisflying's text recommends GF D90-3P, HQ T90-4P or HQ D90MM×3 props, and it tested on DT90-3 and DT90-4; its feature image shows 2.5- and 3-inch props. (Axisflying product page, Axisflying test data, Axisflying compatibility image)

Battery

6S, which Axisflying recommends; the spec tables rate every KV for 4S–6S. (Axisflying product page, Axisflying drawing and specs)

Frame

Four M2 screws on a 12 mm circle. Axisflying lists 3-inch, 3.5-inch and light 4-inch frames, and says to confirm the match by KV, voltage and all-up weight. (Axisflying drawing and specs, Axisflying compatibility image)

Where to buy

• Axisflyingthe maker's store; same price for 1960KV, 2100KV and 2500KV
  $19.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. Made in one piece with the rotor: a dark grey bell with a red top cut into ten spokes. (Axisflying drawing and specs, Axisflying unibell image, Axisflying product photo)
• Shaft. 1.5 mm, standing 3 mm above the bell; props fix to four M2 holes on a 5 mm circle in the top. (Axisflying drawing and specs)
• Bearings. Housed behind Axisflying's IP53 bearing shield. (Axisflying product page)
• Stator. 20 × 6 mm, 12 slots, with 14 magnet poles in the bell. (Axisflying product page, Axisflying drawing and specs)
• Leads. 22 AWG silicone wire, 150 mm. (Axisflying drawing and specs)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1960KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 20 × 6 mm stator, 24.7 mm bell, 16.9 mm height, 1.5 mm shaft, 12 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor C206 V1 6S (product page). Retrieved Oct 19, 2026.
2. Axisflying: C206 V1 outline drawing and spec tables for 2100KV, 2500KV and 1960KV (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: C206 testing data, 2100KV and 2500KV on DT90-3 and DT90-4 props and 1960KV on a DT90-3 (image on the product page). Axisflying's throttle column is left out and the rows kept as thrust steps ending at full throttle (see modelNotes). Each row's voltage is as measured; the table's voltage is its first row. Temperatures as printed: the 2100KV's test temperature with 26 °C ambient, the 2500KV's without an ambient figure, the 1960KV's inside the motor with 28 °C ambient.. Retrieved Oct 19, 2026.
4. Axisflying: C206 V1 feature image ("Integrated Unibell Design"; on the product page). Retrieved Oct 19, 2026.
5. Axisflying: C206 V1 feature image ("9x9mm mini mounting pattern", M2 screws; on the product page). Retrieved Oct 19, 2026.
6. Axisflying: C206 V1 KV image ("Three KV options": 1960KV, 2100KV, 2500KV; on the product page). Retrieved Oct 19, 2026.
7. Axisflying: C206 V1 compatible frames and recommended propellers (image on the product page). Retrieved Oct 19, 2026.
8. Axisflying: C206 V1 product list (image on the product page). Retrieved Oct 19, 2026.

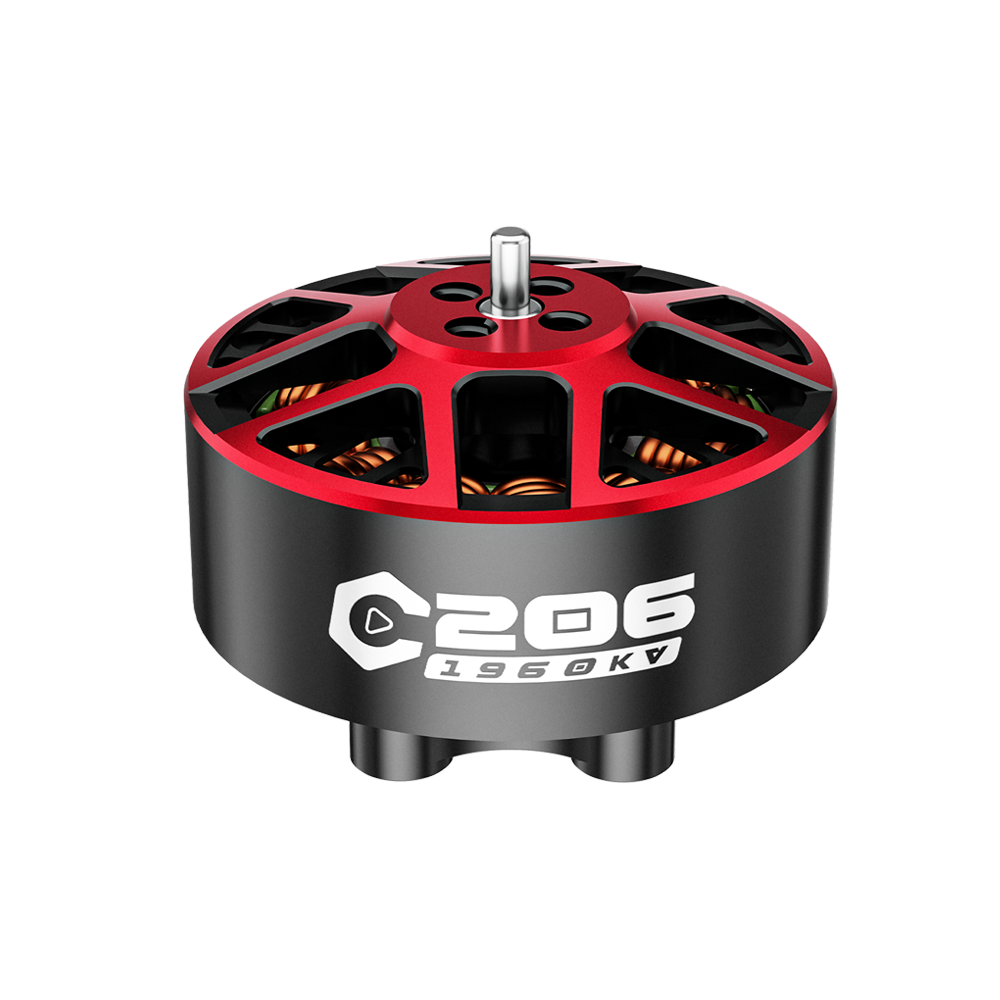

9. Axisflying: C206 V1 1960KV main product photo, used for finish. Retrieved Oct 19, 2026.

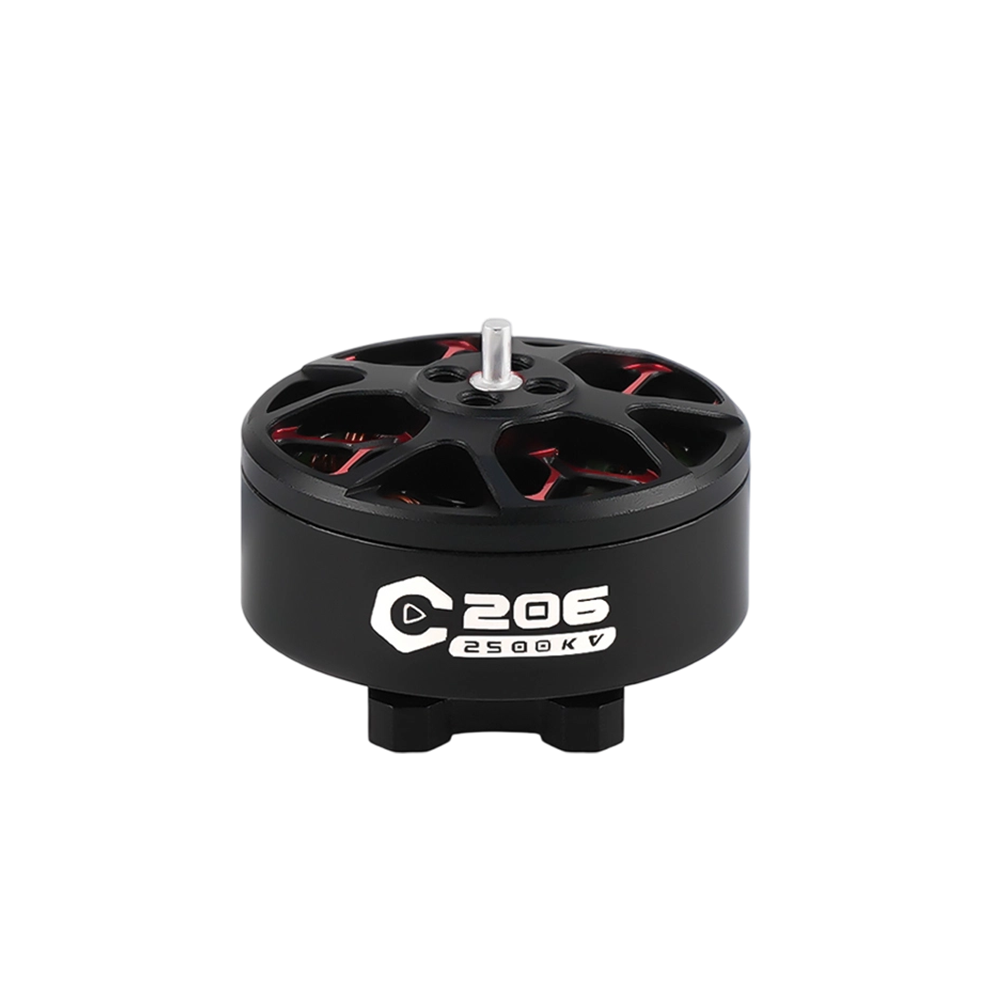

10. Axisflying: C206 2500KV photo, the last in the page's gallery (a black C206 with red ribs under a black top). Retrieved Oct 19, 2026.
