Axisflying AZ3220

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $32.90

• 9- to 11-inch

  Axisflying designed the AZ3220 for 9- to 11-inch long-range, heavy-lift and cinematic drones.

  Source: Axisflying product page, Axisflying feature image

• Bench numbers

  On an HQ1050-3 at about 23–25 V: 1845 g at 18.04 A at half throttle, and 4354 g at 80.16 A and 1828.4 W at full throttle.

  Source: Axisflying test data

• Customizable KV

  The store sells the 1000KV; Axisflying marks the KV as customizable, and its test image includes a 700KV version on a 1050 prop at about 31 V: 5918 g at 74.73 A at full throttle.

  Source: Axisflying test data, Axisflying opening image

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

80.16 A at full throttle on an HQ1050-3 at about 23 V. (Axisflying test data)

Props

An HQ1050-3, Axisflying's test prop for the 1000KV; the page says the motor suits 9- to 11-inch props. (Axisflying test data, Axisflying feature image)

Battery

3S–6S; the bench data starts at about 25 V (6S). (Axisflying spec image, Axisflying test data)

Frame

Four M3 screws on a 19 mm circle. (Axisflying drawing)

Where to buy

• Axisflyingthe maker's store; also sold as a set of four for $128.00
  $32.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

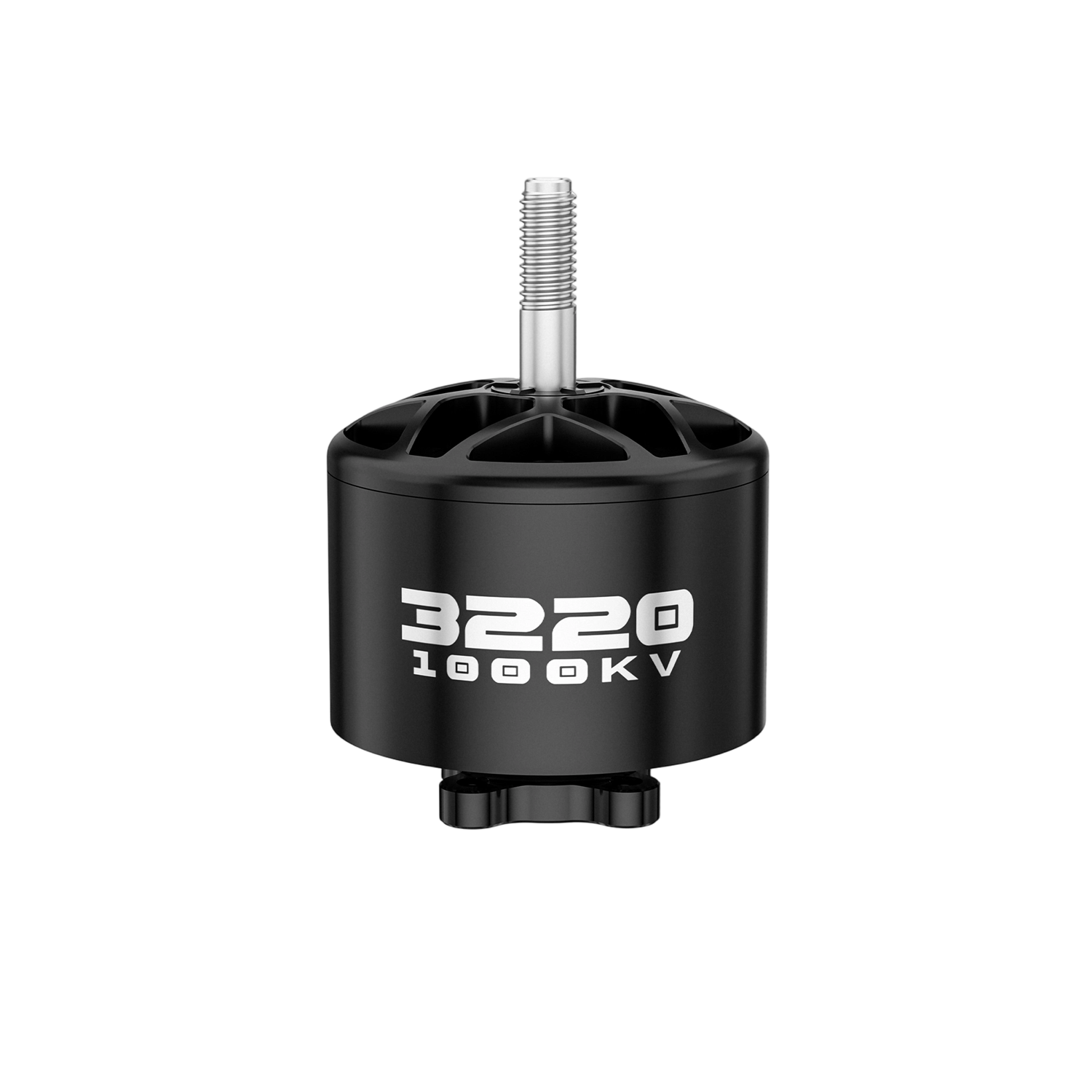

• Bell. Black, with a spoked top. (Axisflying product photo)
• Shaft. 5 mm with an M5×0.8 thread, 11 mm of it threaded, standing 18 mm above the motor. (Axisflying drawing)
• Stator. 32 × 20 mm, 12 slots, with 14 magnet poles in the bell. (Axisflying product page, Axisflying spec image)
• Leads. 18 AWG silicone wire, 300 mm. (Axisflying spec image)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1000KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 32 × 20 mm stator, 39 mm bell, 37.4 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motors AZ3220 3-6s (product page). Retrieved Oct 19, 2026.
2. Axisflying: AZ3220 engineering drawing (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: AZ3220 basic data (spec image on the product page). Retrieved Oct 19, 2026.
4. Axisflying: AZ3220 test data (image on the product page): a 1000KV table on an HQ1050-3 and a 700KV table on a 1050 prop at about 31–32 V. Each row's voltage is as measured; the table's voltage is its 20% row. The PWM column (1200–2000 µs) is left out; it repeats the throttle steps.. Retrieved Oct 19, 2026.
5. Axisflying: AZ3220 feature image ('Designed for 9-11 inch FPV', on the product page). Retrieved Oct 19, 2026.
6. Axisflying: AZ3220 packing list (image on the product page). Retrieved Oct 19, 2026.
7. Axisflying: AZ3220 1000KV main product photo, used for finish. Retrieved Oct 19, 2026.
8. Axisflying: AZ3220 opening image ('1000KV / Customizable', on the product page). Retrieved Oct 19, 2026.
