Axisflying AZ2810

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $16.90

• Long range and heavy lift

  Axisflying sells the AZ2810 for 6–7-inch long-range, heavy-lift and cinematic drones and says its speed range suits 7–8-inch props.

  Source: Axisflying product page, Axisflying feature image

• Bench numbers

  On a GF7535 at about 24 V: 811 g at 8.17 A at half throttle, and 2702 g at 45.5 A and 1078.37 W at full throttle.

  Source: Axisflying test data

• Customizable KV

  The store sells the 1300KV; Axisflying marks the KV as customizable.

  Source: Axisflying spec image

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

45.5 A at full throttle on a GF7535 at about 24 V; Axisflying's spec image gives 60.34 A as the maximum. (Axisflying spec image, Axisflying test data)

Props

Axisflying tested GF7037 and GF7535 props; the GF7535 pulls more at full throttle, 2702 g against 2538 g. (Axisflying test data)

Battery

The bench data is on 24 V (6S), and the AZ2810-V1 listing of the same motor gives 4–6S, though the current page's title and spec image say 8–12S. (Axisflying spec image, Axisflying test data, Axisflying AZ2810-V1 spec image)

Frame

Four M3 screws on a 19 mm circle; the holes are threaded through the base. (Axisflying drawing)

Where to buy

• Axisflyingthe maker's store; also sold as a set of four for $64.90
  $16.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. Black, with a spoked top. (Axisflying product photo)
• Shaft. 5 mm with an M5×0.8 thread, 9.5 mm of it threaded, standing 16.6 mm above the motor. (Axisflying drawing)
• Stator. 28 × 10 mm, 12 slots, with 14 magnet poles in the bell. (Axisflying product page, Axisflying spec image)
• Leads. 18 AWG silicone wire, 260 mm. (Axisflying spec image)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1300KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 28 × 10 mm stator, 33 mm bell, 22.8 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motors AZ2810 8-12s (product page). Retrieved Oct 19, 2026.
2. Axisflying: AZ2810 engineering drawing, labelled AZ2810-V1 (image on the product page). Retrieved Oct 19, 2026.

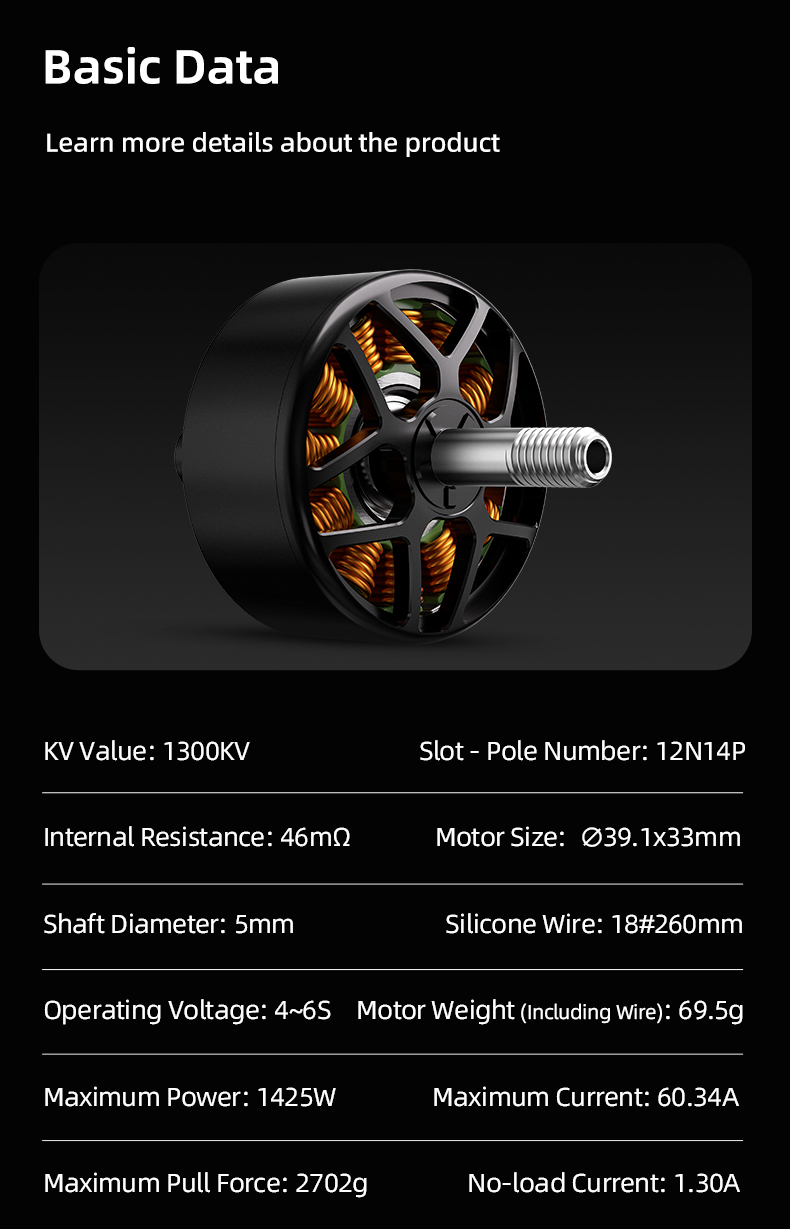

3. Axisflying: AZ2810 basic data (spec image on the product page). Retrieved Oct 19, 2026.
4. Axisflying: AZ2810 1300KV test data on GF7037 and GF7535 props (image on the product page). Each row's voltage is as measured; the table's voltage is its 10% row.. Retrieved Oct 19, 2026.
5. Axisflying: AZ2810-V1 basic data, 4~6S (spec image on Axisflying's AZ2810-V1 page, https://www.axisflying.com/products/az2810-v1, the same motor's earlier listing, awaiting restock). Retrieved Oct 19, 2026.
6. Axisflying: AZ2810 feature image ('Multi-speed RPM adapts to 7-8 inch FPV', on the product page). Retrieved Oct 19, 2026.
7. Axisflying: AZ2810 packing list (image on the product page). Retrieved Oct 19, 2026.

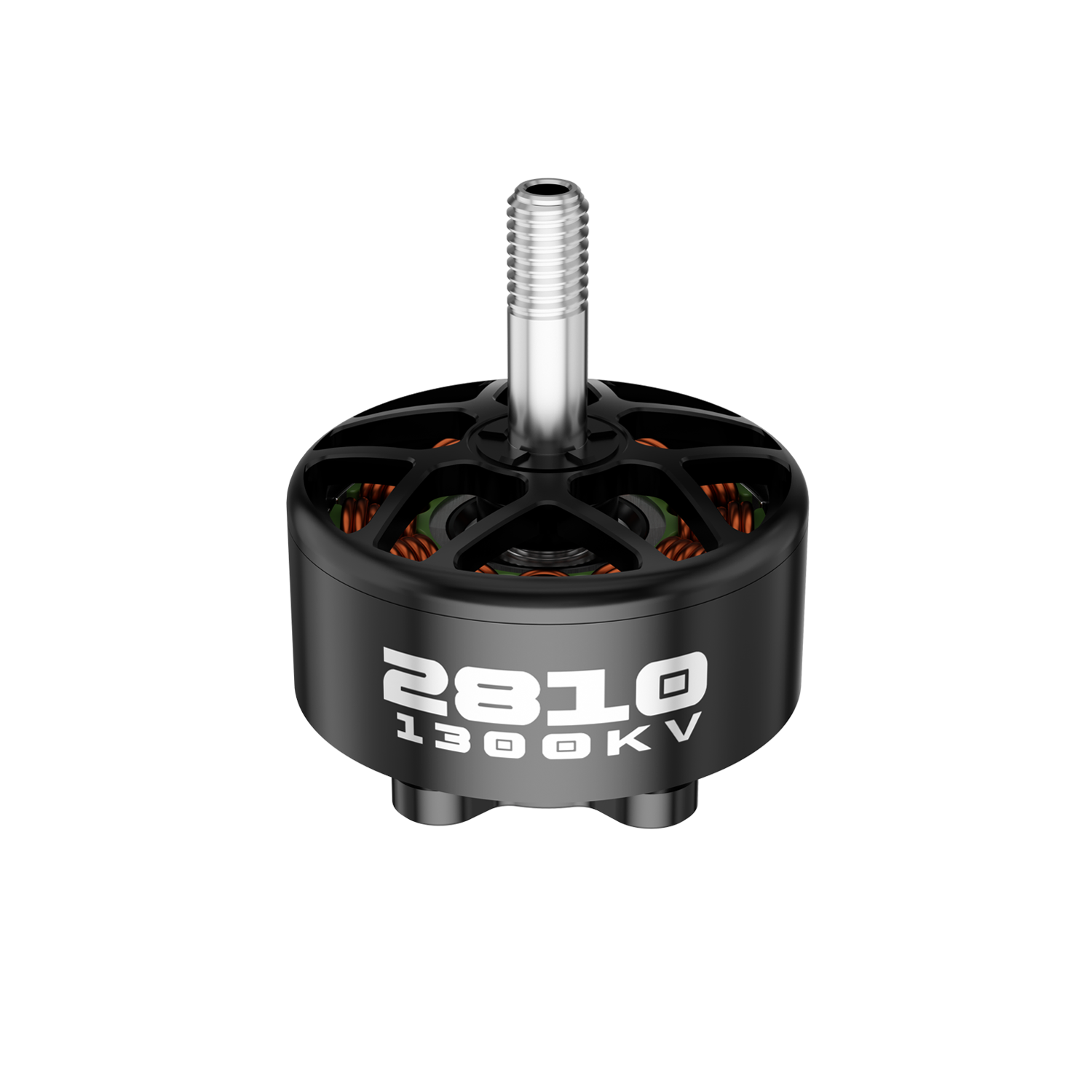

8. Axisflying: AZ2810 1300KV main product photo, used for finish. Retrieved Oct 19, 2026.
