Axisflying AF310 3010

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $32.90

• For X8 cinelifters

  Axisflying designed the AF310 to lift heavy payloads on X8 cinelifters, and says it gives more torque, power and efficiency than a 2810 and 30% more flight time than a 28xx-size motor.

  Source: Axisflying product page, Axisflying feature image

• Two KVs

  1010KV mainly for 8- and 9-inch props and 1210KV for 7-inch, both on 6S, at the same price.

  Source: Axisflying product page

• Bearing seats

  Axisflying's IPS3 design places the bearings for protection from dust and water.

  Source: Axisflying bearing image

• Bench numbers

  On a GF8045 three-blade at full throttle: 3021 g at 60.18 A (1210KV) and 2580 g at 40.73 A (1010KV).

  Source: Axisflying test data

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

60.18 A at full throttle for the 1210KV on a GF8045 three-blade; 40.73 A for the 1010KV. (Axisflying test data)

Props

Axisflying's test props are GF7040 and GF8045 three-blades: 7-inch for the 1210KV, 8- and 9-inch for the 1010KV. (Axisflying product page, Axisflying test data)

Battery

4S–6S, mainly 6S; the bench data starts at about 25 V. (Axisflying product page, Axisflying drawing and specs, Axisflying test data)

Frame

Four M3 screws on a 19 mm circle; four M3×8 screws come in the box. (Axisflying product page, Axisflying drawing and specs)

Where to buy

• Axisflyingthe maker's store; same price for both KVs
  $32.90seen Oct 19, 2026
  Visit
• NewBeeDrone1010KV or 1210KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

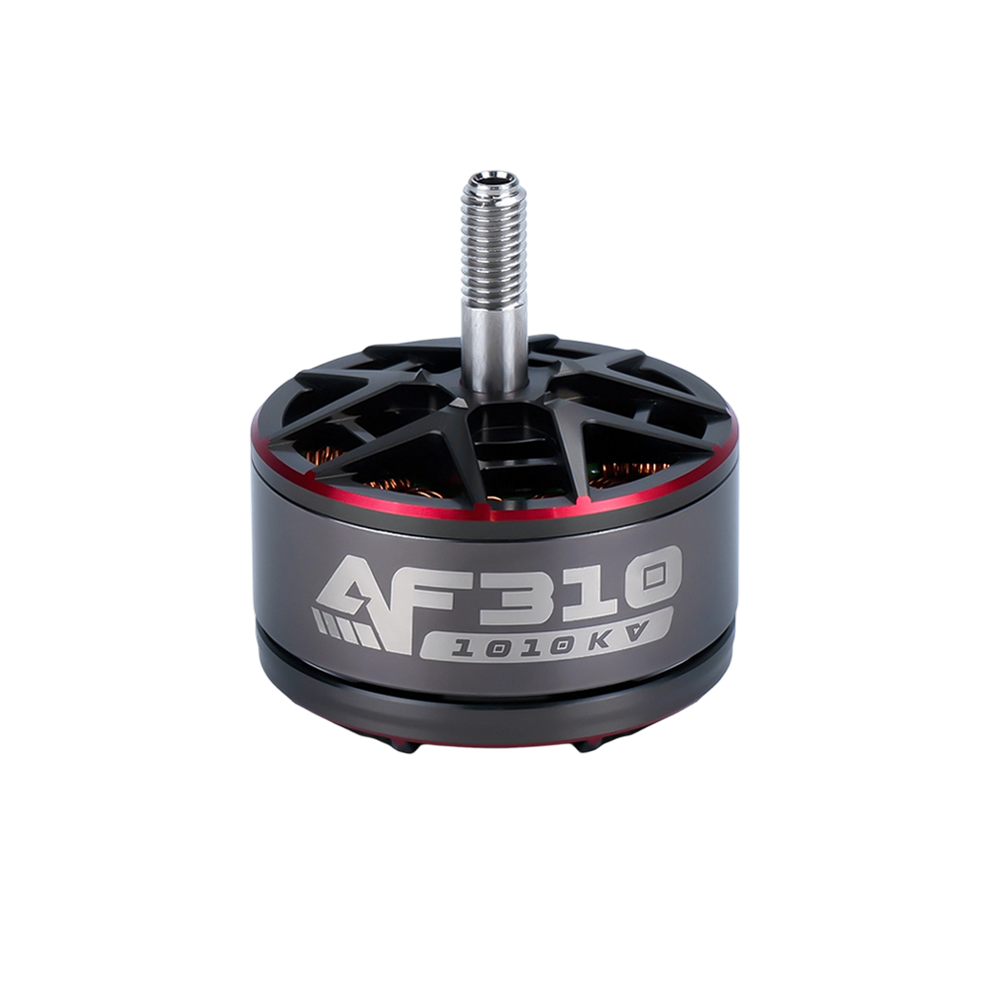

• Bell. Gunmetal grey with red rings at its top and bottom edges, and a spoked top. (Axisflying product photo)
• Shaft. 5 mm with an M5 thread, standing 16 mm above the motor; an M3×4 screw locks it. (Axisflying product page, Axisflying drawing and specs)
• Stator. 30 × 10 mm, 12 slots, with 14 N52H arc magnets in the bell. (Axisflying product page, Axisflying drawing and specs)
• Bearings. Seated for dust and water protection, which Axisflying calls IPS3. (Axisflying bearing image)
• Leads. 18 AWG silicone wire, 350 mm. (Axisflying product page, Axisflying drawing and specs)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1010KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 30 × 10 mm stator, 36.4 mm bell, 25.55 mm height, 5 mm shaft, 19 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor AF310 4-6s (product page). Retrieved Oct 19, 2026.
2. Axisflying: AF310 drawing and spec tables for 1010KV and 1210KV (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: AF310 test data, 1010KV and 1210KV on GF7040 and GF8045 three-blade props (image on the product page). Each row's voltage is as measured; the table's voltage is its 40% row. The rpm column is left out (see modelNotes).. Retrieved Oct 19, 2026.
4. Axisflying: AF310 feature images ('7-9 inch', 'specially designed for X8 professional cinematic FPV drones', on the product page). Retrieved Oct 19, 2026.
5. Axisflying: AF310 bearing image ('IPS3' dustproof and waterproof bearing placement, on the product page). Retrieved Oct 19, 2026.
6. Axisflying: AF310 1010KV main product photo, used for finish. Retrieved Oct 19, 2026.
