Axisflying AF2406

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $26.90

• Freestyle with a GoPro

  Axisflying made the AF2406 for 5-inch freestyle and bando with a GoPro, aiming at quicker throttle response and more low-end torque.

  Source: Axisflying product page

• Larger core

  Axisflying says the 2406 core has more magnetic flux than a 2207 or 2306.

  Source: Axisflying feature image

• Materials

  A 7075 aluminium bell with a multi-spoke top, NMB bearings and enamelled wire rated for 240 °C.

  Source: Axisflying product page, Axisflying feature image

• Bench numbers

  On a GF 51466 V2 at about 23.5 V: 523 g at 10.47 A at half throttle, and 1437 g at 48.52 A and 1141.71 W at full throttle.

  Source: Axisflying test data

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

48.52 A at full throttle on a GF 51466 V2 at about 23.5 V; 45.34 A on a GF 51366 V3. (Axisflying test data)

Props

Axisflying recommends and tested the GF 51366 V3, GF 51466 V2 and HQ P3.5; the 51466 V2 pulls 1437 g at full throttle, the HQ P3.5 1396 g and the 51366 V3 1311 g. (Axisflying product page, Axisflying test data)

Battery

6S. (Axisflying drawing and specs)

Frame

Four M3 screws on a 16 mm circle. (Axisflying drawing and specs)

Where to buy

• Axisflyingthe maker's store; also sold as a set of four for $100.00
  $26.90seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

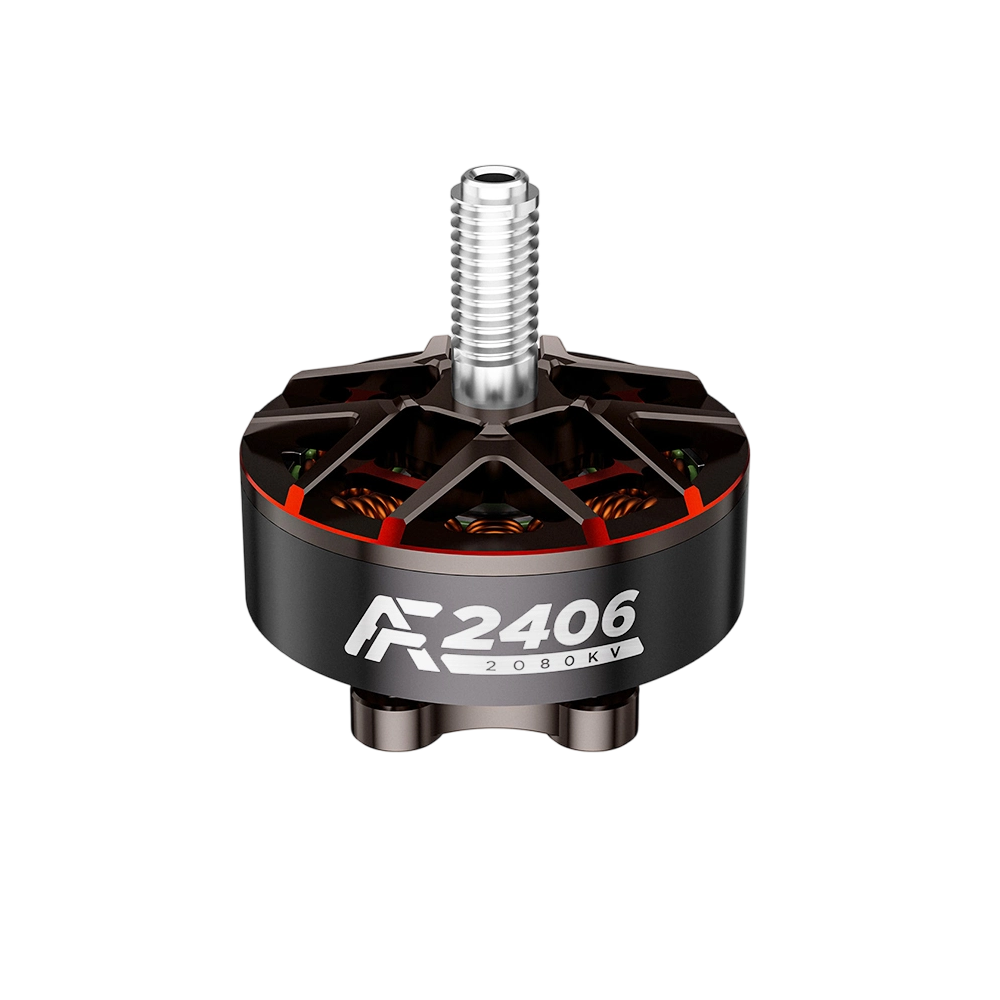

• Bell. 7075 aluminium, dark grey, with a bronze spoked top cut with red-orange edges. (Axisflying feature image, Axisflying product photo)
• Shaft. 5 mm with an M5 thread, 10 mm of it threaded, standing 13 mm above the bell. (Axisflying drawing and specs)
• Stator. 24 × 6 mm, 12 slots, with 14 magnet poles in the bell. (Axisflying product page, Axisflying drawing and specs)
• Bearings. NMB. (Axisflying feature image)
• Leads. 20 AWG black silicone wire, 150 mm. (Axisflying product page, Axisflying drawing and specs)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 2080KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 24 × 6 mm stator, 29.5 mm bell, 19.4 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor AF2406 6s (product page). Retrieved Oct 19, 2026.
2. Axisflying: AF2406 drawing and specification (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: AF2406 2080KV testing data on GF 51366 V3, GF 51466 V2 and HQ P3.5 props (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row. Temperatures are inside the motor, with 36 °C ambient.. Retrieved Oct 19, 2026.
4. Axisflying: AF2406 feature image (7075 aluminium, core, 240 °C wire, NMB bearings; on the product page). Retrieved Oct 19, 2026.
5. Axisflying: AF2406 product list (image on the product page). Retrieved Oct 19, 2026.
6. Axisflying: AF2406 2080KV main product photo, used for finish. Retrieved Oct 19, 2026.
