Axisflying AF2207.5

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $25.50

• Two KVs, two styles

  Axisflying pitches the 1860KV for smooth flow and freestyle and the 1960KV for juicy and sbang flying.

  Source: Axisflying KV image

• Materials

  A 7075 aluminium bell with a multi-spoke top, arc magnets, NMB bearings and enamelled wire rated for 240 °C.

  Source: Axisflying feature image

• Bench numbers

  On a GF 51466 V2 at about 23.6 V, at full throttle: 1388 g at 42.81 A (1960KV) and 1338 g at 39.85 A (1860KV).

  Source: Axisflying test data (1860KV), Axisflying test data (1960KV)

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

Full-throttle currents on Axisflying's 6S bench run from 33.65 A (1860KV on an HQ MCK) to 42.81 A (1960KV on a GF 51466 V2). (Axisflying test data (1860KV), Axisflying test data (1960KV))

Props

Axisflying tested seven props. On the 1960KV at full throttle the GF 51466 V2 pulls 1388 g, the GF 51366 V3 1234 g, the HQ J37 1178 g and the HQ J40 1041 g; the motor ran at 102–108 °C inside on all four. (Axisflying test data (1960KV))

Battery

6S for both KVs. (Axisflying drawing and specs)

Frame

Four M3 screws on a 16 mm circle. (Axisflying drawing and specs)

Where to buy

• Axisflyingthe maker's store; same price for both KVs
  $25.50seen Oct 19, 2026
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

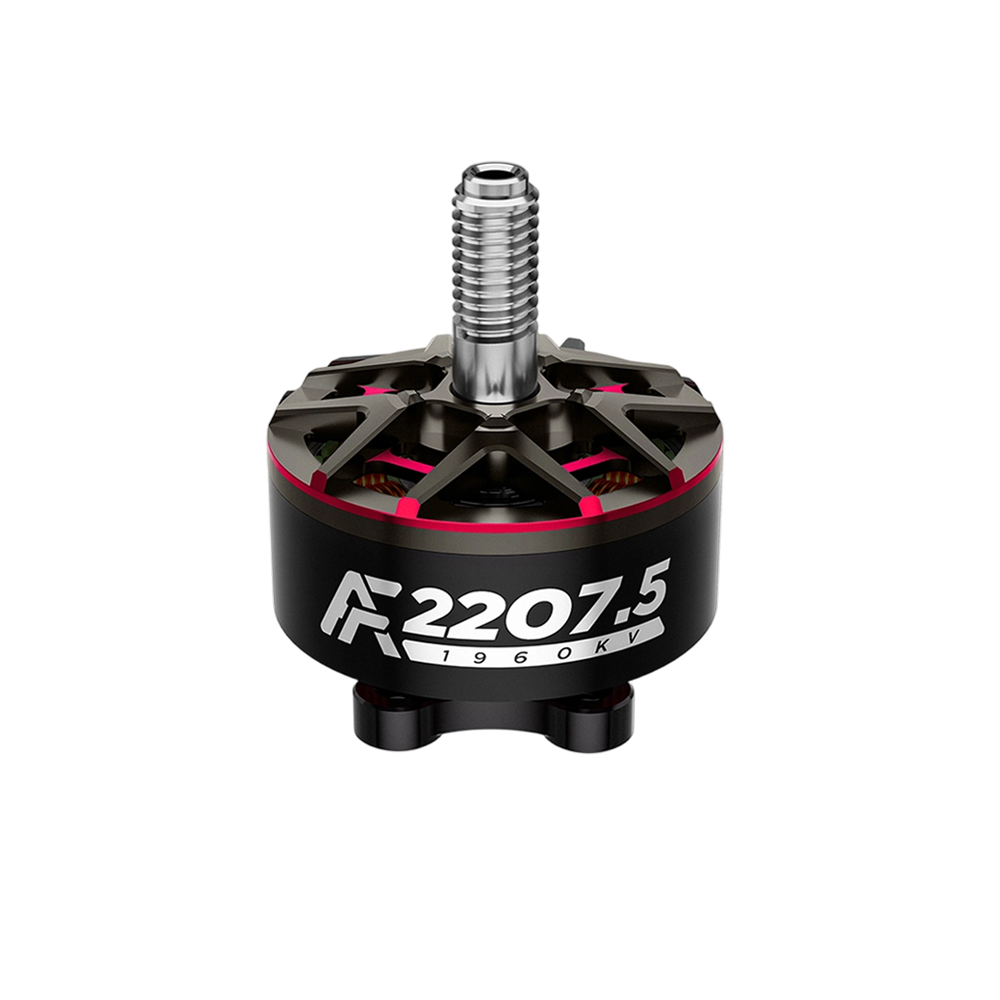

• Bell. 7075 aluminium, black, with a gunmetal spoked top cut with pink-red edges. (Axisflying feature image, Axisflying product photo)
• Shaft. 5 mm with an M5 thread, 9 mm of it threaded, standing 13 mm above the bell. (Axisflying drawing and specs)
• Stator. 22 × 7.5 mm, 12 slots, with 14 arc magnets in the bell. (Axisflying product page, Axisflying drawing and specs, Axisflying feature image)
• Bearings. NMB. (Axisflying feature image)
• Leads. 20 AWG black silicone wire, 150 mm. (Axisflying drawing and specs)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1960KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 22 × 7.5 mm stator, 27 mm bell, 20.45 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor AF2207.5 6S (product page). Retrieved Oct 19, 2026.
2. Axisflying: AF2207.5 drawing and specification for 1860KV and 1960KV (image on the product page). Retrieved Oct 19, 2026.
3. Axisflying: AF2207.5 1860KV testing data on GF 51466 V2, HQ MCK and HQ P3.5 props (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row. Temperatures are inside the motor, with 37 °C ambient.. Retrieved Oct 19, 2026.
4. Axisflying: AF2207.5 1960KV testing data on GF 51366 V3, GF 51466 V2, HQ J37 and HQ J40 props (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row. Temperatures are inside the motor, with 37 °C ambient.. Retrieved Oct 19, 2026.
5. Axisflying: AF2207.5 feature image (7075 aluminium, arc magnets, 240 °C wire, NMB bearings; on the product page). Retrieved Oct 19, 2026.
6. Axisflying: AF2207.5 KV comparison image (1860KV and 1960KV flying styles; on the product page). Retrieved Oct 19, 2026.
7. Axisflying: AF2207.5 product list (image on the product page). Retrieved Oct 19, 2026.
8. Axisflying: AF2207.5 1960KV main product photo, used for finish. Retrieved Oct 19, 2026.
