Axisflying AE2207 V2

What it pulls

Axisflying’s own bench test, one line per prop. Drag across the chart to move the throttle; the model above follows.

What you get for $15.90

• Under $16

  Axisflying's AE series is its lower-cost line; the AE2207 V2 sells for $15.90 in every KV.

  Source: Axisflying product page

• NMB bearings

  Axisflying fits NMB bearings and says the reworked magnetic circuit suits continuous freestyle such as juicy, flow and bando flying.

  Source: Axisflying feature images

• Ribbed top

  Axisflying says the new ribs on the bell's top make it more impact resistant, and the motor is lower than the first version.

  Source: Axisflying feature images

• Bench numbers

  On a 51466 at about 24 V: 1703 g at 38.65 A for the 1960KV, 1676 g for the 1860KV, 1634 g for the 1750KV.

  Source: Axisflying drawing and specs

What to pair it with

Our reading of Axisflying’s numbers, so your build matches what the motor was tested with.

ESC

Peak currents on Axisflying's bench run from 32.46 A (1750KV) to 47.61 A (2050KV); the 1960KV peaks at 38.65 A. (Axisflying drawing and specs)

Props

Axisflying tested 51466 and BB4943.5 props on every KV, and BB39 on the 2050KV. The 51466 pulls more and runs hotter: 94 °C against 45.7 °C on the 1960KV. (Axisflying test data (2100KV, 2050KV), Axisflying test data (1960KV, 1860KV), Axisflying test data (1750KV))

Battery

6S for every KV. (Axisflying drawing and specs)

Frame

Four M3 screws on a 16 mm circle; four M3×8 screws and an M5 lock nut come in the box. (Axisflying product page, Axisflying drawing and specs)

Where to buy

• Axisflyingthe maker's store; same price for every KV
  $15.90seen Oct 19, 2026
  Visit
• NewBeeDrone
  price on the store’s page
  Visit
• GetFPV1860KV or 1960KV
  price on the store’s page
  Visit

Plain links, not affiliate links. Prices change; the store’s page has the current one.

Full specs

Bench data

Redrawn from Axisflying’s test reports. Thrust is static pull on a bench, more than you get in flight. Power is volts × amps; efficiency is thrust divided by power.

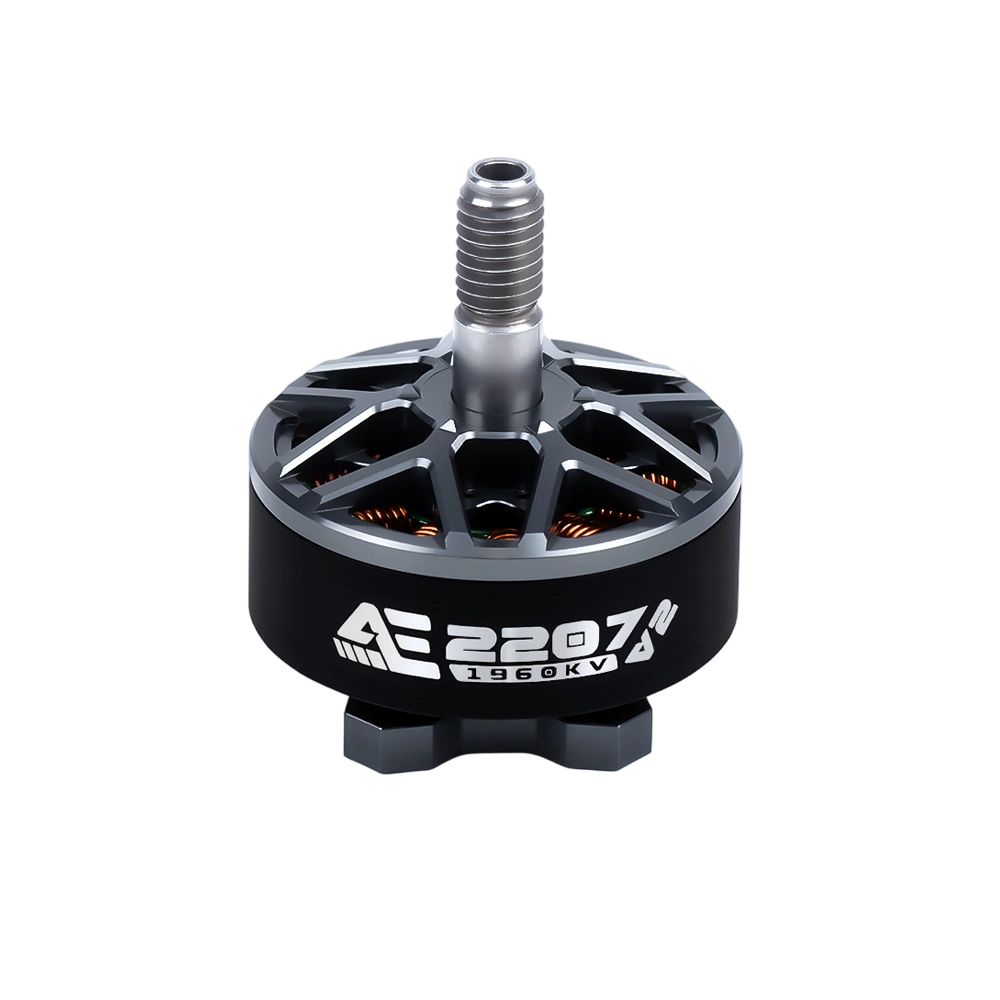

Inside the motor

A brushless outrunner: the coils stand still in the middle and the magnets spin around them. From the top down:

• Bell. Black, with a gunmetal top cut into ribs that Axisflying says improve impact resistance. (Axisflying feature images)
• Shaft. 5 mm with an M5 thread, standing 13.8 mm above the bell; a small M3×4 screw locks it. (Axisflying drawing and specs)
• Bearings. NMB bearings. (Axisflying feature images)
• Stator. 22 × 7 mm, 12 slots, with 14 magnet poles in the bell. (Axisflying product page)
• Leads. 20 AWG silicone wire, 150 mm. (Axisflying product page)

How fast it spins

KV is the motor’s no-load speed per volt. With nothing on the shaft, the 1960KV version reaches about these speeds; a prop loads the motor and brings it down, typically to around 70–75% of these figures at full throttle.

A 14-pole rotor has 7 pole pairs, so every turn of the shaft is 7 electrical cycles, and a six-step ESC switches the phases 42 times per turn.

About the 3D model

A generic outrunner drawn from Axisflying’s published sizes: the 22 × 7 mm stator, 27.5 mm bell, 19.4 mm height, 5 mm shaft, 16 mm mounting circle and 12 teeth and 14 magnets. Anything Axisflying doesn’t publish is typical for a motor this size, and the bell’s spoked top, the base and the inside are a generic design, not this motor’s. The colours are read off the maker’s product photos. There are no logos or markings: it is our drawing, not the maker’s.

Sources

1. Axisflying: Motor AE2207 V2 6s (product page). Retrieved Oct 19, 2026.
2. Axisflying: AE2207 V2 outline drawing and spec tables for each KV (images on the product page). Retrieved Oct 19, 2026.
3. Axisflying: AE2207 V2 testing data, 2100KV and 2050KV (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row. The 2050KV tables give the motor's internal temperature with 30 °C ambient; the 2050KV's first prop is printed GF 51466, the others 51466.. Retrieved Oct 19, 2026.
4. Axisflying: AE2207 V2 testing data, 1960KV and 1860KV (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row.. Retrieved Oct 19, 2026.
5. Axisflying: AE2207 V2 testing data, 1750KV (image on the product page). Each row's voltage is as measured; the table's voltage is its 30% row.. Retrieved Oct 19, 2026.
6. Axisflying: AE2207 V2 feature images (magnetic circuit, NMB bearings, top ribs; images on the product page). Retrieved Oct 19, 2026.
7. Axisflying: AE2207 V2 1960KV main product photo, used for finish. Retrieved Oct 19, 2026.
